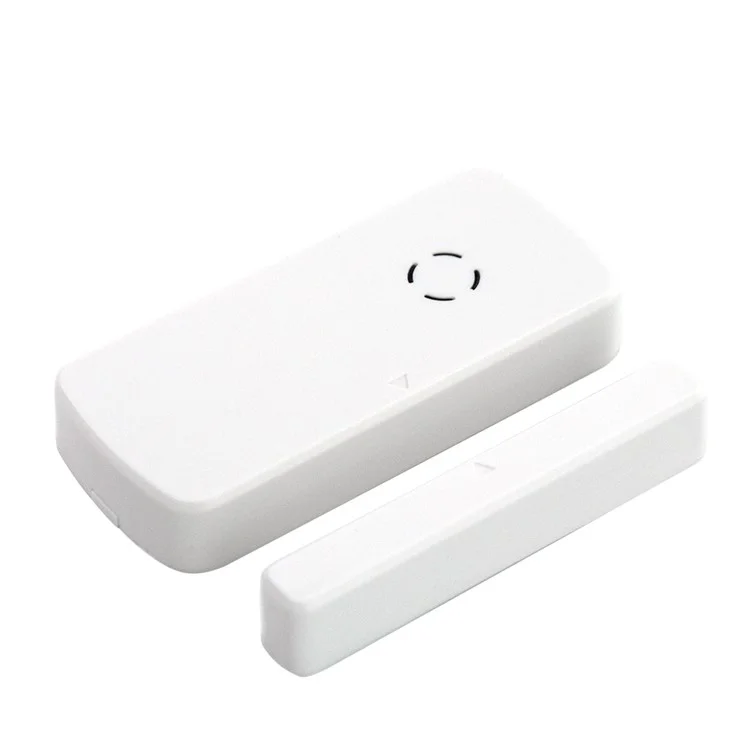

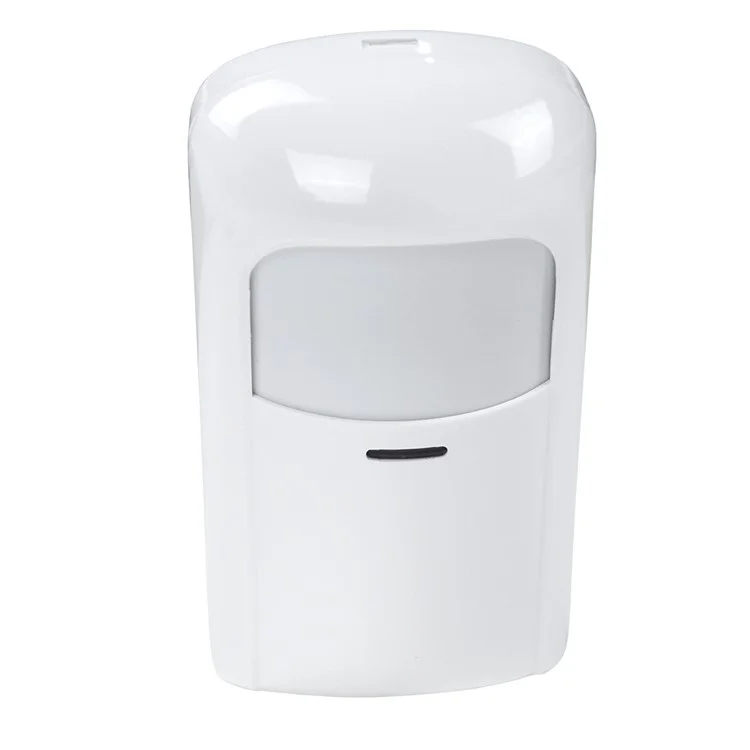

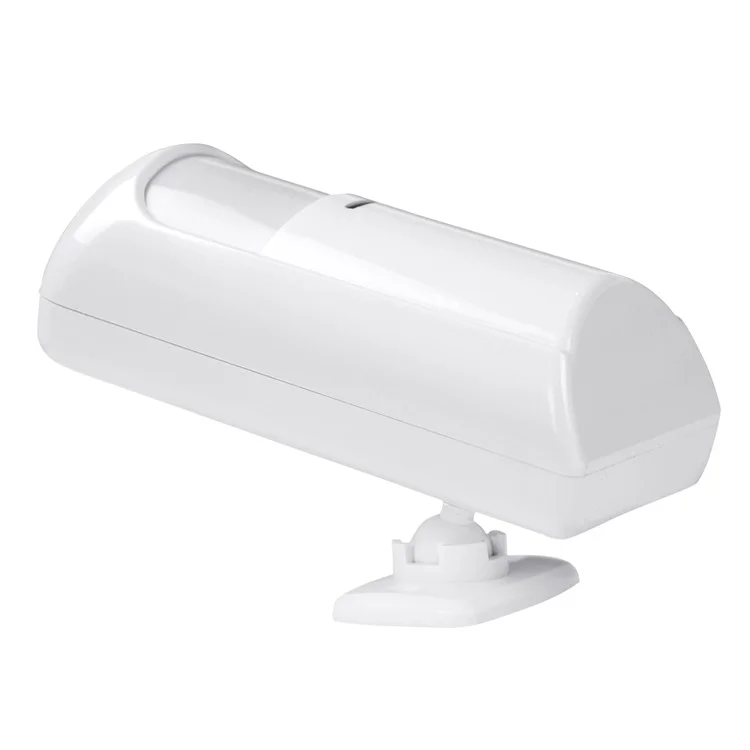

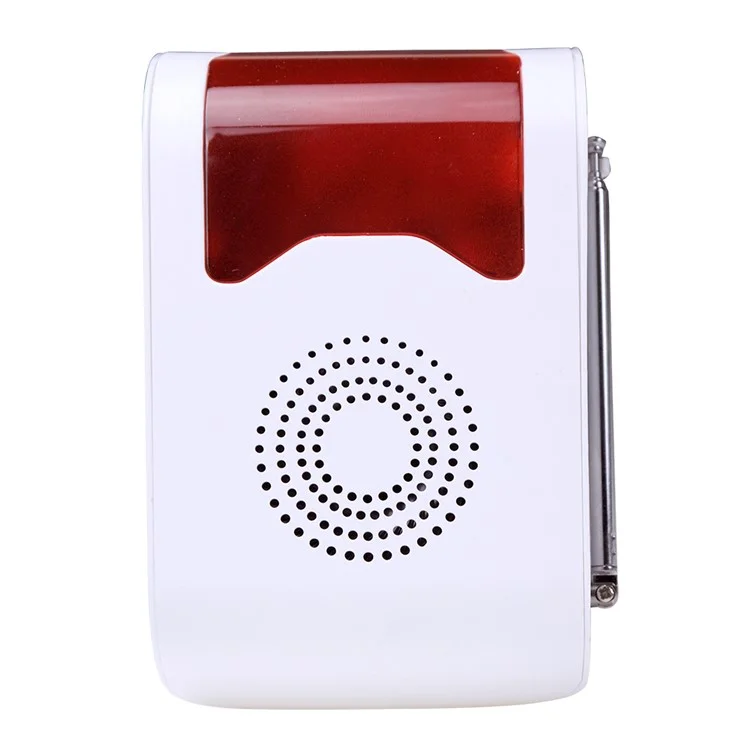

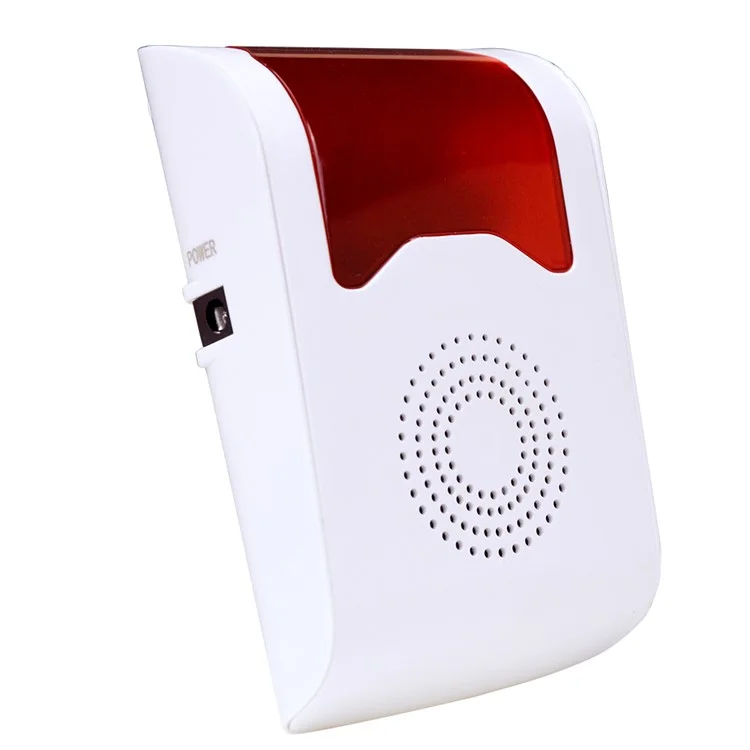

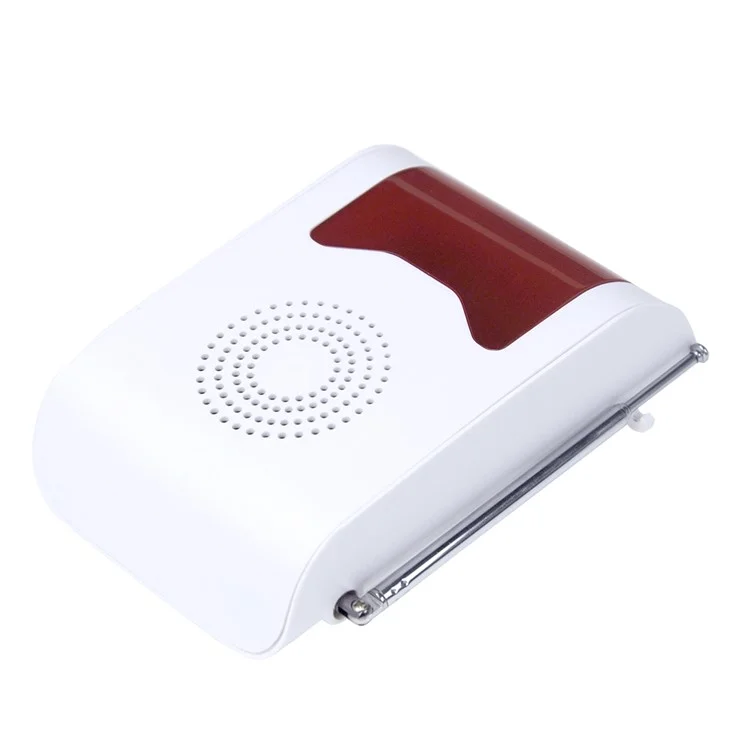

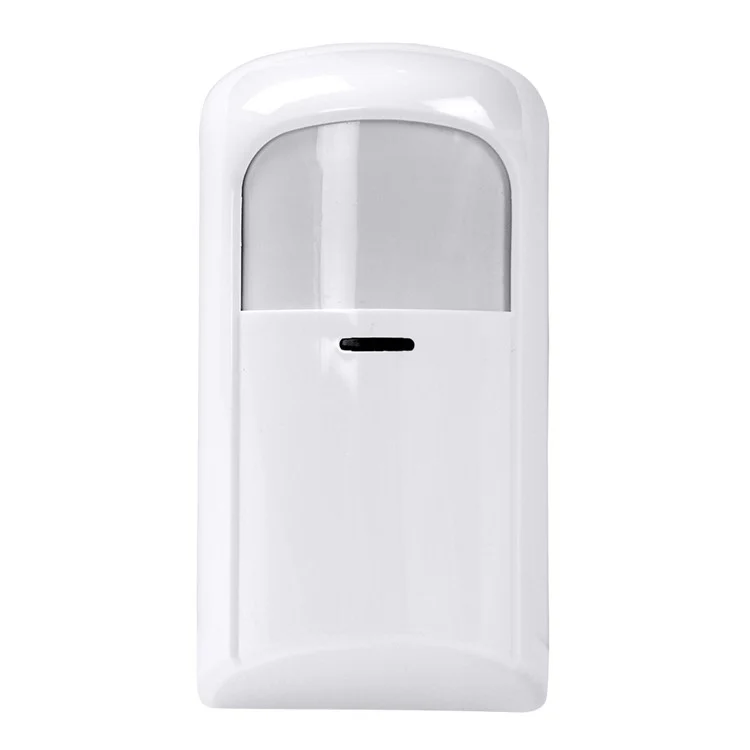

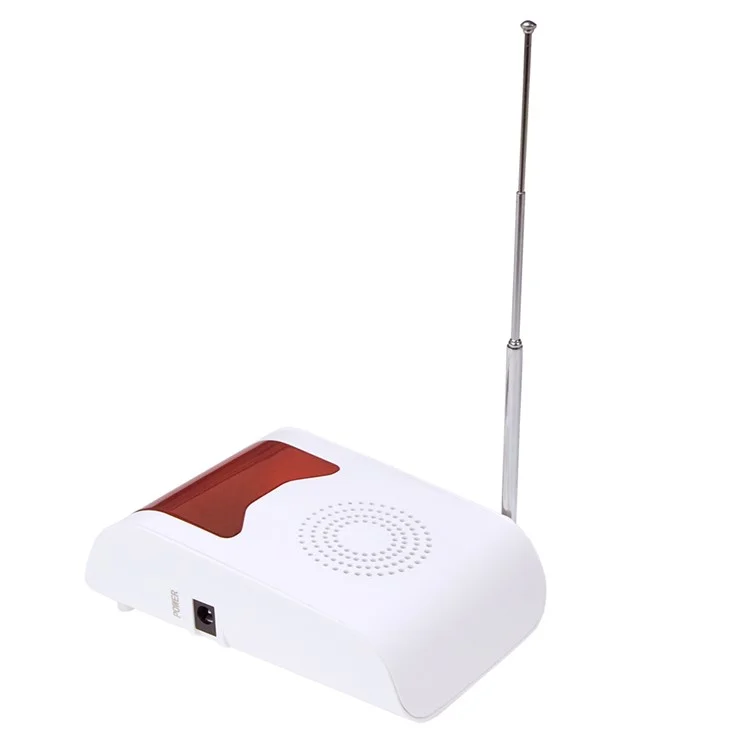

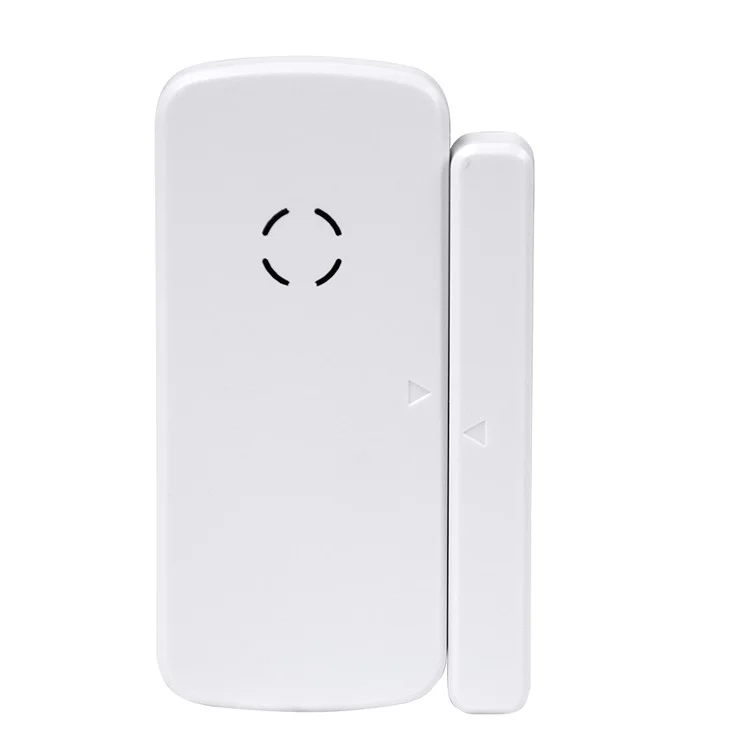

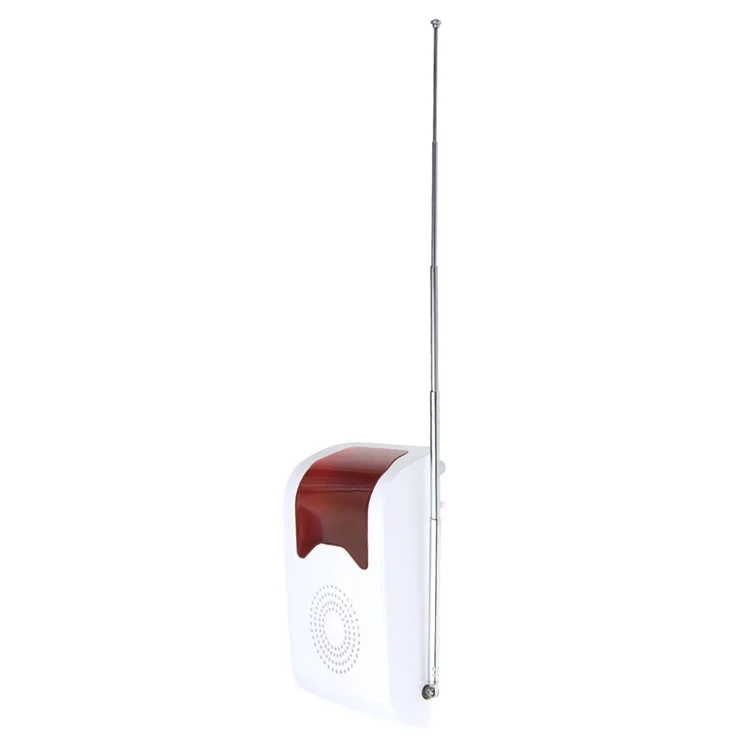

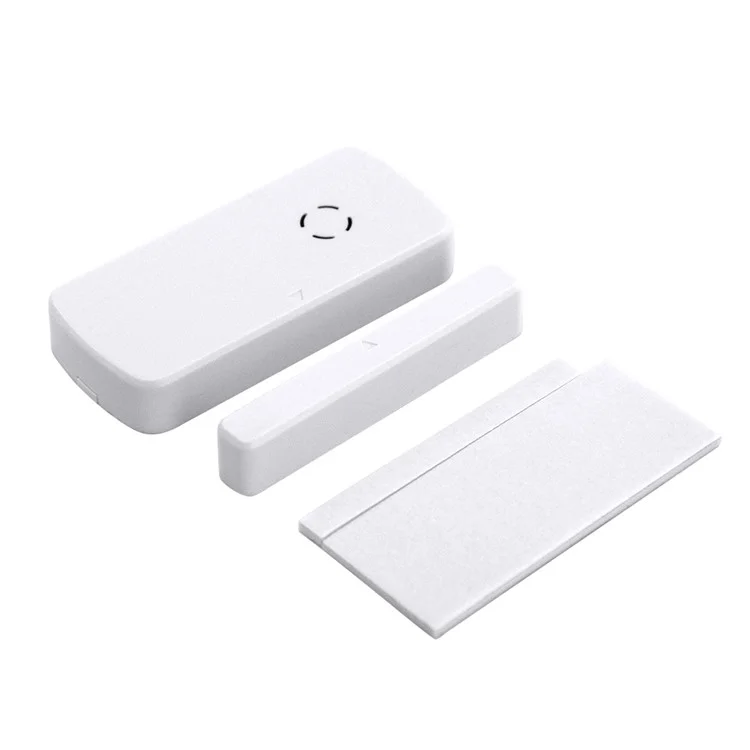

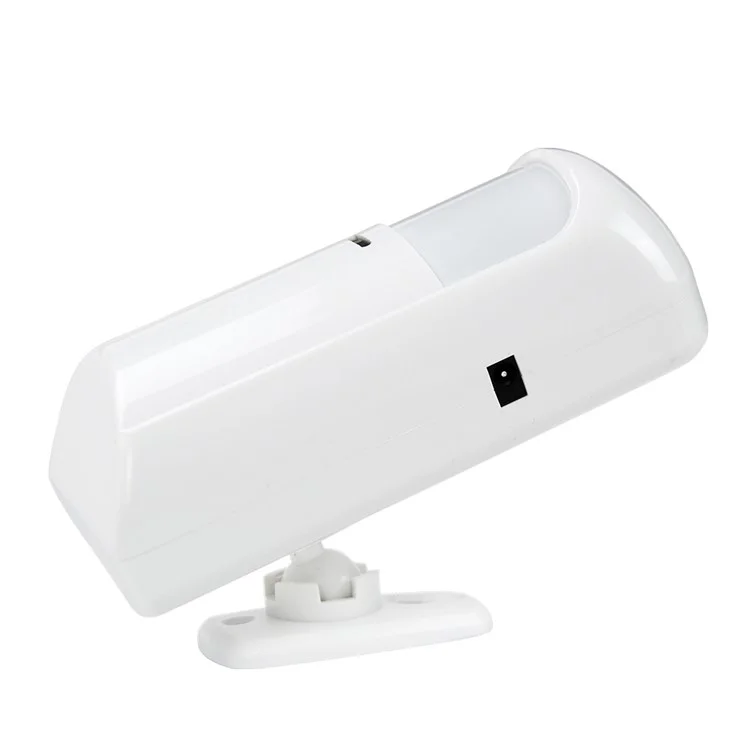

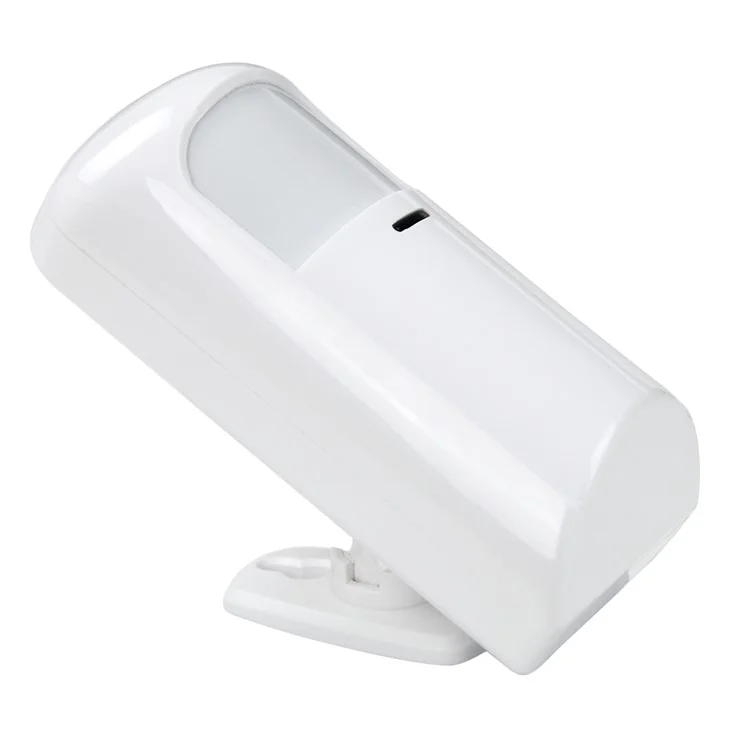

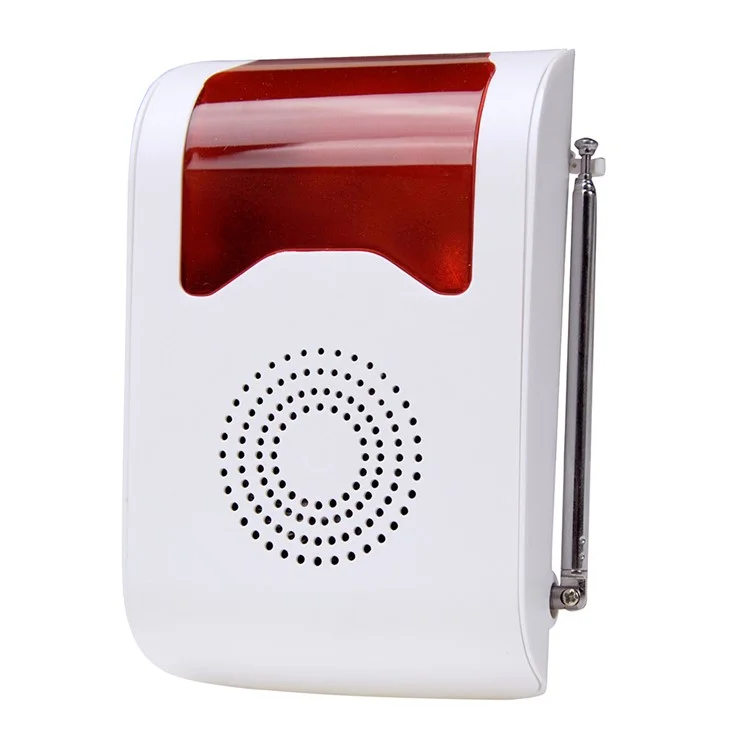

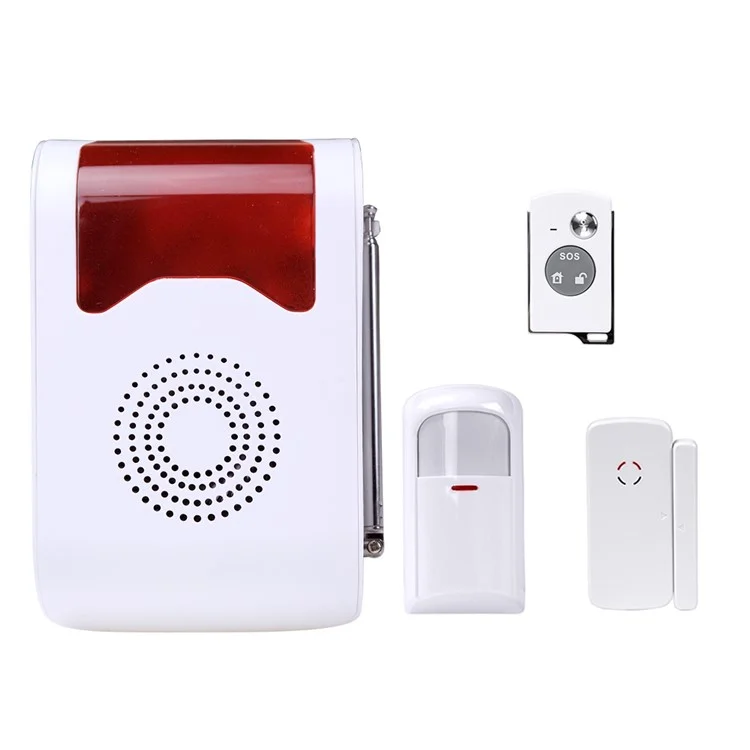

It adopts the newest wireless technology, super strong extension, no need wiring, easy to install and operate. Main panel design with voice, acousto-optic and siren all in one. The learning frequency of alarm is 433MHz/315MHz, works with various detectors which encoded with 1527, 2262. After install detectors in the defense zone, detectors will send digital encoded alarm signal once there have theft enter, then the main panel will have human voice to alarm, siren sound and light flashing. It also could be used as welcome bell. Combined with wireless detectors, it is widely used to secure the safety of home, store, factory, residential sub districts and etc.

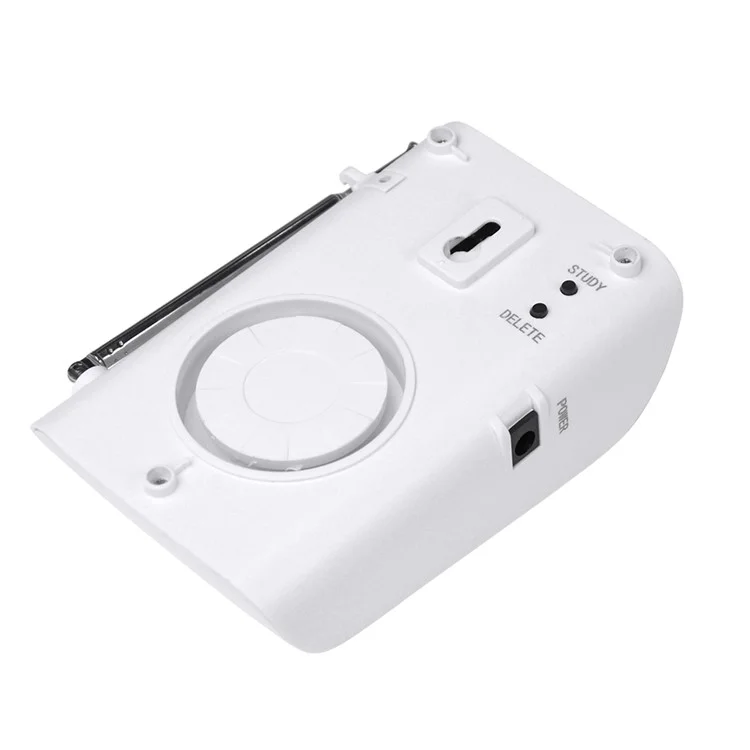

With study and delete button, easy to operate
Voice guide operate
110dB Siren sound, honorable person voice prompt
At arming state, light flashing 100 millisecond per time; at disarming state, light not flashing, at delay defense zone arming/disarming state, light flashing 1 second per time.
Sound and Light double prompt to secure

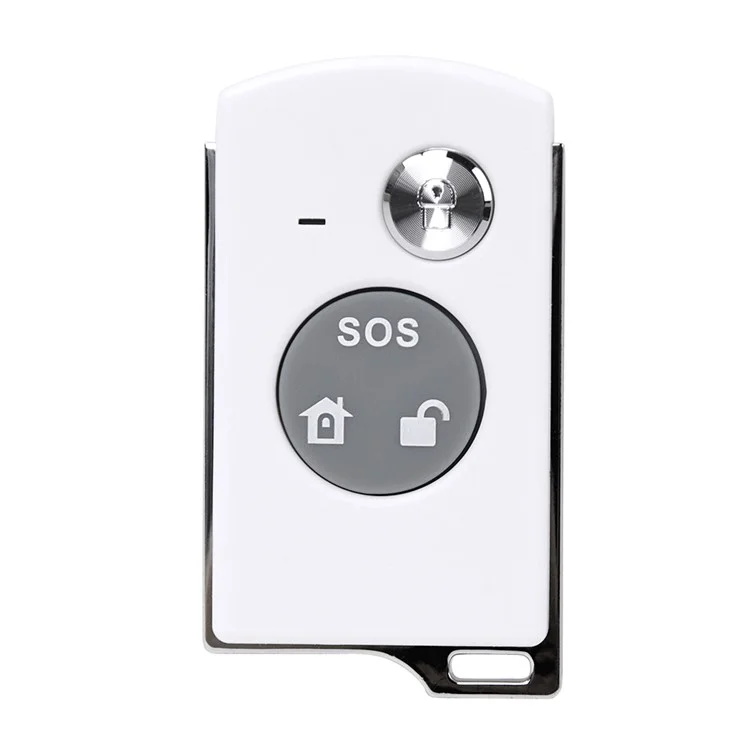

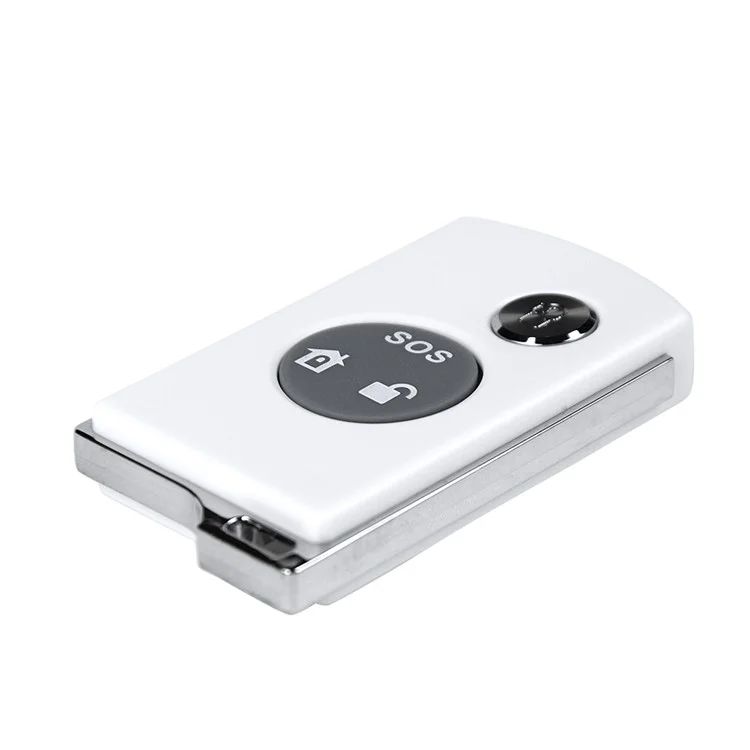

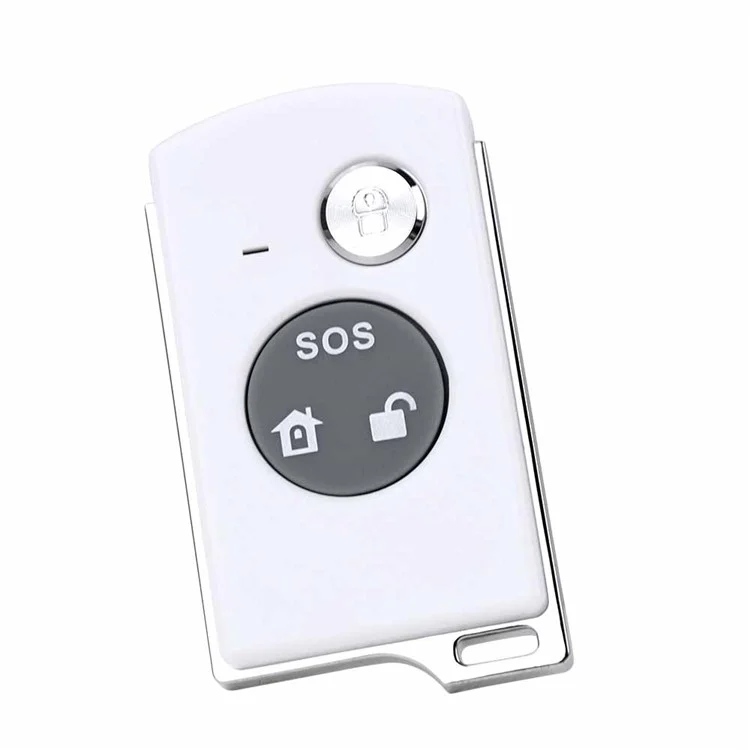

SOS, press the SOS button on remote to alarm
Remote study code, max 32 wireless remotes. Can set to: arming, stay arming, disarming, SOS
Max study 160 detectors. 5 main defense zones, each zone can study 32 detectors; data no lose when power off.
a) Away zone: detectors in this zone will trigger the alarm when set arming/ stay arming; disarming, not trigger the alarm. This apply to all area
b) Stay zone: detectors in this zone will not trigger the alarm when set stay arming will trigger the alarm; disarming not trigger the alarm. Apply to the area which has person activity
c) 24 hours zone: detectors in this zone will trigger the alarm when set arming/ stay arming /disarming. Apply to smoke detector or the area no person activity
d) Delay zone: detectors in this zone, within 10 seconds after arming (when leave home) and within 5 seconds after disarming (back home) will not trigger the alarm; stay arming, trigger the alarm; disarming, not trigger alarm. Apply to gate, corridor and outside area
e) Welcome zone: detectors in this zone will trigger the alarm when set arming/ stay arming; disarming will trigger the prompt "hello, welcome". Apply to door area
Specification:
Power supply: DC12V
Quiescent current: ≤70mA
Alarm current: ≤800mA
Wireless frequency: 433MHz, optional 315MHz optional
Wireless receiving sensitivity: -105dBm
External alarm horn sound intensity: 110dB
Working environment: -10°C ~ 80°C
Working humidity: ≤90%
Certificate: CE, FCC, RoHS
