VAP11G-300 is a professional 300M WiFi repeater/bridge. It solves the common failing of the traditional WiFi signal or WiFi products that easily drop the network, to make sure the lasting stability. It is based on IEEE 802.11N standard, and can extend WiFi network range, providing the stable transmission up to 300Mbps. It also is compatible with IEEE 802.11B and IEEE 802.11G standard.
Eco-friendly, safe, portable
Support 802.11b/g/n WiFi transmission protocol, transmission rate up to 300Mbps
Professional intelligent WiFi repeater
WiFi intelligent bridge function, Wireless switches to wired, wired switches to wireless, intelligent switch
WiFi intelligent repeater mode, supports WiFi hot spot automatic scan and WiFi hot spot memory function
Support turning off the WiFi hotspot function
Support WEB remote firmware upgrade, can get the latest firmware free
Support local WEB management, Chinese and English configuration interface
Powered via USB port, more convenient
Adopted the original creation D/A temperature compensated auto frequency control technology (TAFC), to make sure the lasting stability
Original creation VDNS virtual domain configuration technology to solve the trouble of configuration
Support connecting more than 20pcs of WiFi terminals at the same time
Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism
The transmission distance (without obstacle) reaches 100m
Specification:
Hardware Specification | |
Protocol Standard | IEEE 802.11g, IEEE 802.11b, IEEE 802.11n |
Transmission Rate | 300Mbps |

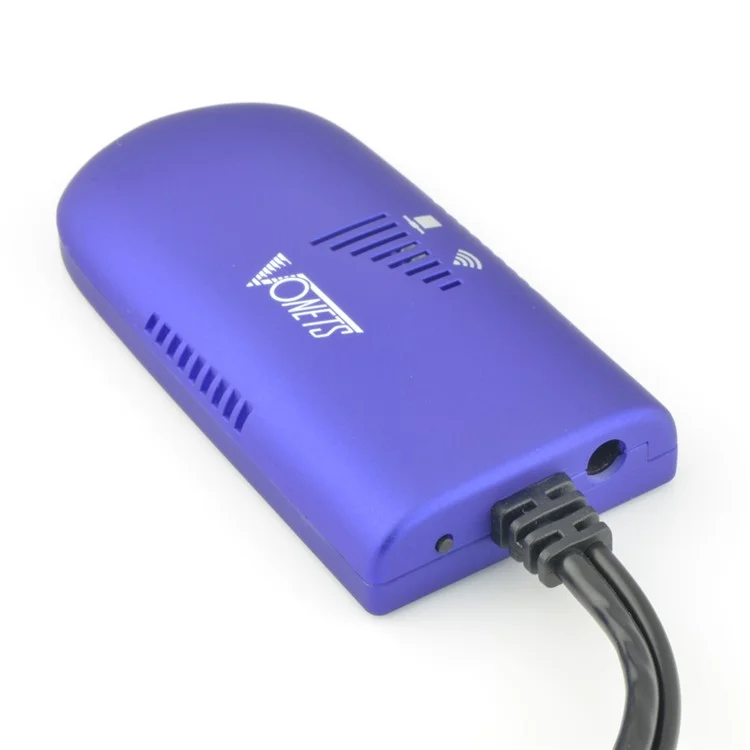

Interface | 1 x DC2.0 power hole |

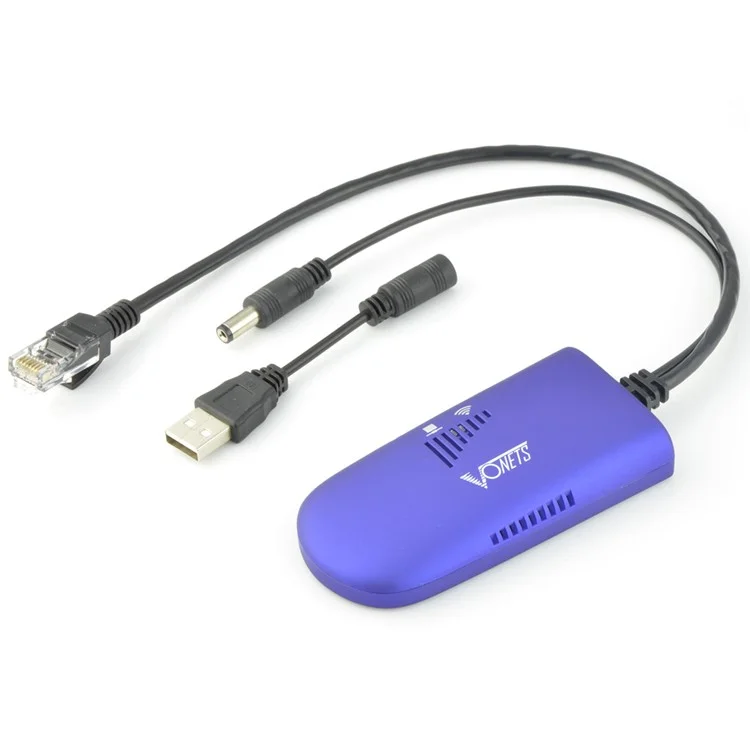

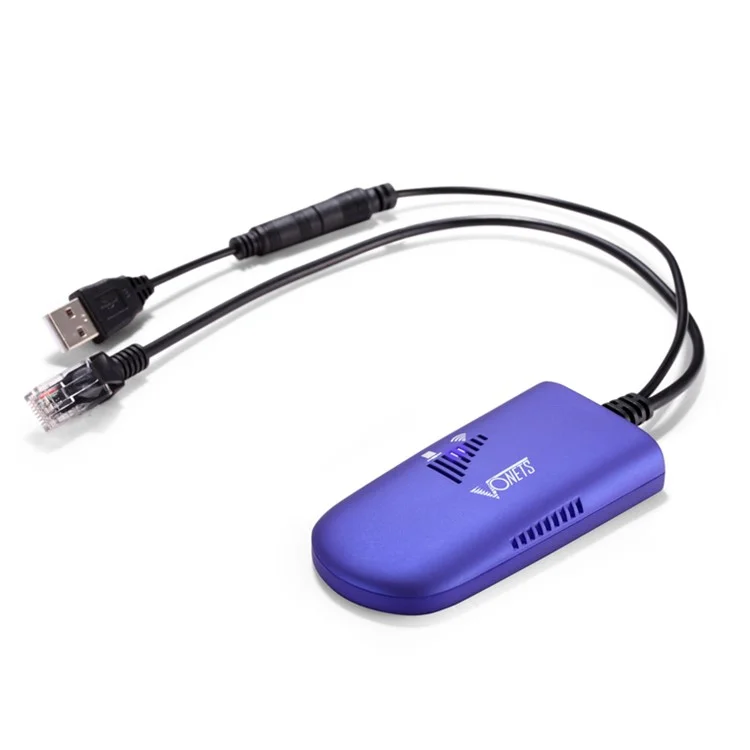

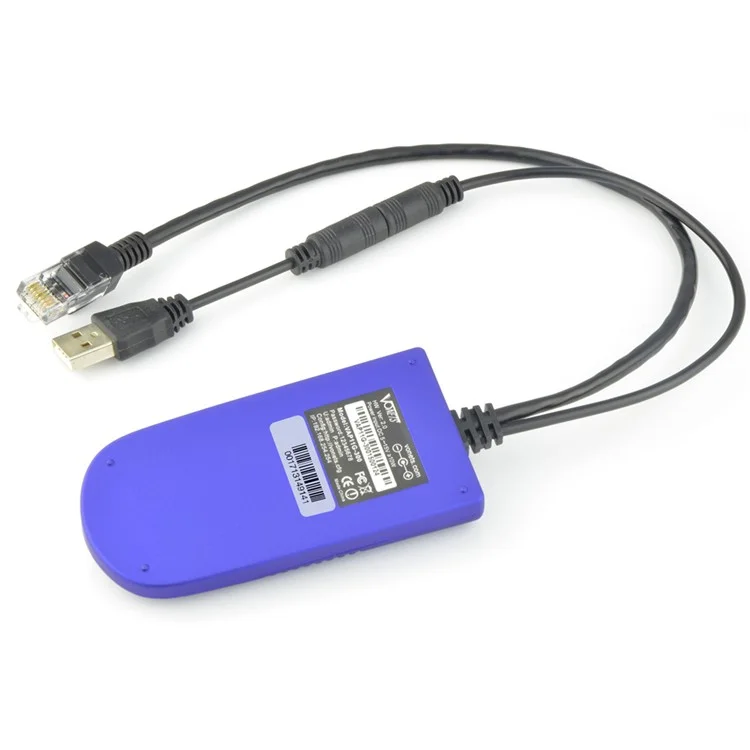

1 x Dedicated 2-in-1 power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable | |

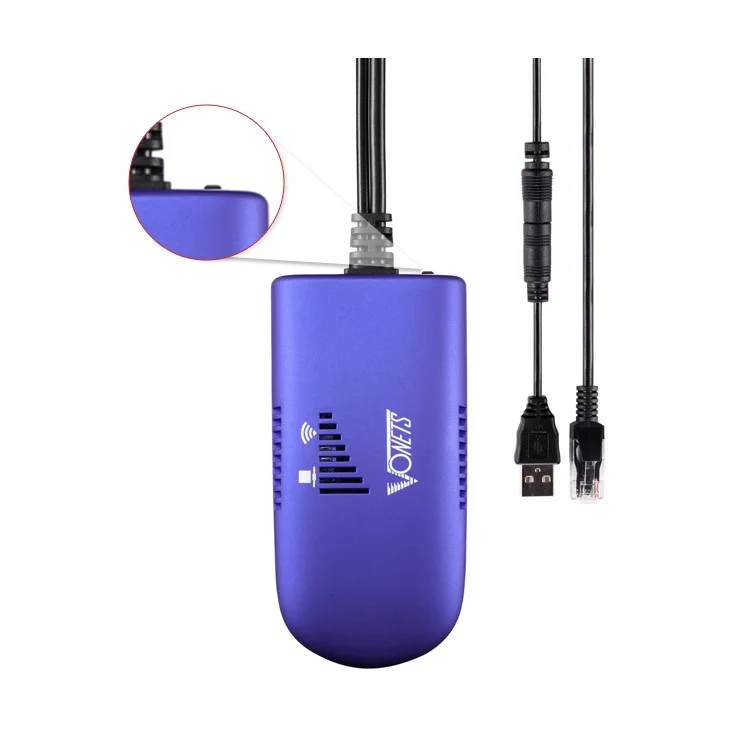

Button | Reset button (long press for 5 seconds) |
LED (Status Instruction) | WiFi state/Hot spot connection state (blue light) |
Ethernet port state (light green for success) | |
Antenna | Built-in 2pcs of smart omnidirectional 2dbm antennas |

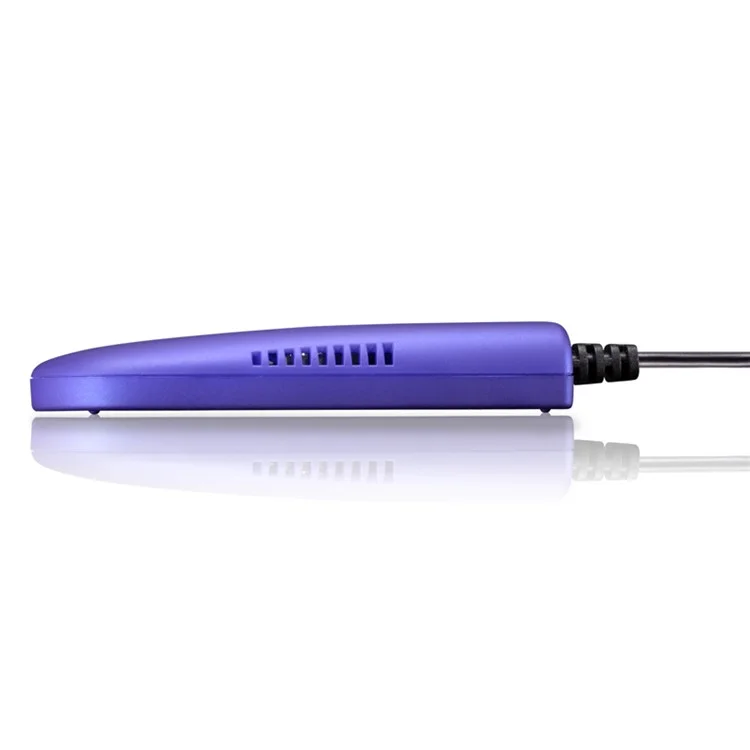

Size | 90mm x 45mm x 15mm (L x W x H) |
Wireless Related | |
Basic Function | Channel option: 1-14 |
WiFi Hot spot scans automatically | |
WiFi Hot spot memory | |
WiFi Hot spot switches | |
Working Mode | WiFi intelligent repeater mode |
Repeater mode (WiFi signal repeater), it can extend the distance of WiFi transfer | |
Wireless Security | 64/128/WEP encryption |
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism | |
System Function | Restart device |
Reset factory | |
Administrate account and password revise | |
Firmware upgrade |
