Ion air gun is an effective static elimination device, pressure air through the ion generating device of a large number of positive and negative ions to quickly blow the area in addition to static, and objects in the accumulation of electrostatic charge, while high-speed ion flow electrostatic attraction of dust blowing, and prevents its re-attract dust particles; widely used in electronic assembly, the emblem of electronics manufacturing, biological products, pharmaceuticals, injection molding, printing and other industries.

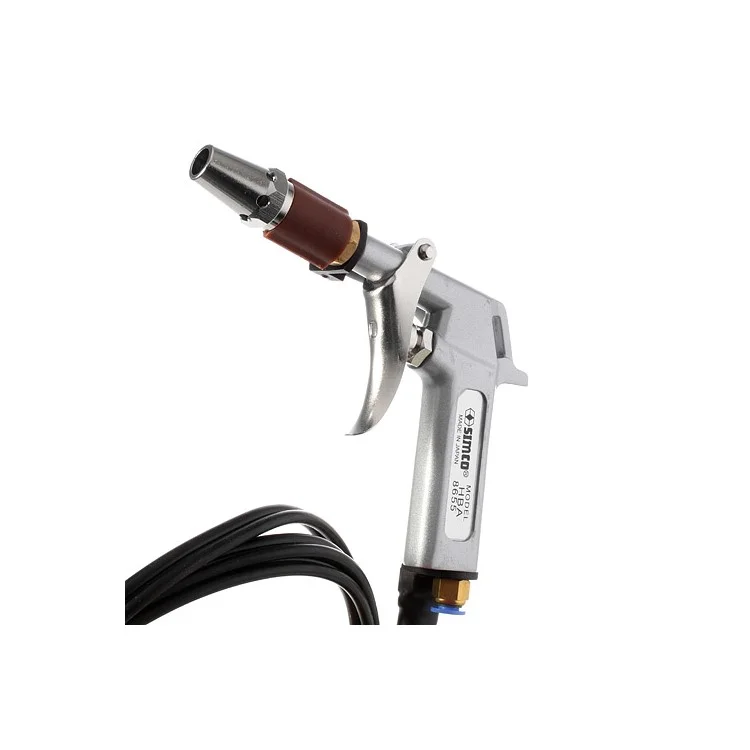

• The ionic air gun is light weight, easy to remove
• The patented technology of high voltage power supply. Secondary-side maximum short-circuit current is less than 5mA
• Accidental electrocution or short circuit or equipment human body does not produce any harm
• This is a non-OEM generic product, but good quality

• Ambient Conditions: 0~50 degree centigrade, 10~90% RH (no-condensing)
• Life Expectancy: Approx. 10,000 hours

• Construction: hot type (with current limited resistor / power unit model HBA)
• Air Supply: 0.7Mpa max

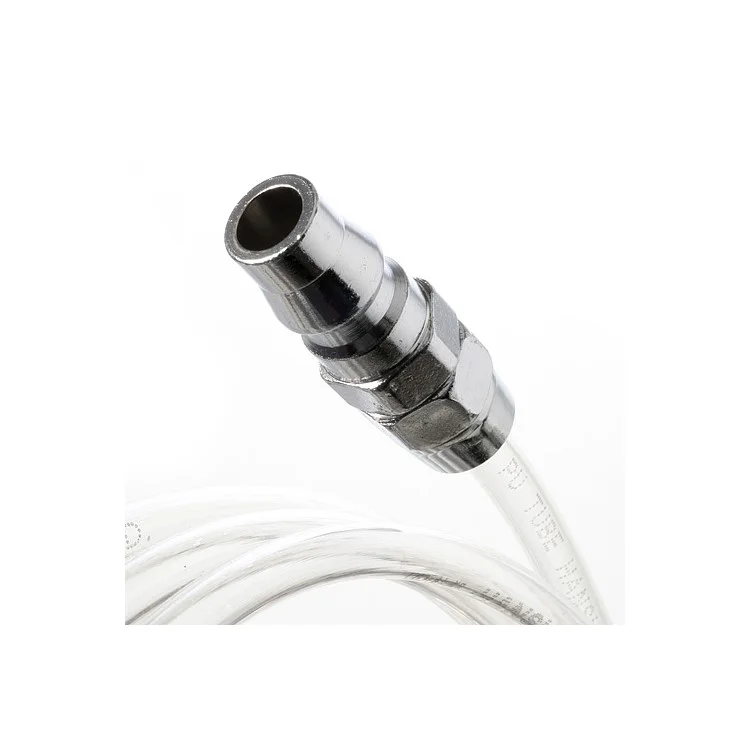

• Air Tube: O.D. Φ
• Air Consumption: 100NL/min (at 0.4MPa)
• Weight: about 500g (included a 3m cable)
• Paint: silver / gun body

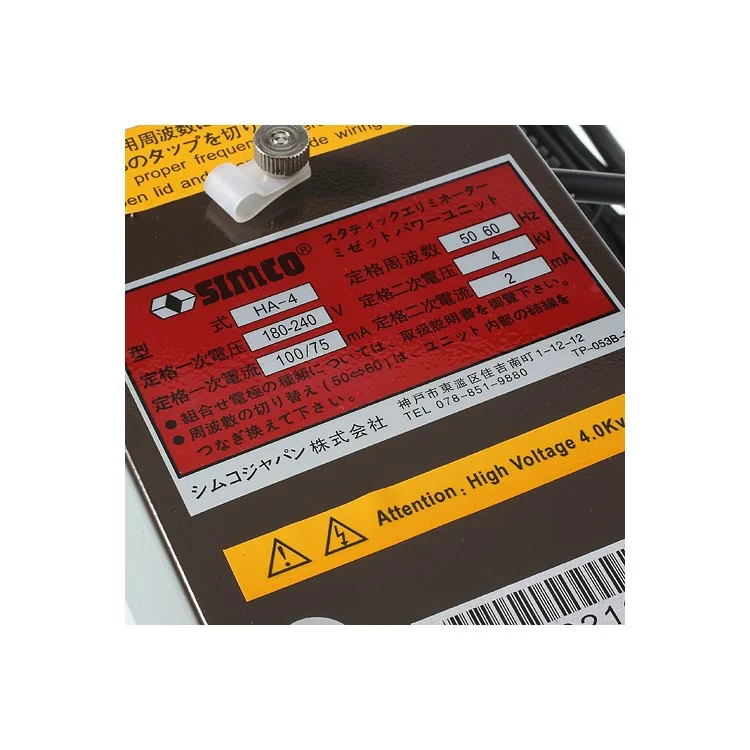

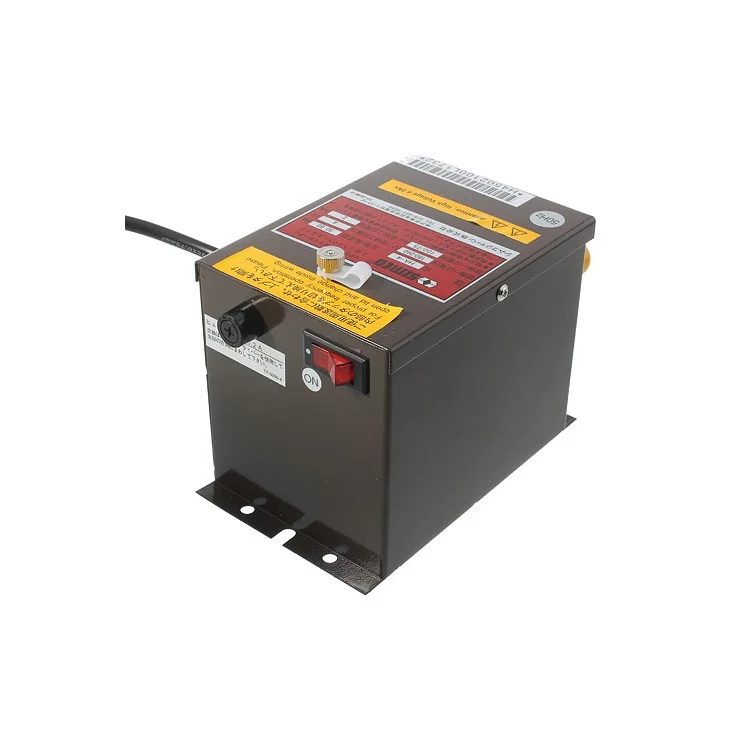

• Input Voltage: 90 ~ 120 Vac
• Supply Frequency: 50Hz or 60Hz (separate unit)
• Secondary Output Volts: 4kVac
• Sec. Short Circuit Current: 0.4mA
• VA rating: 30VA max

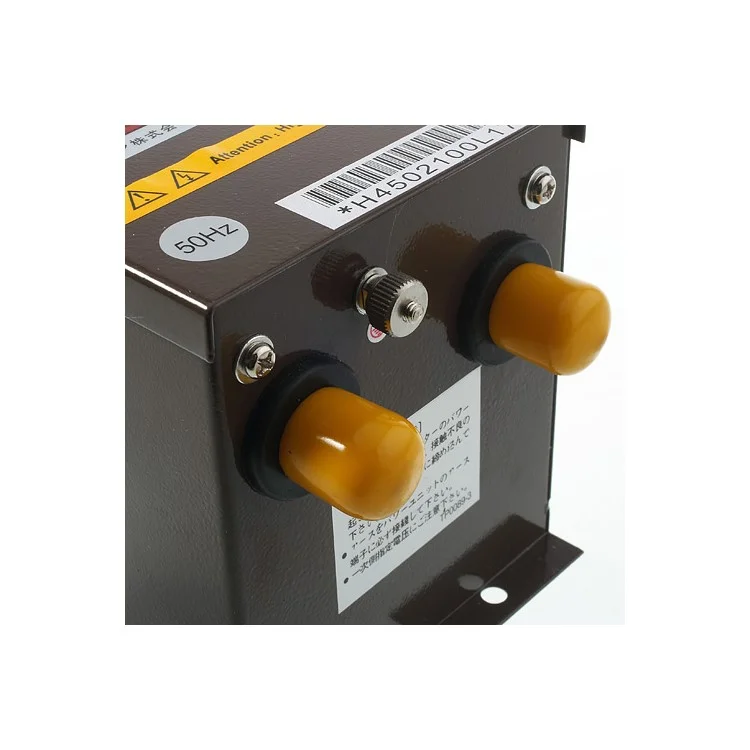

• No. of Output Terminal: 1PC

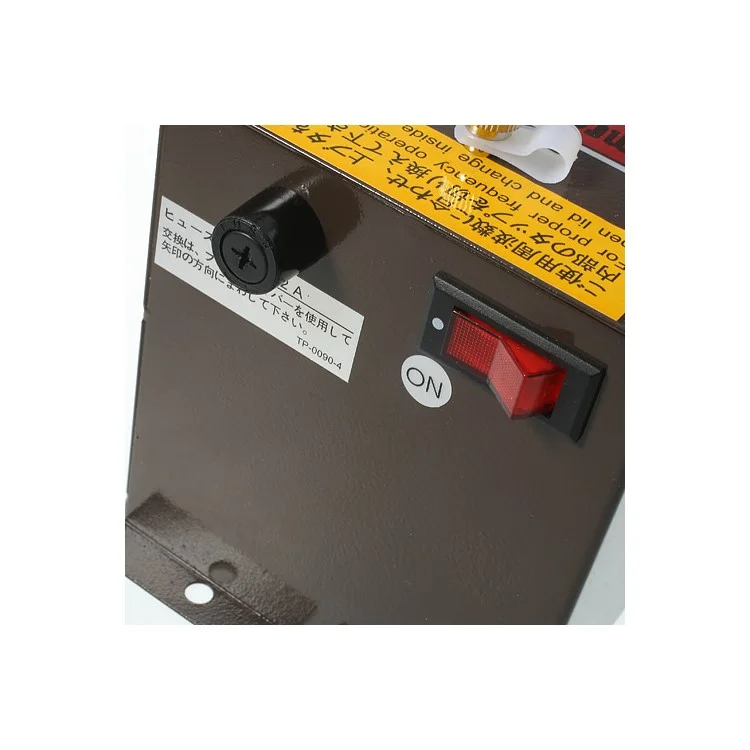

• Switch / Lamp: one switch with indicating lamp
• Fuse: 0.2A
• Overall Size: 165(W) x 103(D) x 115(H)
• Weight: about 3.8Kg
• Maximum Load: one HBA gun with 6m twin cable
• Voltage: 220V and 110V for optional

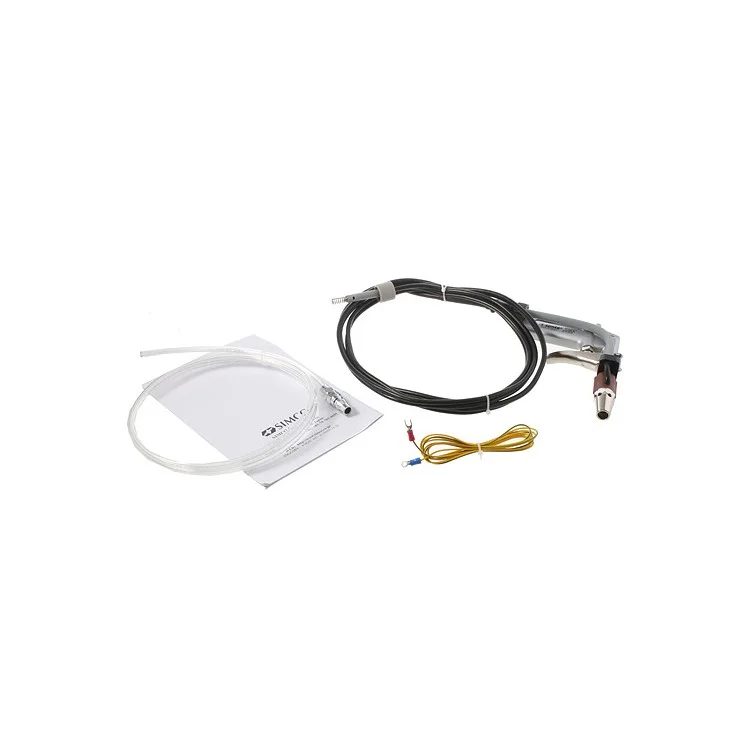

Package includes:

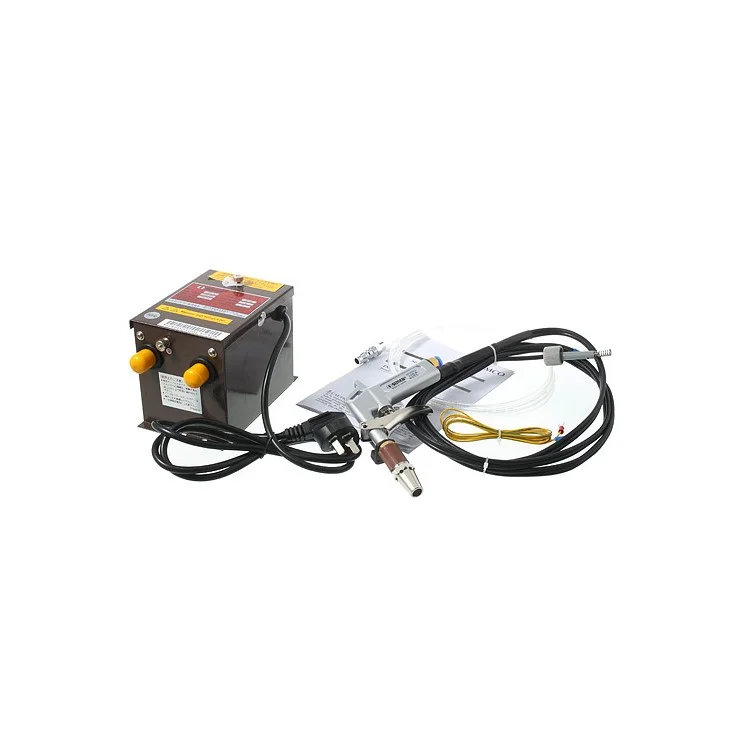

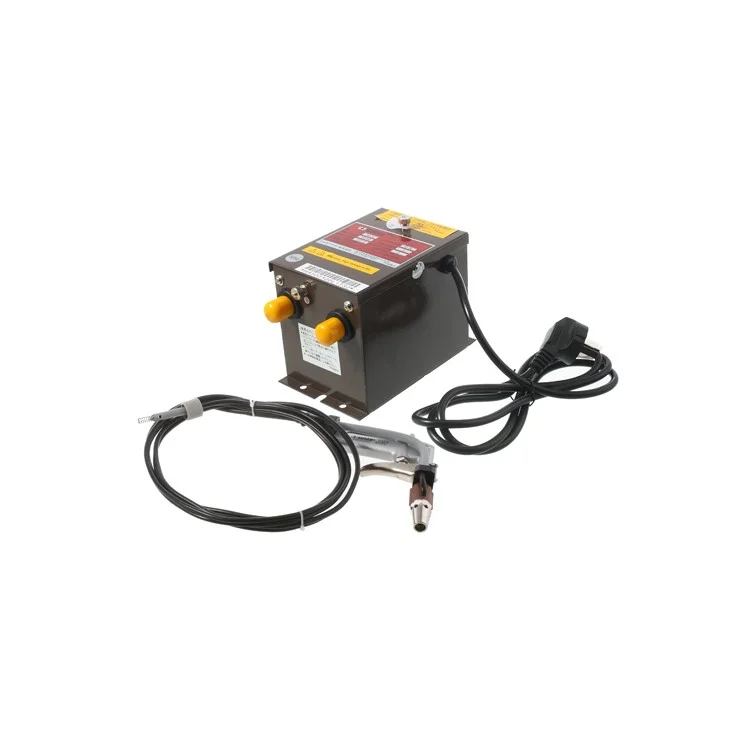

• 1 x SIMCO Static Eliminator Power Supply + ESD Ionizing Air Gun ionizing Air Blower

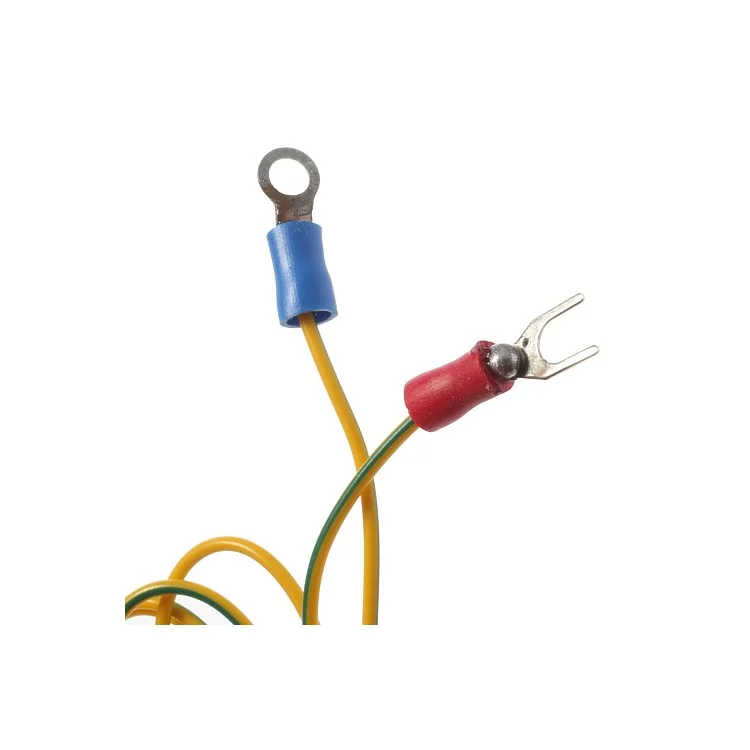

• 1 x Grounding Wire (about 2m)
• 1 x Daily Inspection Sticker
• 1 x Manual
