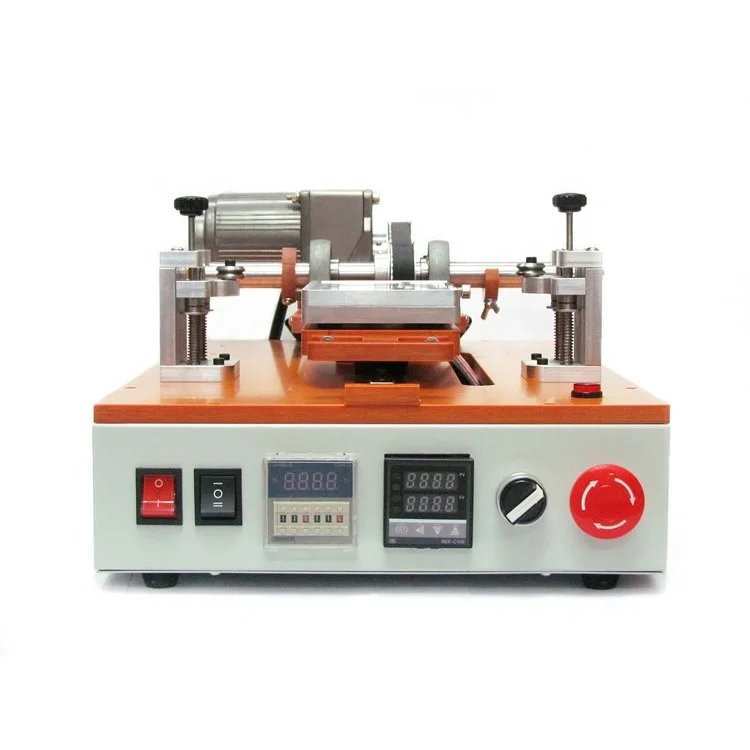

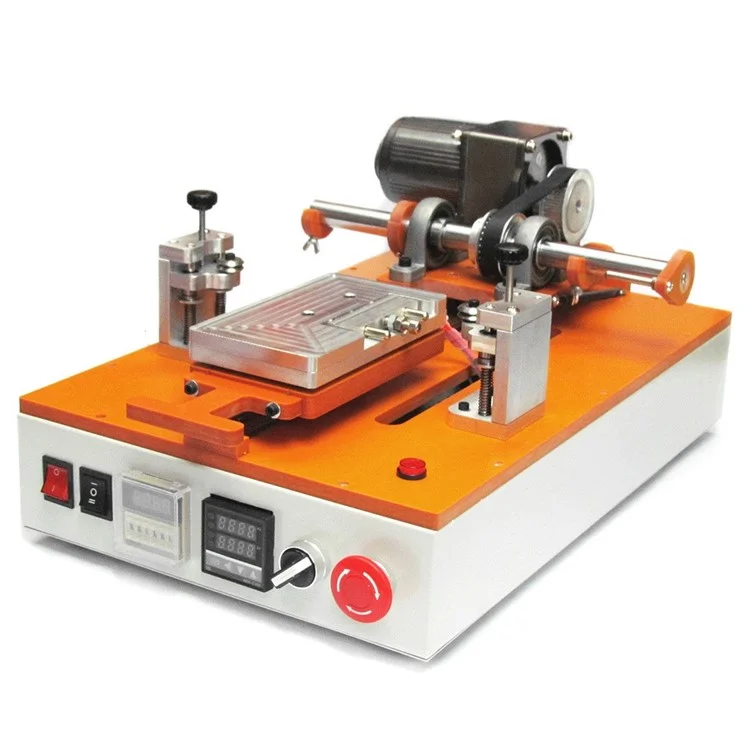

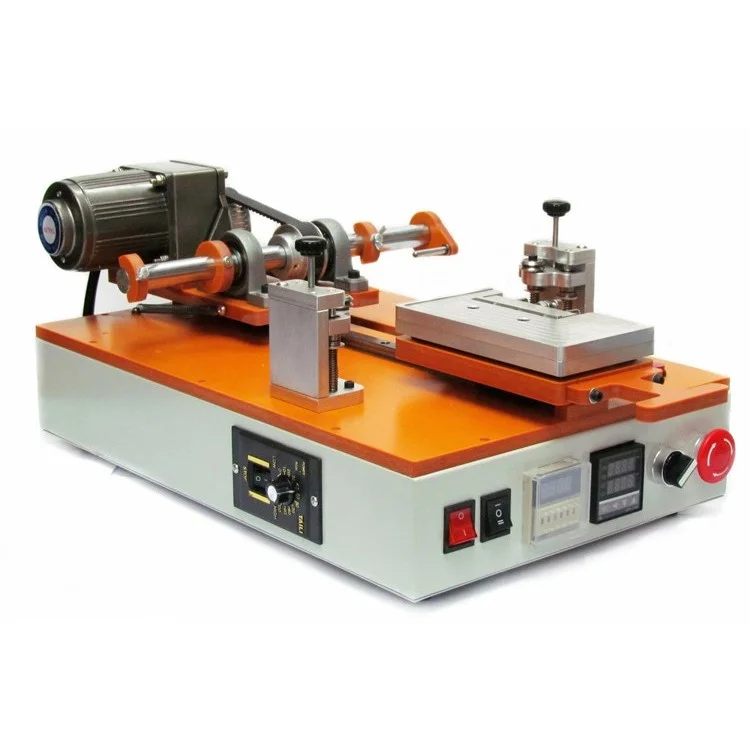

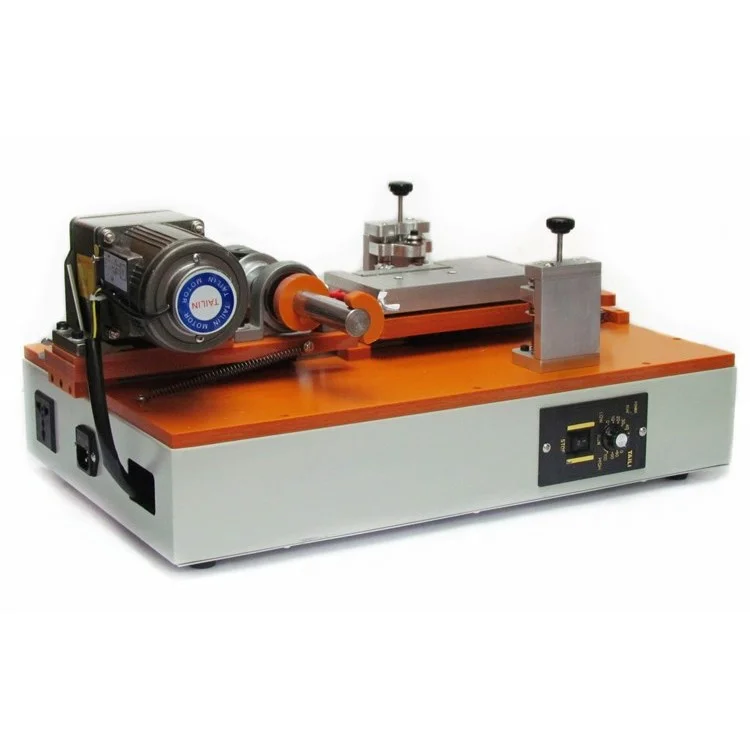

Semi-automatic Separator Hot Plate Machine to Separating Mobile Phone Touch Screen & LCD
  • The machine is used for separating lcd and touch screen of Apple, Samsung, HTC as well as other cell phones. if the LCD is still working well, you just need to replace a touch screen
  • Comes with some small tools, make the operation convenient and easily
  • Can break up the glue(OCA) at the same time, and water-binder (LOCA) products
  • Low noise, economical and practical, greatly reduce the production cost
  • With motor drive, speed and temperature are adjustable, quite convenient
  • Fast, high efficiency, and easy operation
  • Product size range: length: 3.3inch, width: 6.3inch, diagonal: 6.8inch
  • Note 1: As different country has different current or voltage standard,  this machine can work normally the voltage between 110v from 240v, so you do not need to worry this question.
  • Note 2: this machine do not include alloy wire, so if you need it, please order TOOL-234

Operating Instruction:

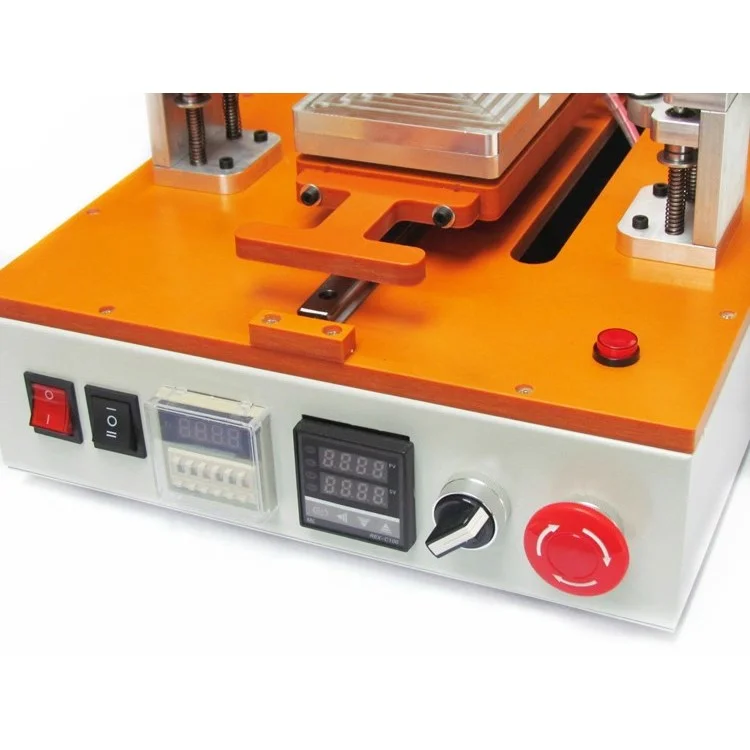

  • 1: Turn the power switch on
  • 2: Turn the temperature controller on, and set the temperature. ( usually lower than 100 degree)

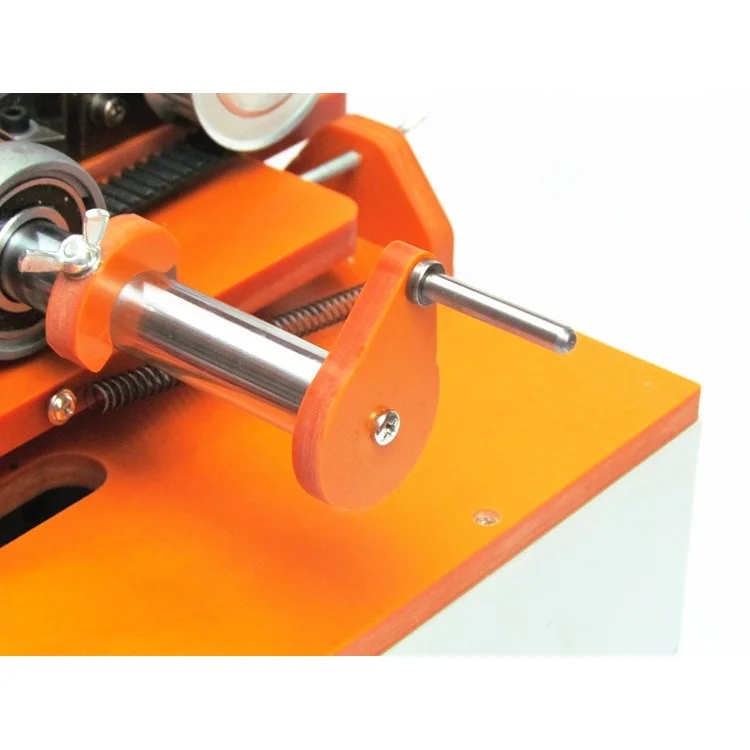

  • 4: Put the wire on by the manual mode
  • 5: Adjust steering button
  • 6: Push the, and adjust the motor speed by rotary switch
  • Note: Adjust the steering button up, the machine will run clockwise; Adjust the steering button up, the machine will run anticlockwise; Middle position will run clockwise and anticlockwise alternatively.

Compatible with:

  • Most smartphone: iPhone 4 4S 5, Samsung, HTC, Sony etc.

Package included:

  • 1 x Semi-automatic Separator Hot Plate Machine to Separating Mobile Phone Touch Screen & LCD
  • 1 x Power Charging Cable
  • 1 Set of Tool
