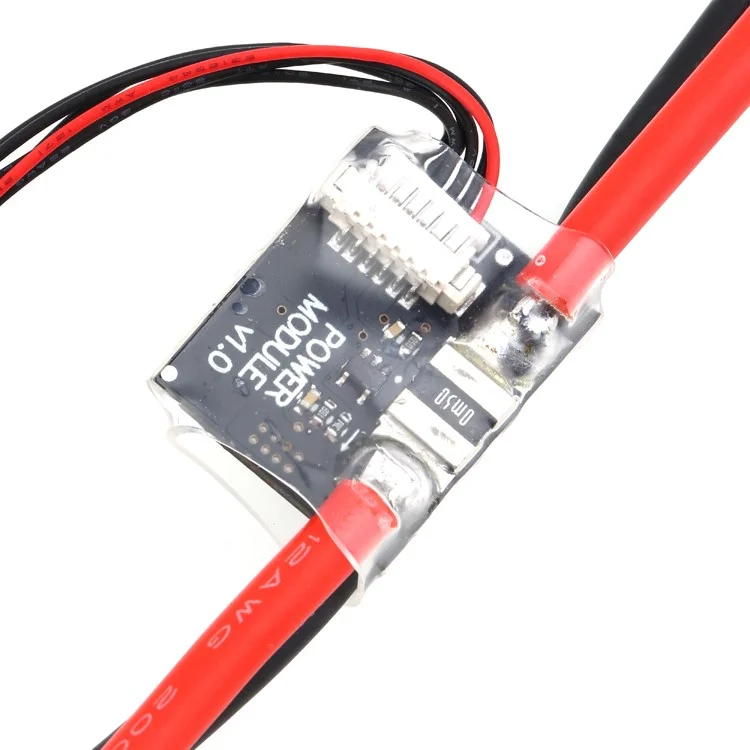

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

• Voltage and current measurement configured for 5V ADC

• Switching regulator outputs 5.3V and 3A max

• 6-pos DF13 cable plugs directly to APM PM connector of 2.5

• Note: This power module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio)


Specification:

• Input voltage: 2-6S lithium battery ( max 28V)

• Output voltage: 5.3V

• Max output current: 3A


• Max measurement current: 90A

• Size: 25 x 21 x 9mm

• Weight: 17g
