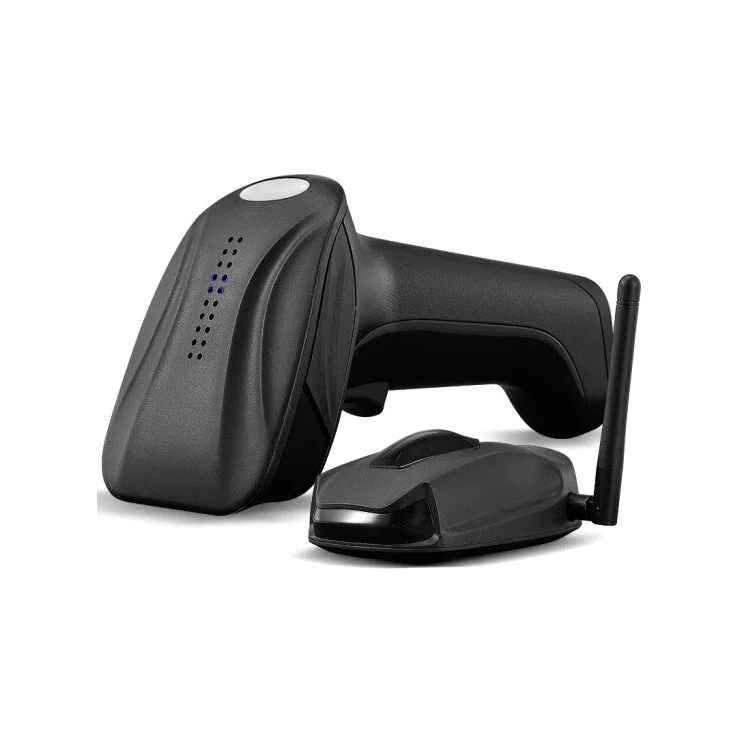

HY2440 433Mhz Wireless Socket 2D Barcode Reader - Black
Supports a wide range of barcodes types: 1D: CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, INDUSTRIAL25, STANDARD25, Plessey, MSI_Plessey; 2D: PDF417, QR Code, Aztec, DataMatrix, Maxicode
Supports Window XP, win7, win8 or other system, not support linux and iOS device
Exquisite and beautiful design, external protected by soft rubber and internal scientific structure
The latest technical accomplishment is applied to the engine and decoding function, reading codes better and faster
Easy using, easy setting
Large capacity, 1.5 times higher than ordinary scanner
Suitable for a range of scanner, supporting a receiver
Ideal for business, shops and warehouse operations
Specification:
| Wireless transmission distance(without barrier) | 400-500 Meters | |
| Optical source | 620nm Visible red light diode | |
| Imaging sensor | CMOS | |
| Resolution ;ratio | 30 million pixels | |
| Image resolution | ≥5mil | |
| Minimum contrast | ≥30% | |
| Barcode types | 1D: CODE128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5 ITF14, MATRIX 25, Code39, Codabar, Code93, UCC/EAN-128, Code11, ISBN, INDUSTRIAL25, STANDARD25, Plessey, MSI_Plessey 2D: PDF417, QR Code, Aztec, DataMatrix, Maxicode | |
| Barcode sensitivity | Tilt | ±55° |
| Rotate | ±25° | |
| Deflection | ±75° | |
| Mechanical and ElectricPerformance | ||
| Size(L x W x H) | 94mm*63mm*161mm | |
| Net weight | 141g | |
| Indicator | Siren and LED Light | |
| Battery capacity | 1000mah | |
| Max.power | 1176mw | |
| Working voltage | 4.2V | |
| Current | Max.current | 280mA |
| Working current | 84mA～280mA | |
| Standby current | 84mA | |
| Sleeping current | ≤10uA | |
| Charging current | 450mA | |
| Battery charging time | ≤3.5Hours | |
| A fully charged readable | ≥100,000 times | |
| Environmental Parameter | ||
| Storage temperature | -40°C~60°C | |
| Working temperature | 0°C~50°C | |
| Relative humidity | 0~95% | |
| Height range | 1.5M | |
| IP rating | IP52 | |
