• 2 in one machine, no need bubble remover

• Smart constant pressure, automatic shift to the lamination and debubbling mode

• It can laminate different model LCD or different thickness LCD meanwhile

• Fit for all LCD touch screen under 12-inch

• PLC human machine interaction control system controls accurate time and temperature

• Oil water self cycle system, reduce the problem of the solenoid, rise the working year of the machine

• Easy operation, one button for laminating and bubble removing, no need other operation

Specification:

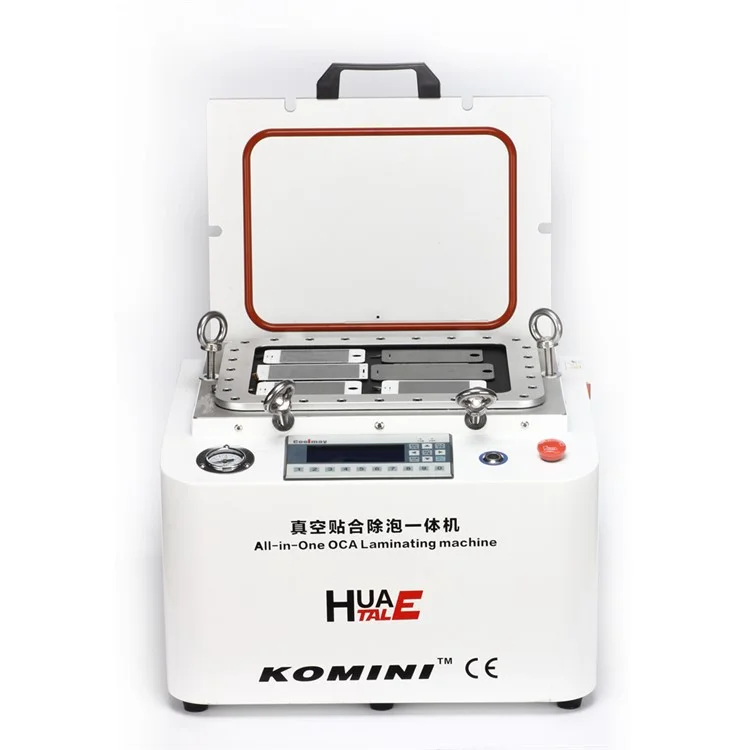

• Brand: HUATALEHON

• Model: KOMINI

• System Control: PLC smart touch

• Power: 1000W, AC110V/AC220V (Selective)

• Operation Air Pressure: 0.1-0.2Mpa suggest: 0.15Mpa (1.5kg/ cm²)

• Work Environment: 20-30°C, clean and dust-free

• Heating Method: Constant temperature

• Temperature Control: 30-45°C

• Laminating: Flat Type Lamination

• Applicable Size: LCD under 12-inch

• Size of Platform: 280*200mm

• Size of Equipment: 460*410*380mm

• Work Efficiency: 8pcs/10mins (e.g iPhone 4)

• Weight of Equipment: About 37kg

• Gross Weight: About 45kg

Operation:

• 1, Check that whether the power and air source is normal or not.

• 2, Switch on the power and press the button to boot the equipment to check that whether the equipment can operate normally or not.

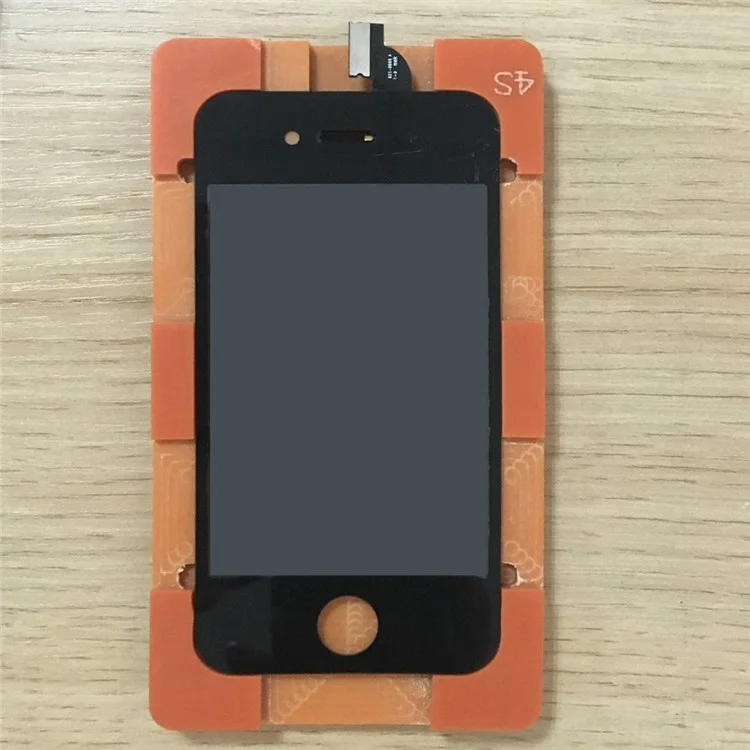

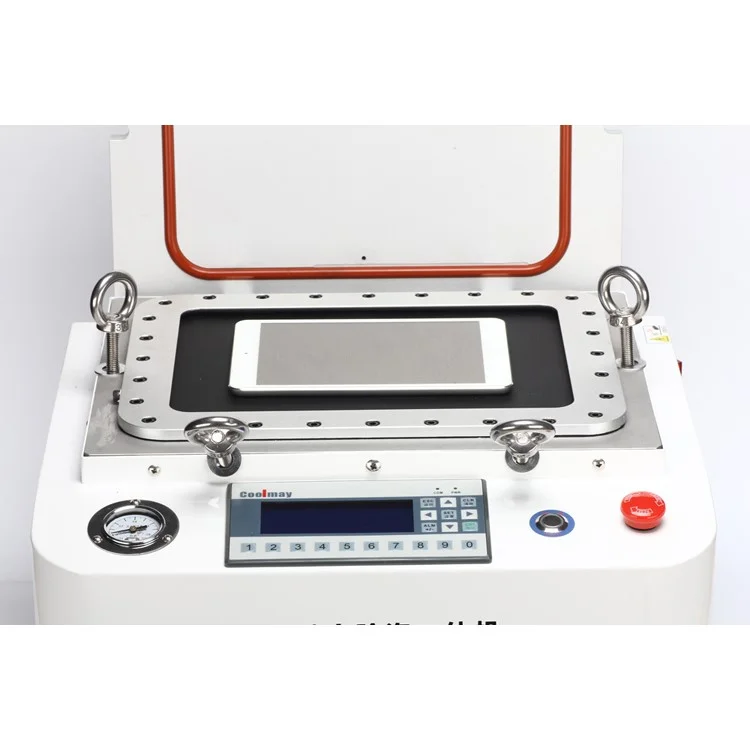

• 3, Put the LCD with the OCA glue on the working platform.

• 4, Close the cabinet gate.

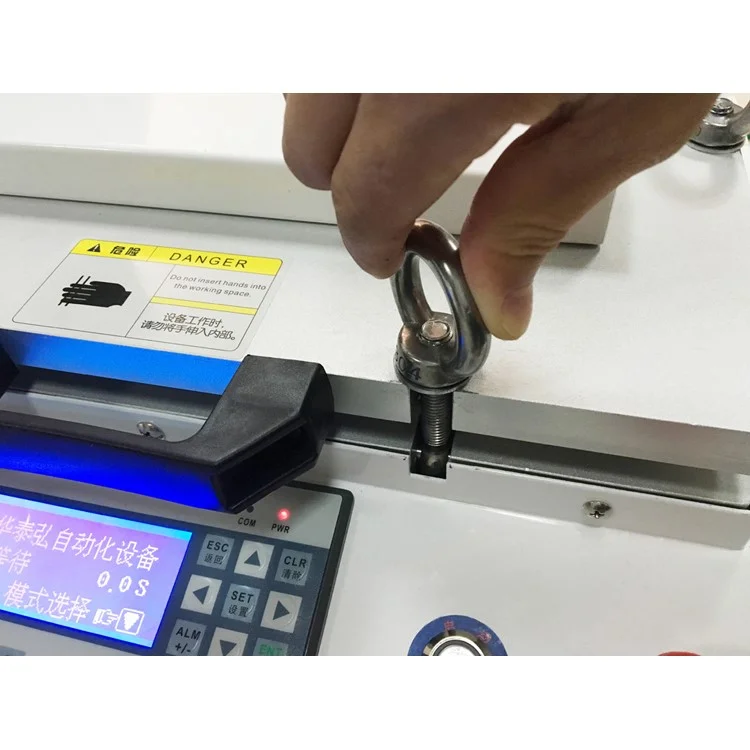

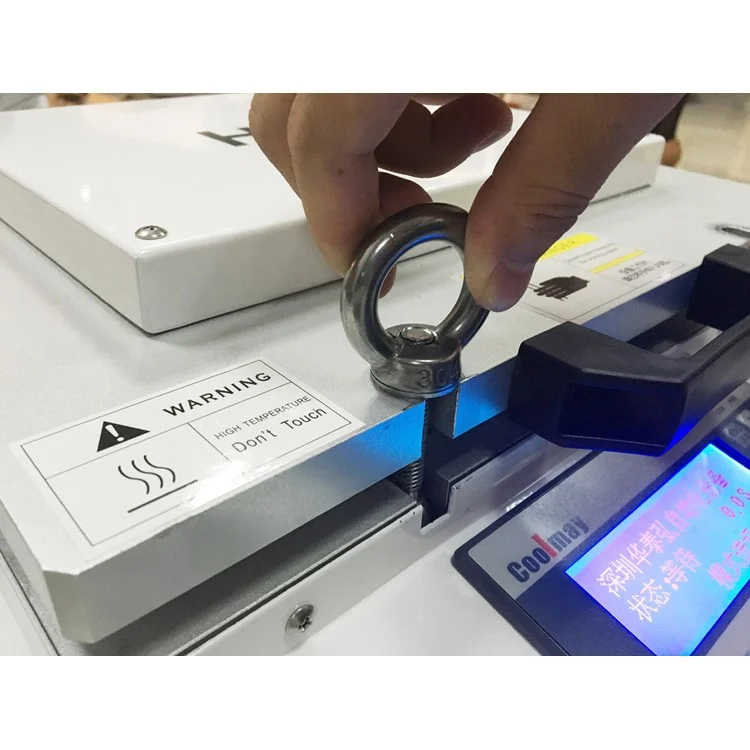

• 5, Lock the four screws.

• 6, Press button to boot the equipment.

• 7, Wait patiently for 10 minutes.

• 8, Wait until the start button lights off and the barometer turns to zero. Loosening the screws and open the cabinet gate then take out the product.

• 9, The process completed, check whether the product is normal or not.

Compatible with:

• iPhone Samsung Sony HTC LG etc. smartphones LCD repair
