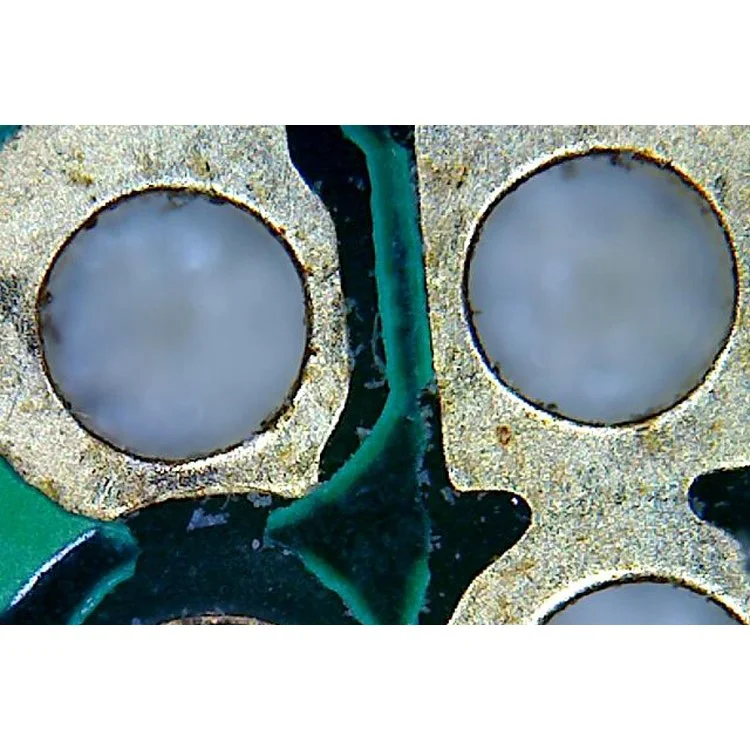

This device is widely used in different fields including textile industrial for textile inspection, printing inspection, industrial inspection (PCB, precision machinery), educational purpose, hair detection, skin detection, microbiological observation, jewelry and coin (collections) inspection, visual assistance, etc. The USB mode is perfectly matched with Windows XP/Vista/7/8.

• 50X-500X magnification

• 8 LEDs with brightness adjustment, which enable you observe clearly

• The special software Hotviewer allows you to have picture, record video and do micro-measure work with ease

• USB connection, compatible with windows XP/Vista/7/8

Specification:

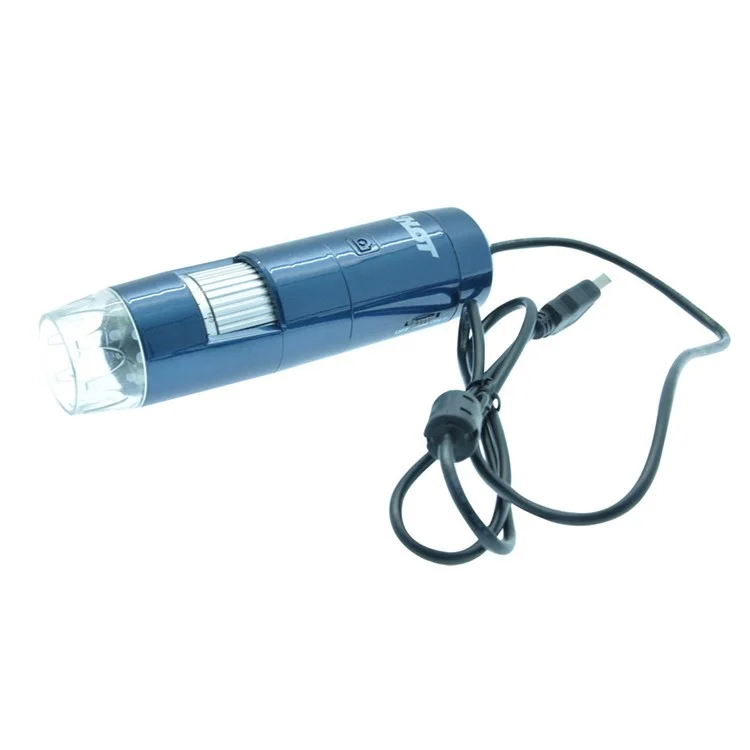

• Model: U05

• Image: CMOS sensor

• Controller: High-speed DSP (M-jpeg)

• Magnification Range: 50X ~ 500X (Manually)

• Focus Range: 0 ~ 40mm

• Frame Rate: VGA 30fps, under 600 LUX brightness

• Capture Resolution: 640*480, 2592*1944, can be magnified and minified

• Take Images: SNAP shot

• Video Capture Resolution: 5.0MP

• Light Source: Built-in 8 White-light LEDs (adjustable illumination ensures that the magnified images are clear and bright)

• Illumination Scope: 0 ~ 30000LUX

• Brightness Control: Manual adjustment

• Fixed Foundation: Tailor-made for the microscope

• Application Software: Hotviewer

• Support O/S: USB capable: Windows Vista/XP/7/8

• Language: Chinese, English

• Power Supply: DC 5V via USB port

• Microscope Size: 142mm (L) x 37mm (D)

• Microscope Weight: 100g
