One HDMI input converted to one HDMI+ Audio (SPDIF+R/L) output. Output audio support: SPDIF+R/L analog audio output
Input resolution: up to 1080P(50/60Hz)
HDMI to achieve the synchronization of audio signal separation. There are PASS / 2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED relative to is light
Need DC5V/1A power supply
Specification:
Max transition rate: 5.1Gbps
Input TMDS signal: 0.5~1.5Volts p-p(TTL)
Output DDC signal: 5Volts p-p (TTL)
HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max working current: 600mA

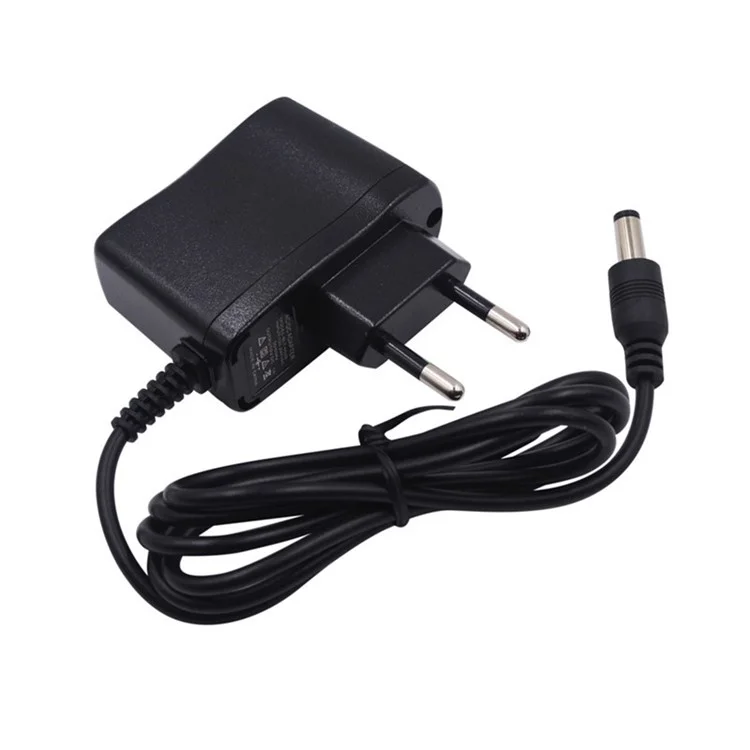

Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating temperature range: -40°C ~ 80°C
Operating humidity range: 5 to 90%RH
Size: 85 x 83 x 28mm
