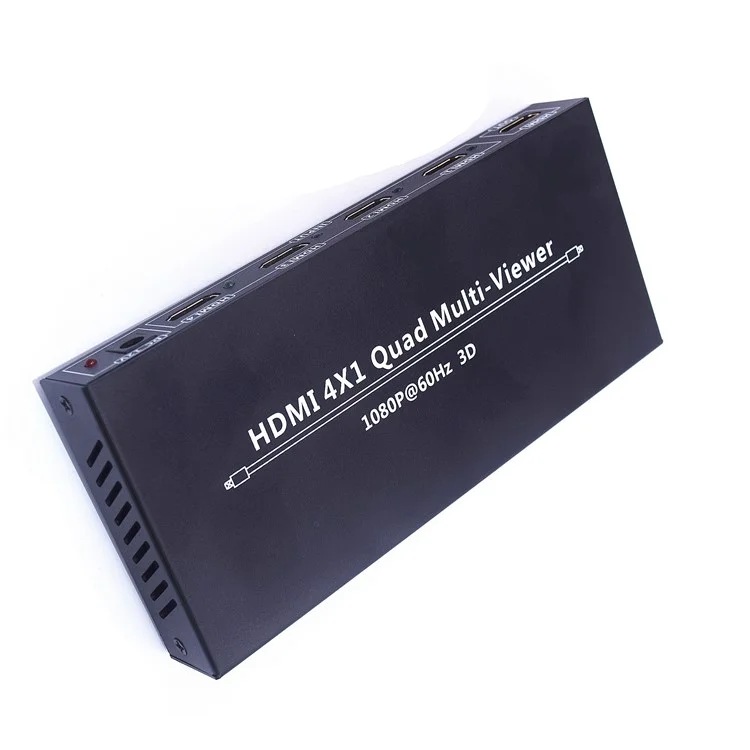

• HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch

• It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously

• The control methods of the switch is flexible, it can be switched via button and IR control

• It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places

• Compliant with HDMI 1.3a, HDCP 1.2

• Supports up to 1080p High Definition resolution

• Supports 720/1080p output resolution

• Supports audio switch

• Supports fast switching

• Supports Equalizer TMDS Output: 25MHz 225MHz TMDS clock

• Supports Blue-Ray 24/50/60fps/HD-DVD/xvYCC

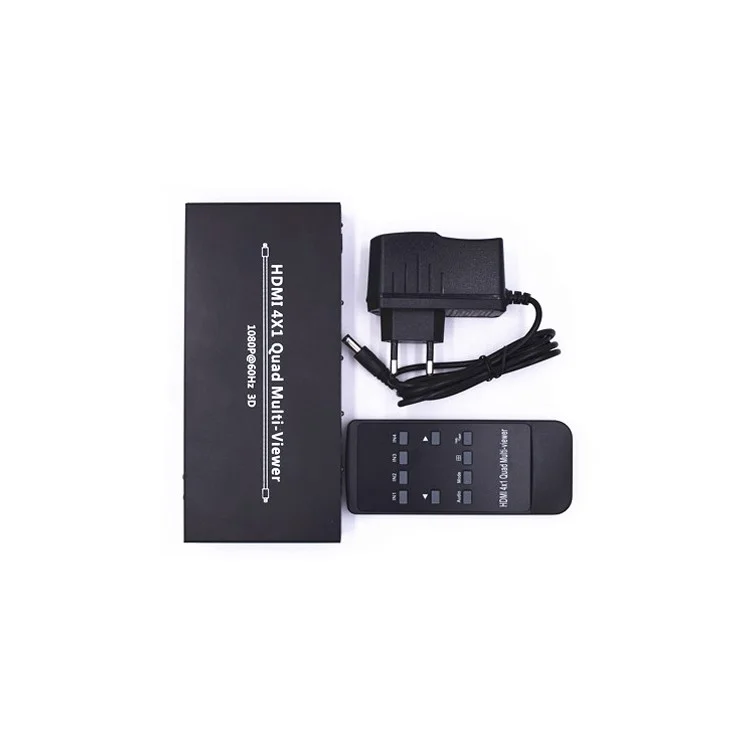

• Inputs can be switched with the IR remote controller, also can be controlled by built-in button.

• Extend the transmission distance and improve transmission signal

• Compatible with DVI through a HDMI to DVI adapter

• Supports hot plug-and-play

• LED indicate signal and power mode

Specifications:

• Maximum Single Link Range: 1080P/60Hz

• HDMI Input Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p

• HDMI Output Resolution: 720p/1080p/60Hz

• Supports Video Color Format: 24bit/deep color 30bit, 36bit

• Vertical Frequency Range: 720/1080p@60Hz

• Max. Bandwidth: 225MHz

• Max. Bandrate: 6.7Gbps

• 1080P Input Cable Distance: 15m AWG26 HDMI standard cable

• 1080P Output Cable Distance: 20m AWG26 HDMI standard cable

• Max. Working Current: 1A Operating

• Dimension(L x W x H): 200 x 95 x 20mm

• Weight: 460g
