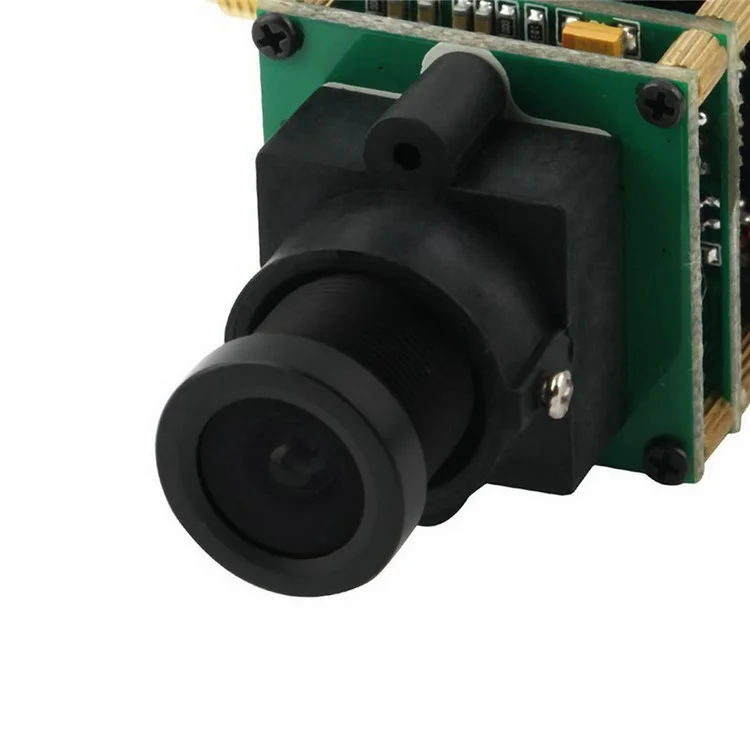

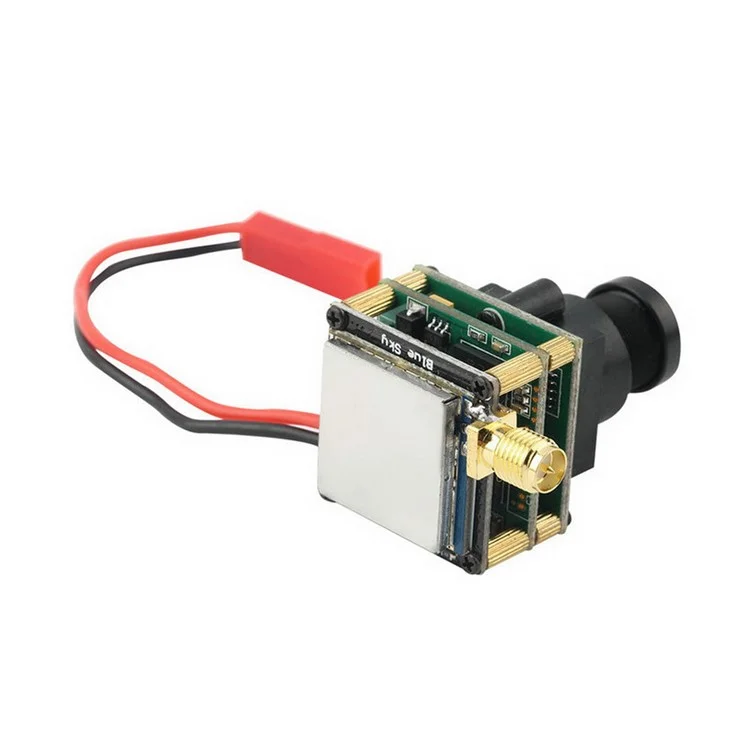

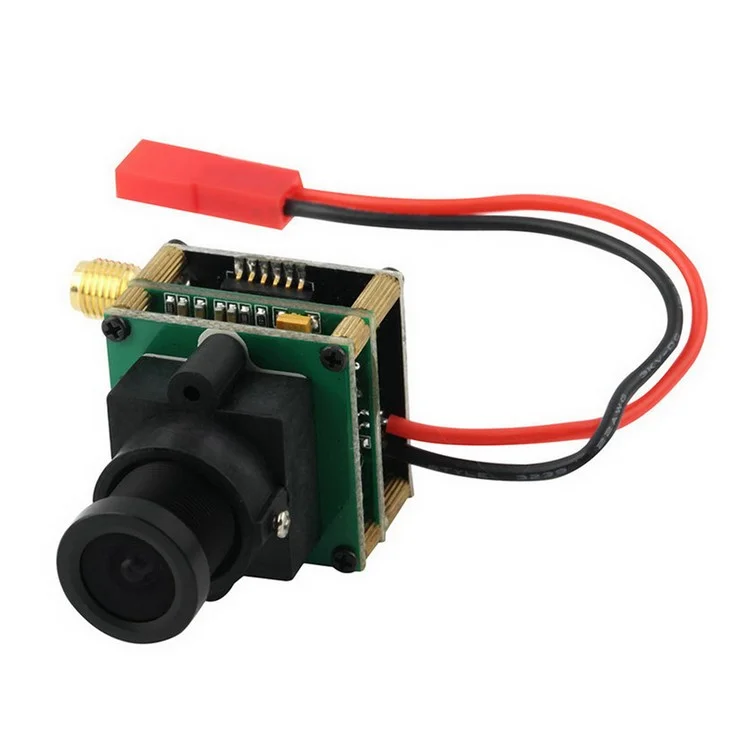

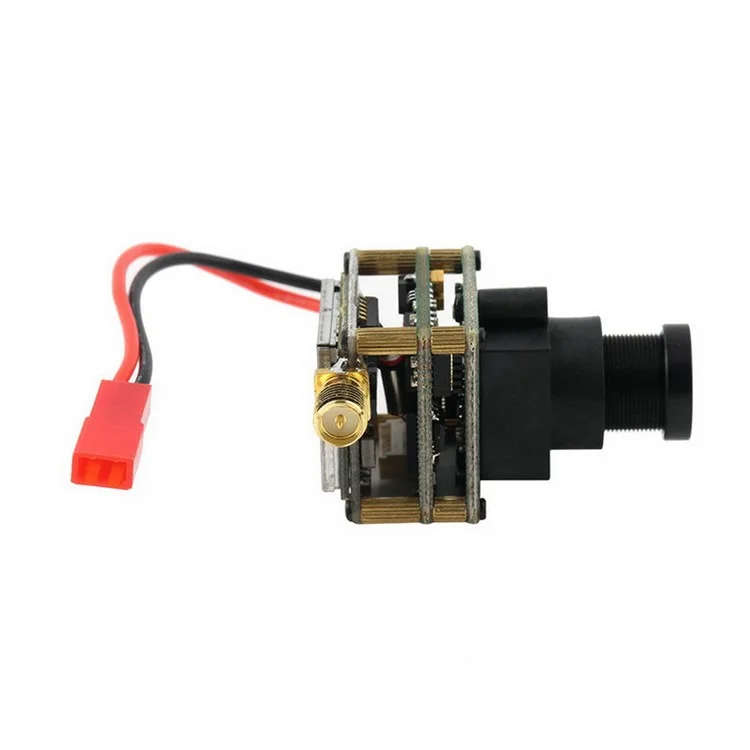

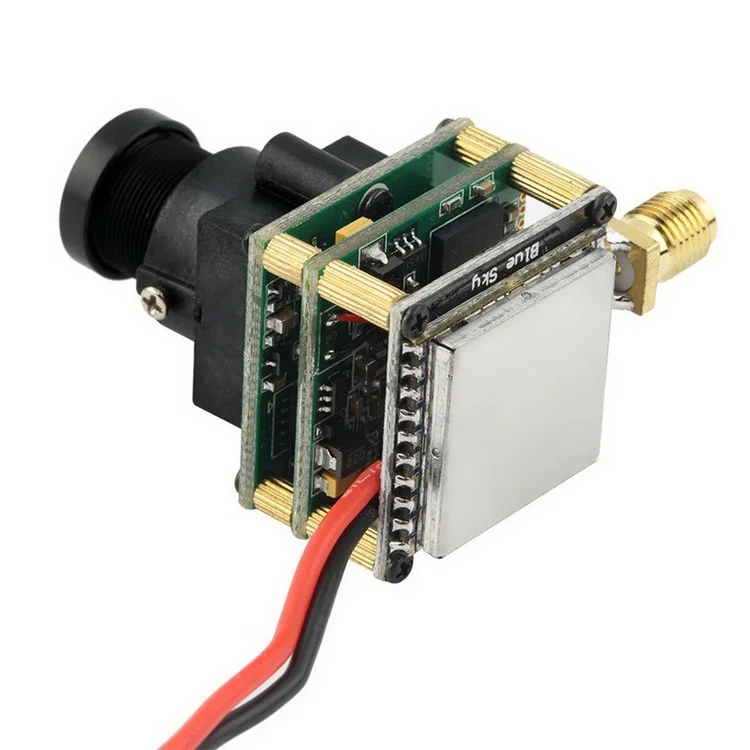

• Sony CCD 700TVL camera + 5.8G 200MW transmitter integrated

• Simply powered by 3S battery, no complicated wire connection

• Plug and play, easy to use

Specification:

• Frequency: 5.8G wide-band FM video/audio

• Stereo Audio: L/R audio channel

• Transmission Power: 200MW 23dbi

• Signal System: PAL / NTSC

• Pixels: PAL: 1020H x 596V (610000 pixels); NTSC: 1020H x 508V (520000 pixels)

• Effective Pixels: PAL: 976H x 582V (570000 pixels); NTSC: 976H x 494V (480000 pixels)

• Definition: 650/700TVL (BW)

• Minimum Illumination: 0.01Lux/F 1.2

• Video Output: 1.0Vp-p75Ω

• Sync: Internal synchronization

• Shutter Speed: 1/50 (1/60) ~ 1/100,000 (s)

• AGC (Automatic Gain Control): +18dB maximum

• Gain Control: Auto

• DNR (Digital Noise Reduction): 2DNR support 0~15 16 grade adjustable

• Wide Dynamic: Digital wide dynamic 0-60

• OSD: Support

• Automatic Gain Control: 0.25/0.50/0.75/1.00

• Aperture Control: Yes

• Backlight Compensation: HLC / Backlight compensation

• Backlight Compensation: Auto

• SNR: 52dB minimum / 60dB maximum (AGC automatic closing)

• Gamma Correction: 0.45/1.0

• White Balance: On / OFF switch

• Power: DC 12V±5%

• Ambient Temperature: -20°C ~ 60°C

• Size: 25mm x 25mm

• Weight: About 27g
