Battery type

Build-in battery, 1500mAh, 3.7V

Battery life working time

2.5H

Charging time

2H at least

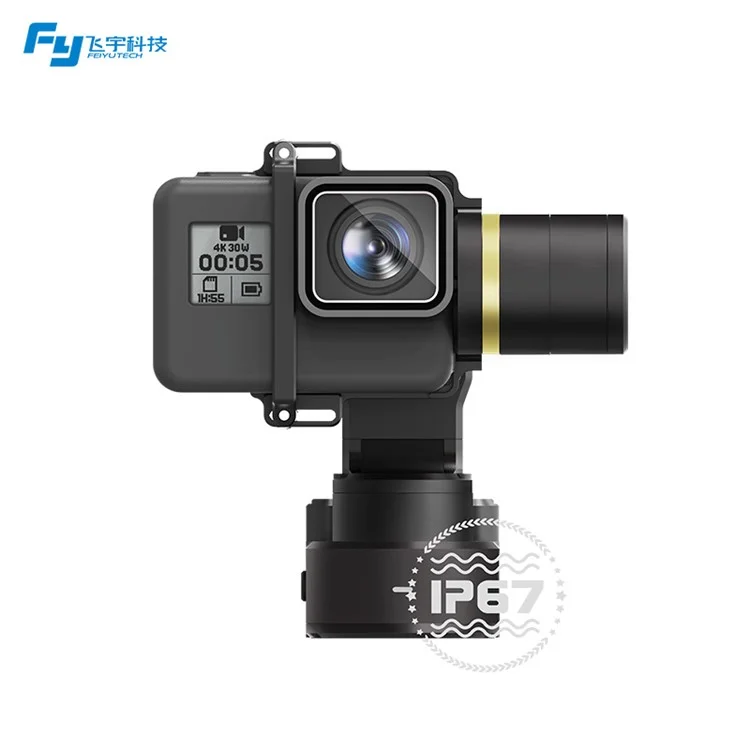

Grade of waterproof

IP67

How to balance it

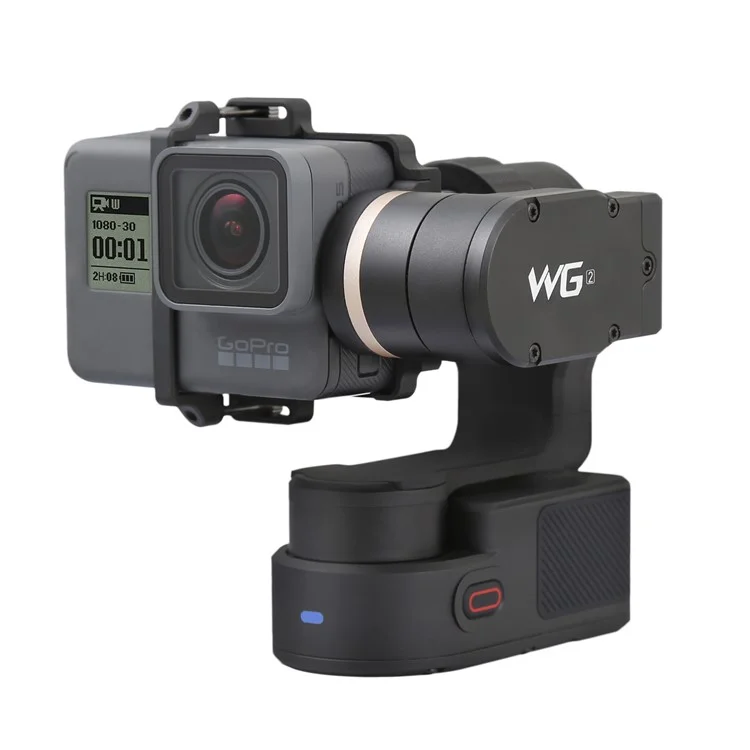

With the movement of the rolling arm to find the perfect balance status for camera. And there is special mark for Hero4/5 in the rolling arm.

Power on and off

 POWER ON: Long-press the function button until the green light is on. (release it until the beep is on).
  POWER OFF: Long-press the function button until the light is solid red. (release it until the beep is on).

Working mode (operate with function button)

1. Single tap: Switch between panning mode and lock mode
2. Double tap: Panning and tilting mode, enter and exit lock mode by single-tapping in this mode
3. Triple tap: Rotate 180°in horizontal
4. Quadruple tap: Auto-rotation Mode(check more details in special user manual)
 5. Fifth tap: Initialization

Mounting way

Inverted mounted (The camera in left or right side will be both fine)
Vertical mounted (The camera in left or right side will be both fine)
Forward mounted (The camera in left or right side will be both fine)

Available rotated angle in 3-axis

Tilting Angle:  360° (unlimited)
Rolling Angle:  70°(The rolling angle can’t not be changed)

Panning Angle: 360°(unlimited)

Weight

265g (without the camera)

Main functions for users

Initialize the gimbal, Manually set up the starting and ending position of Time Lapse. Manually lock the tilting motor in any direction. Upgrade the firmware in PC or Mac, Upgrade and set up the parameter with Feiyu On. Remote control the gimbal by smart remote within 4m.

Extensible port

1/4inch screw hole at the bottom and back side.
M2mm screw thread at the side of 1/4inch screw hole to fix the

T-clamp.

 Main features

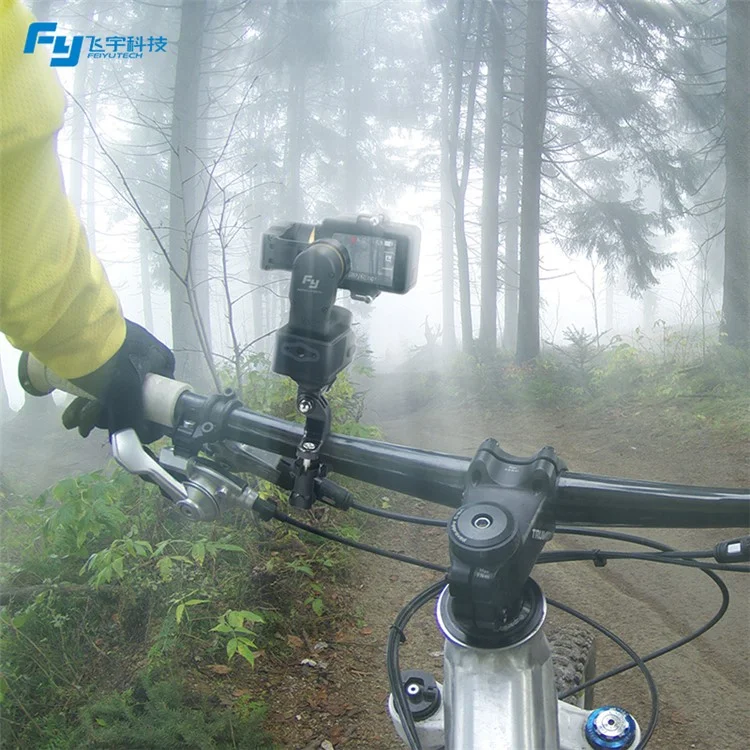

Several working mode, suitable for all the accessories of Gopro base adapter with T-Clamp, Connect the WG to helmet, bicycle, selfile pole, etc.

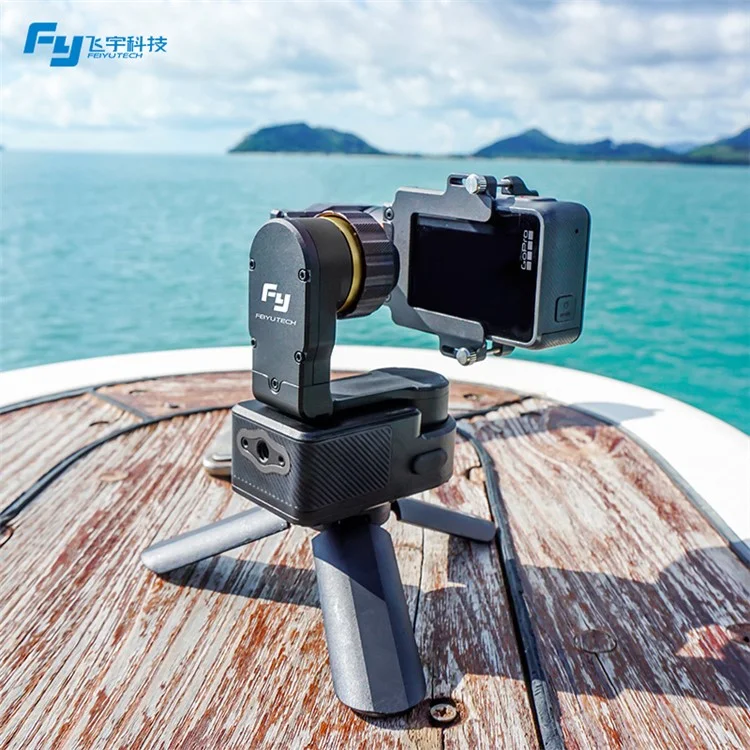

And compatible with extension bar and tri-pod with 1/4 inch screw

hole.
