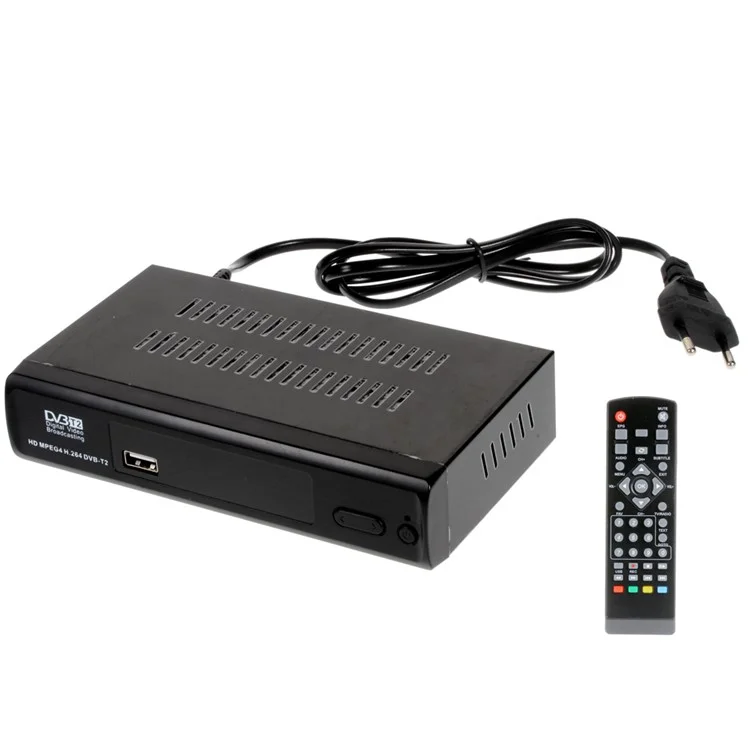

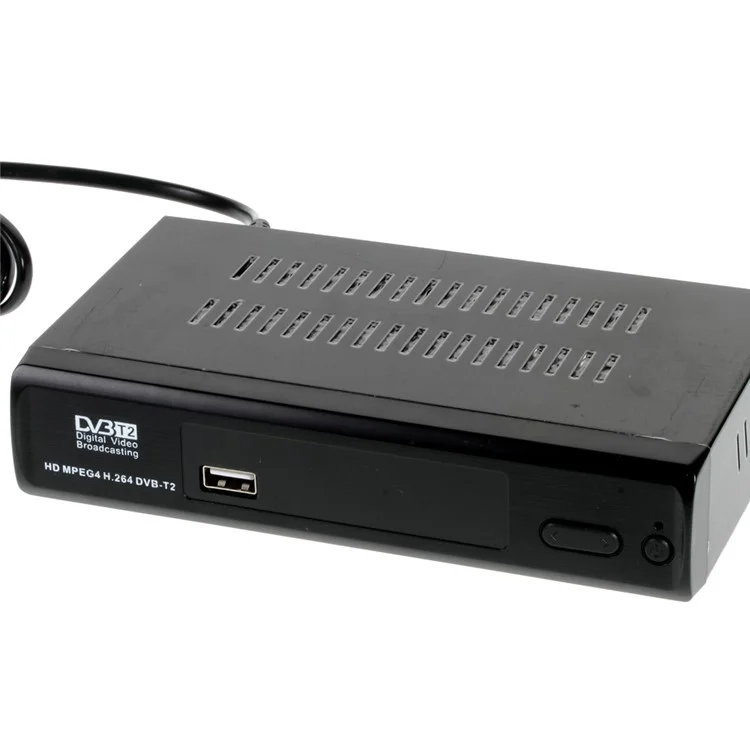

This Digital DVB-T2 HD Receiver offers many useful and exciting features to enhance your enjoyment including a 7 Day EPG and the ability (with an externally connected USB Memory device) to both Record and Live Pause programmes. It is also able to playback Multimedia files.

• Fully comply with DVB-T2 and H.264, MPEG-4, MPEG-2 standard

• The maximum speed of the traffic flow up to 50.1 Mbit/s

• Support PVR function and multimedia playback (MP3/BMP/JPEG/AVI etc) via USB2.0

• Various program editing functions (favorite, move, lock, skip, delete)

• Video output resolution: 480p/576p/720p/1080i/1080p 50Hz

• Video decoder up to 1080p@30fps(Full HD, support up to 1080P)

• Support 7 Day EPG (Electronic Program Guide)

• Storing capacity up to 1000 channels of TV and radio programs

• Support Logic Channel Number (LCN)

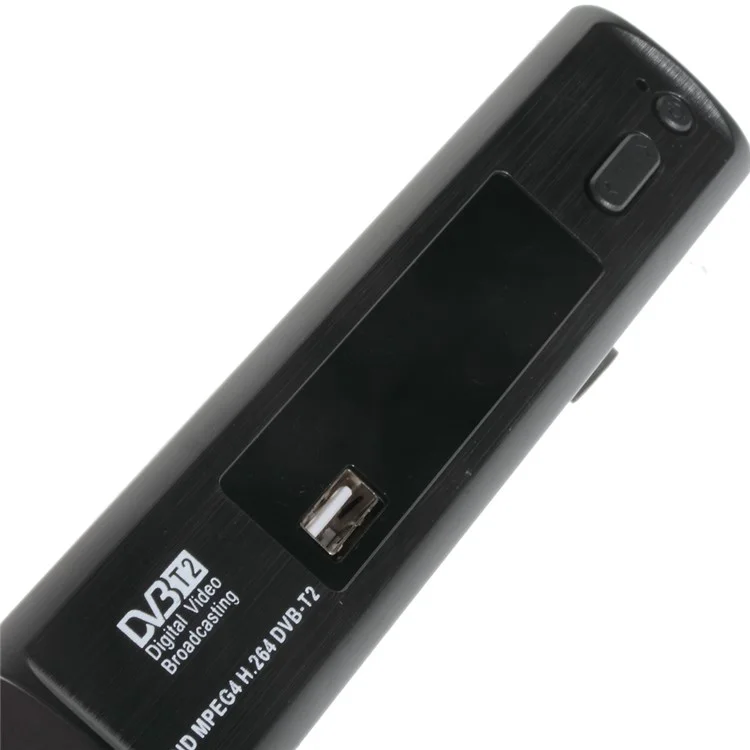

• 4-digit LED display on front panel

• Auto/Manual channel search function

• Support OSD language

• Support teletext/subtitle/audio language selection

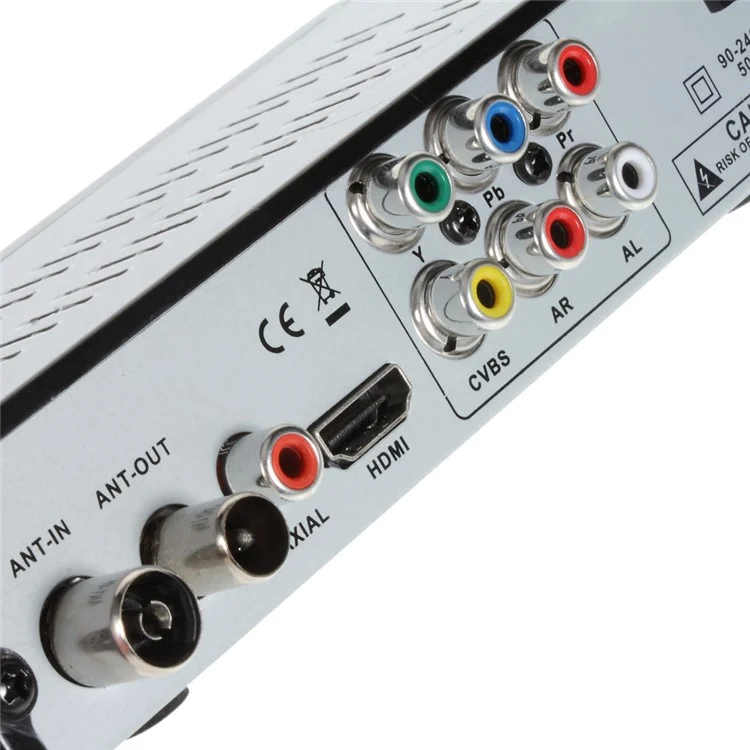

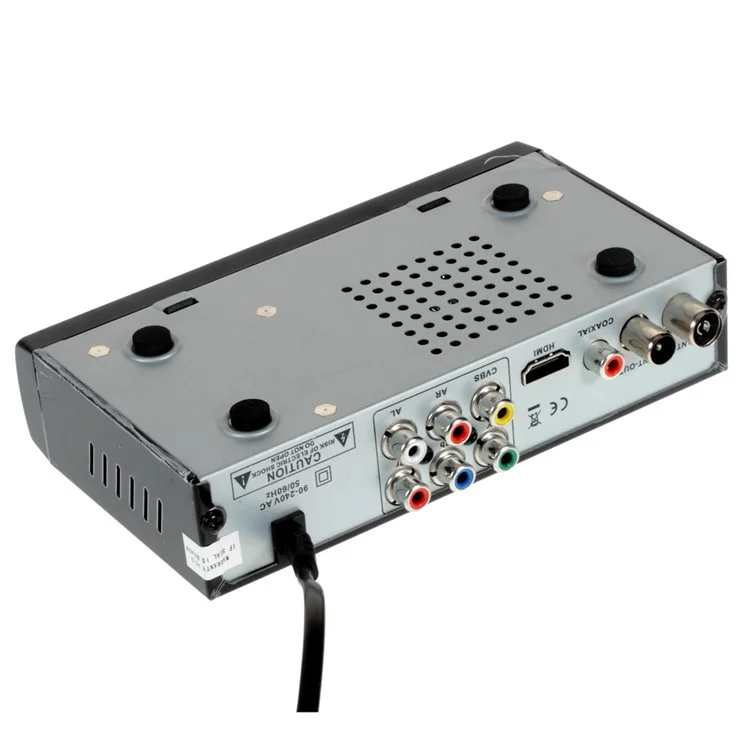

• Outputs include HDMI (V1.3C), YPbPr, CVBS, Coaxial

• PAL/NTSC auto conversion

• Note: 1. this set top box does NOT support TV programs with Dolby surround sound.

• 2. this set top box CAN NOT be used in countries of France and Germany, please be noted when placing an order.


Specification:

• Model: DVB-T2

• Input RF Frequency: 48~862MHZ

• RF Input Level: -20 ~ -82dBm

• IF Bandwidth: 7MHz and 8MHz

• Modulation: QPSK, 16QAM, 64QAM, 256QAM

• Video Decoder Format: MPEG4 AVC/H.264 HP@L4; MPEG2 MP@ML/HL

• Video Output: 576P/720P/1080I/1080P 50Hz

• Aspect Ratio: 4:3, 16:9, Auto

• Video Output Port: HDMI (V1.3C), YPbPr, CVBS

• Audio Decoder Format: MPEG-1 (layer1&1&2&3), WMA

• Audio Output: S/PDIF (Coaxial), RCAx2 (L/R)

• Supported Capacity: Unlimited

• Supported Media: WMA, MP3, JPEG, BMP, AVI

• Power Supply Voltage: 100-240V 50/60Hz

• Maximum Power Consumption: 10W

• Standby Power Consumption: <0.8W
