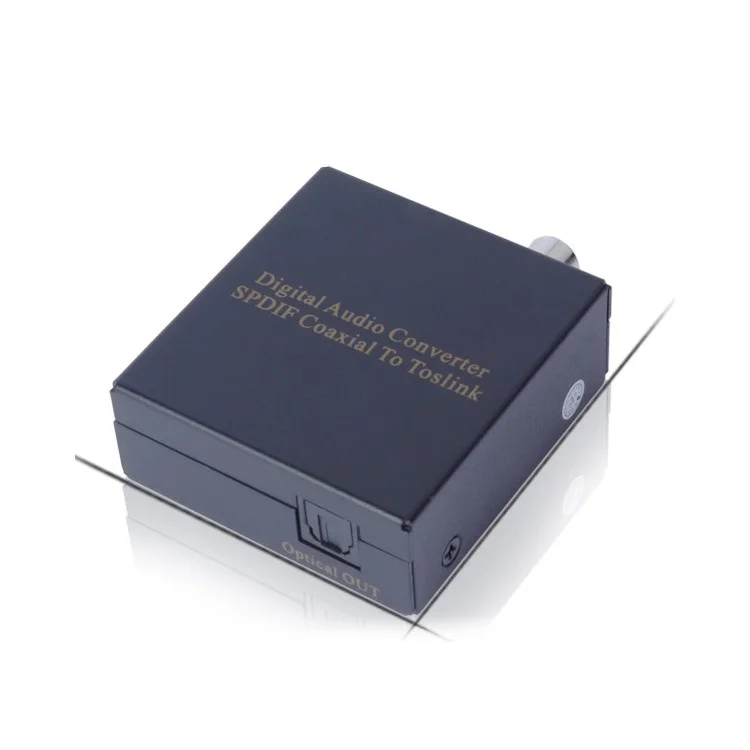

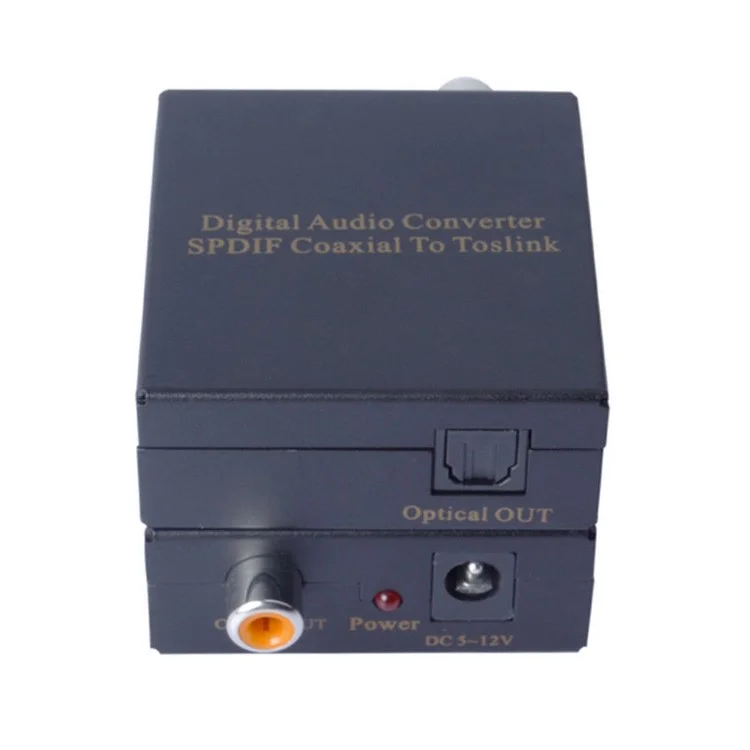

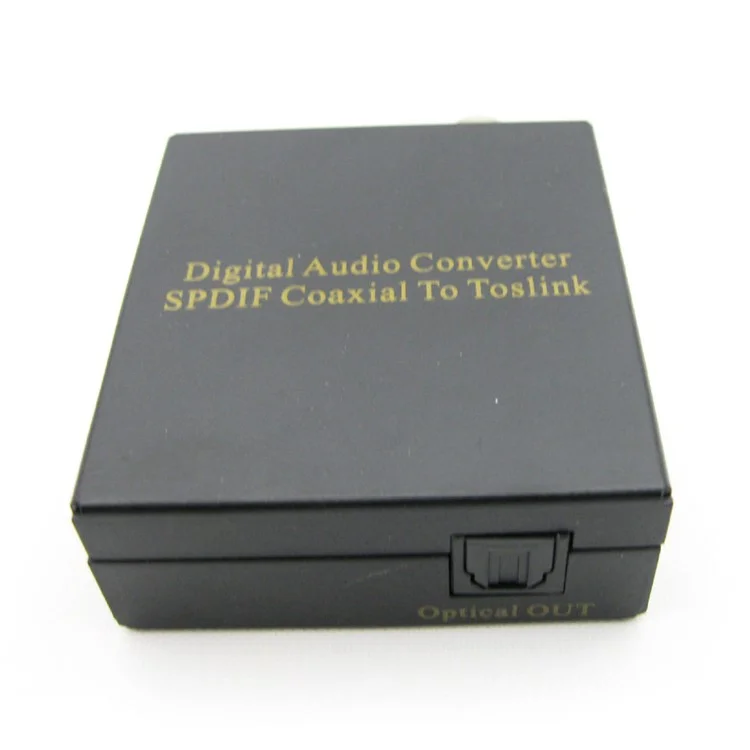

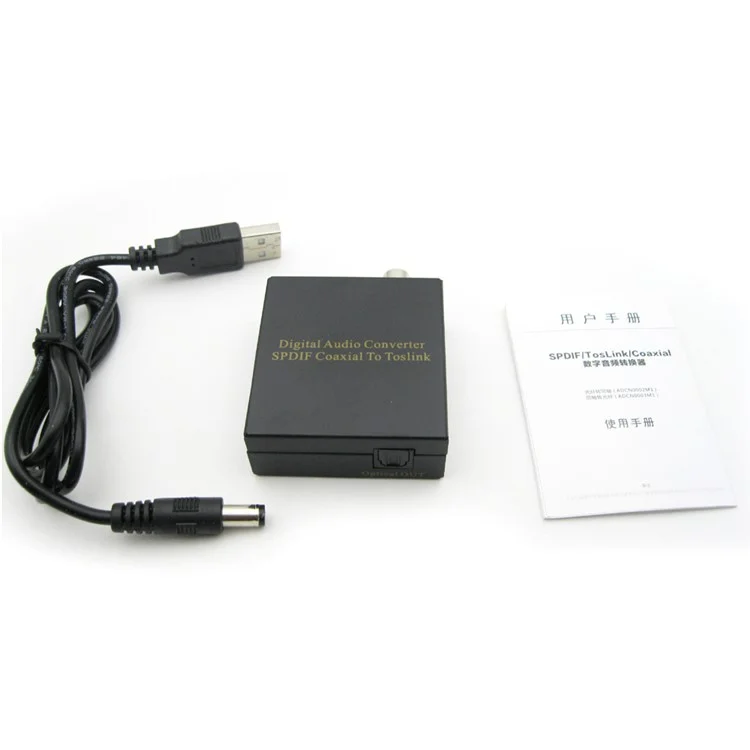

• SPDIF/TosLink/Coaxial digital audio converter convert the coaxial port to TosLink port. It can easily realize the switch between two interfaces.

• Used optical fiber cable loss less the 0.2Db/m, output distance up to 30m

• Support up to 192KHz sample rate

• It can support DC 5V-12V wide voltage input

Specification:

• Standard power input: 5V

• Power consumption: 2W

• Audio input: Coaxial

• Audio output: TosLink

• Sample rate: 32KHz/44.1KHz/48KHz/96KHz/192KHz

• SNR: 120DdB

• Channel separation: 85dB

• Frequency response: (20Hz - 20KHz) +/- 0.5db

• Operating: 0°C - 60°C

• Storage temperature: -20°C - 80°C

• Humidity: 20% - 80% RH (Non-considering)
