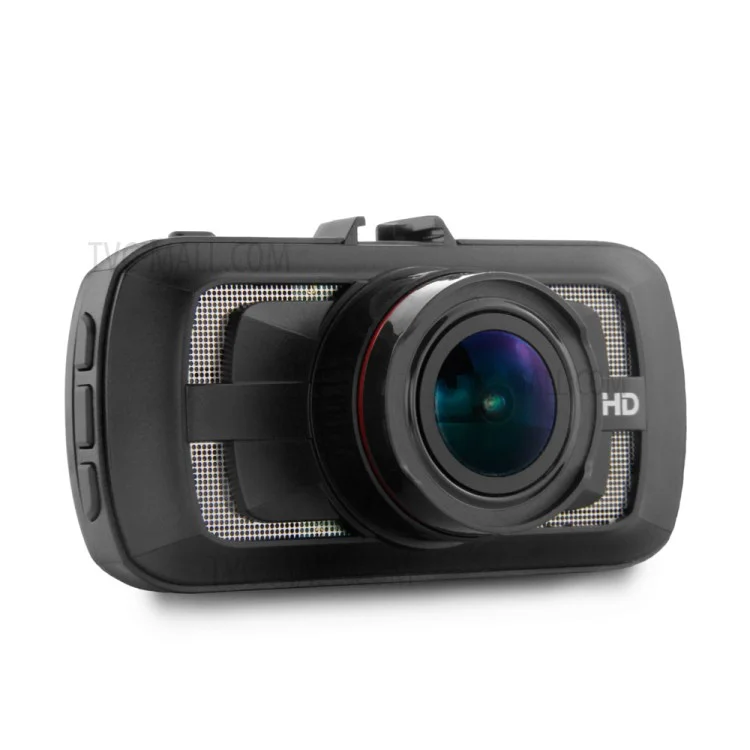

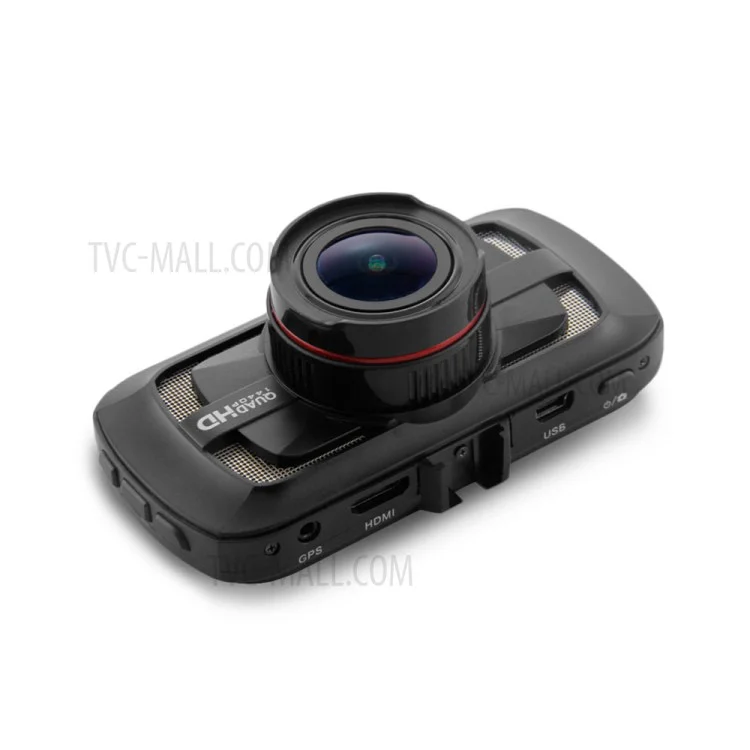

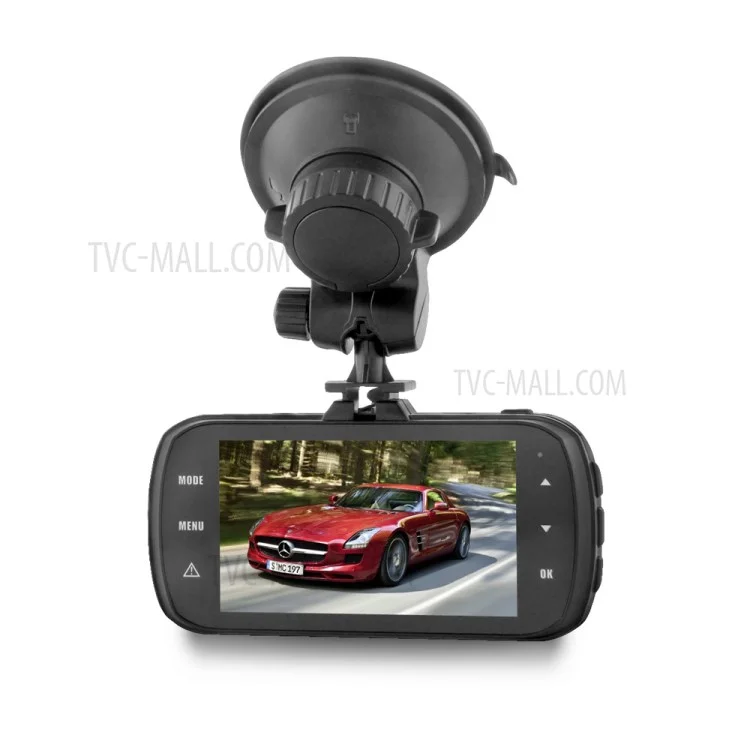

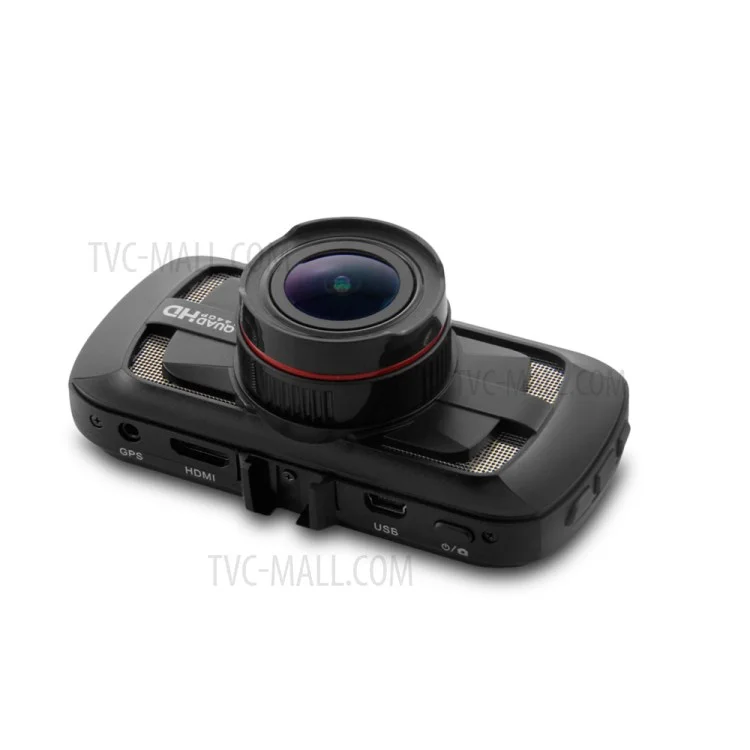

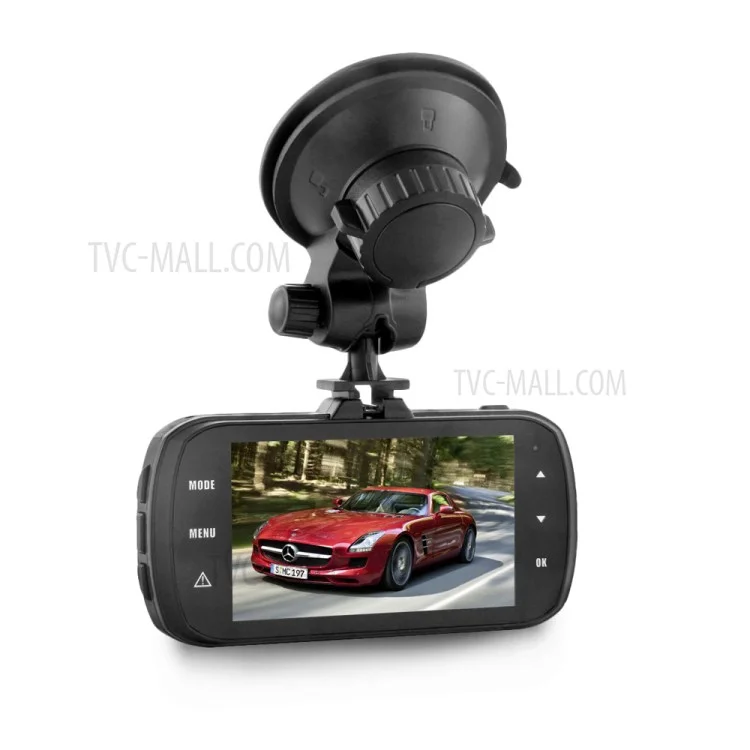

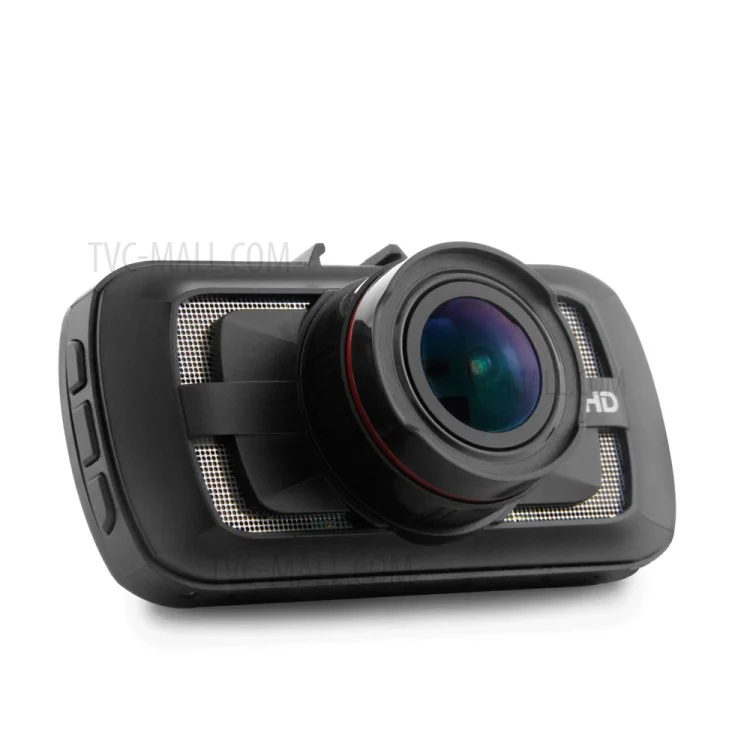

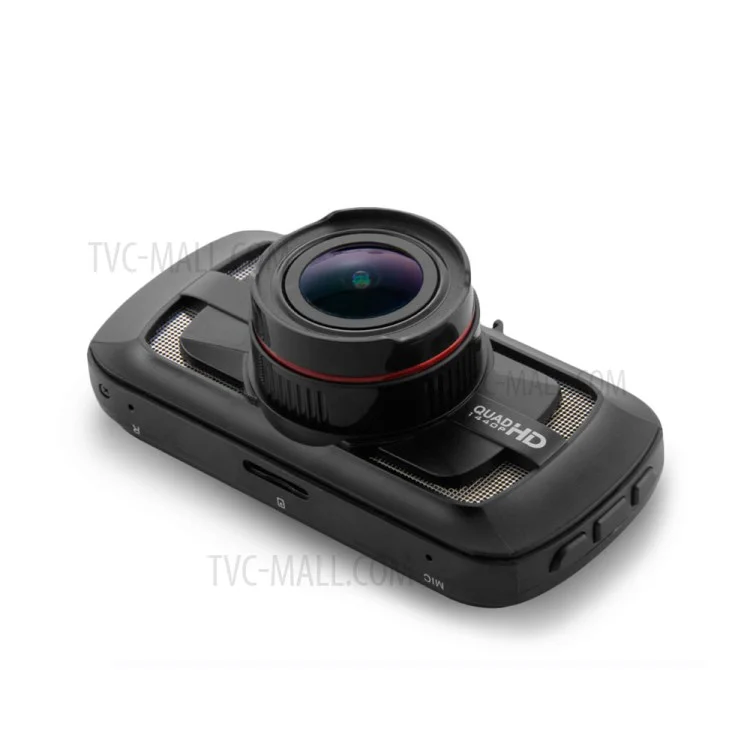

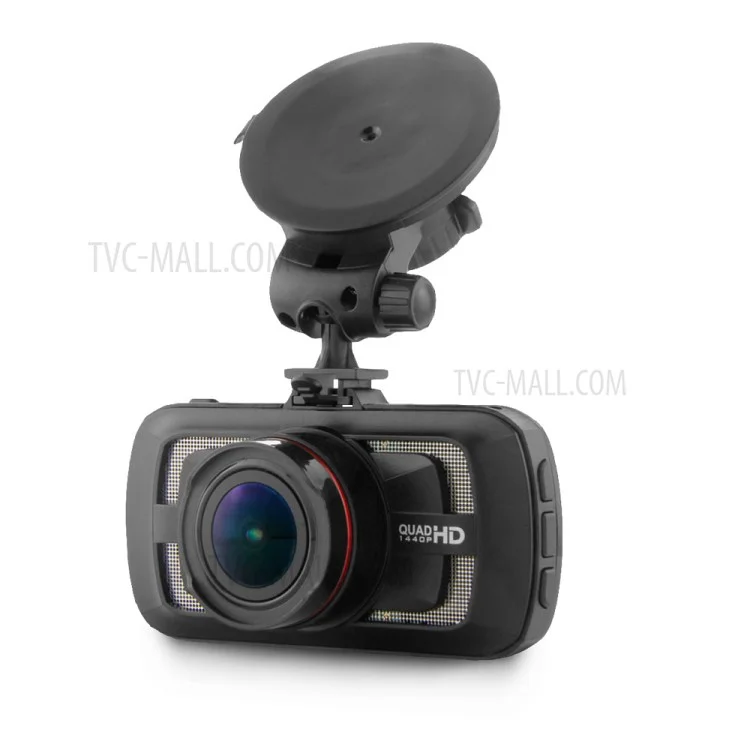

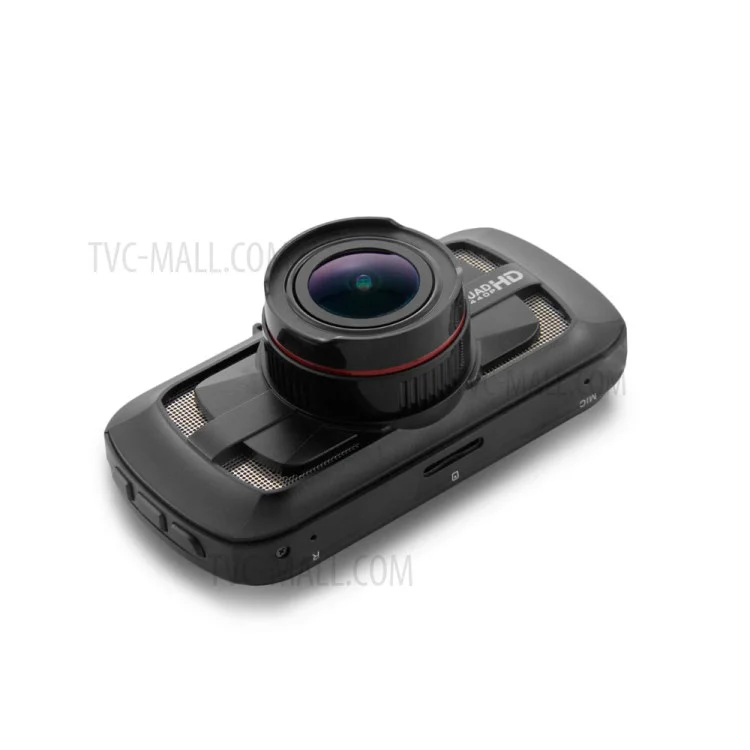

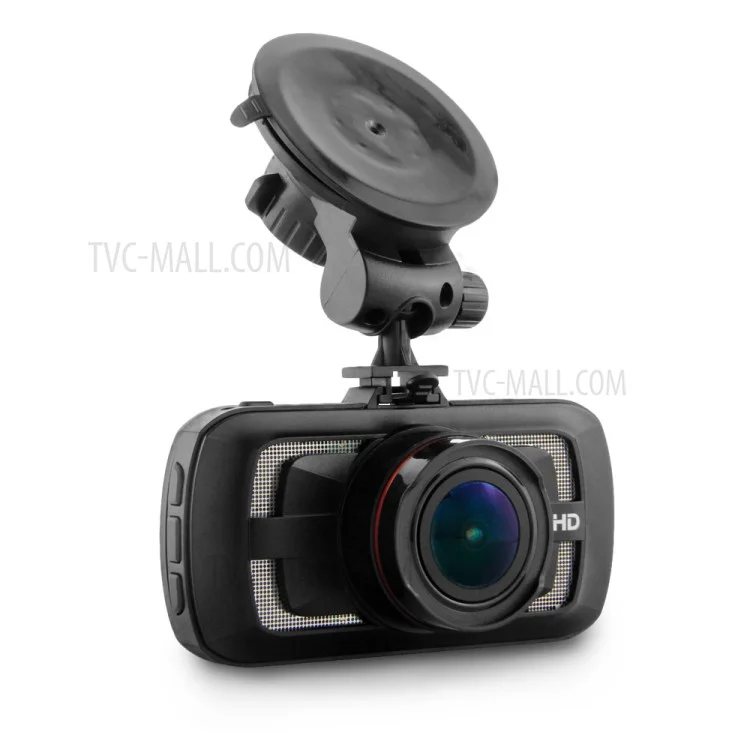

DAB205 Ambarella A12 CPU Car DVR 3" 5.0MP 170 Degree H.264 Motion Detection Car Camera No GPS Module - Black
170 degree super wide angle lens
2560*1440P/30fps high definition resolution
Advanced H.264 video compression technology

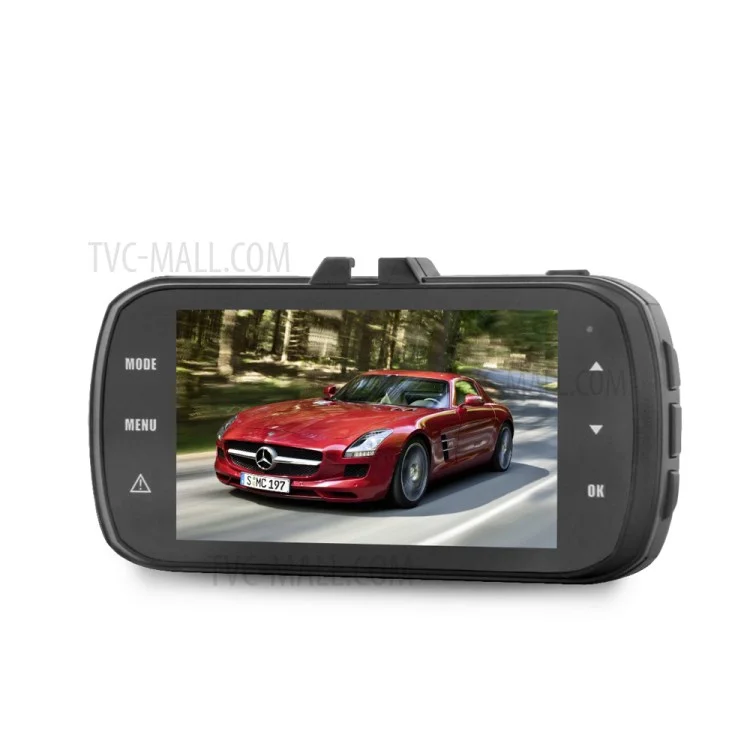

3.0 inch high resolution LCD, can view while recording
Support HDMI high quality video transmission
G-Sensor to keep the record of sensor data at emergency cannot be cover
Loop recording with seamless, does not leak second
Automatic circulating recording, it's able to set the record time for each file
Watching video simultaneous while driving, supporting on-spot play back
Time & date display changed, there is no need to reset when re-starts
Motion detection function
Automatically turn on/off function
Can charge and transmission through USB
Support maximum memory storage TF Card up to 512GB（TF Card not included)
Certified by CE, RoHS and FCC
Specifications
| Chipset | Ambarella A12 |
| Sensor | 4.0MP COMS |
| Screen size | 3.0 inch TFT LCD screen |
| Color | Black |
| Lens angle | 170 degree wide angle lens |
| HDR function | Yes |
| Lens aperture | F1.8 |
| Decode format | H.264 |
| Video resolution | 2560*1440P(30fps)2304*1296P(30fps)/1920*1080P |
| (60fps)/1920*1080P(30fps)/1280*720P(60fps) | |
| /HDR 2560*1440P 30fps /HDR 1920*1080P 30fps | |
| Video format | MP4 |
| Photo Resolution | 16M(4608*3456)14M(4384*3288) 8M(3264*2448) 4M(2688*1512) |
| Photo format | JPG |
| G-Sensor | Yes |
| Screen Resolution | 960*240 |
| Loop-cycle recording | Off/1 min/3 min/5 min |
| Frequency | 50Hz/60Hz |
| TV mode | PAL/NTSC |
| HDMI output | Yes |
| Language | English/Simplified Chinese/Traditional Chinese/Dutch/Polish/Russian/Italian/German/Portuguese |
| Time stamp | Yes |
| Auto-Power On | Yes |
| Auto-Power OFF | OFF/1 min/3 min/5 min |
| Microphone | Yes |

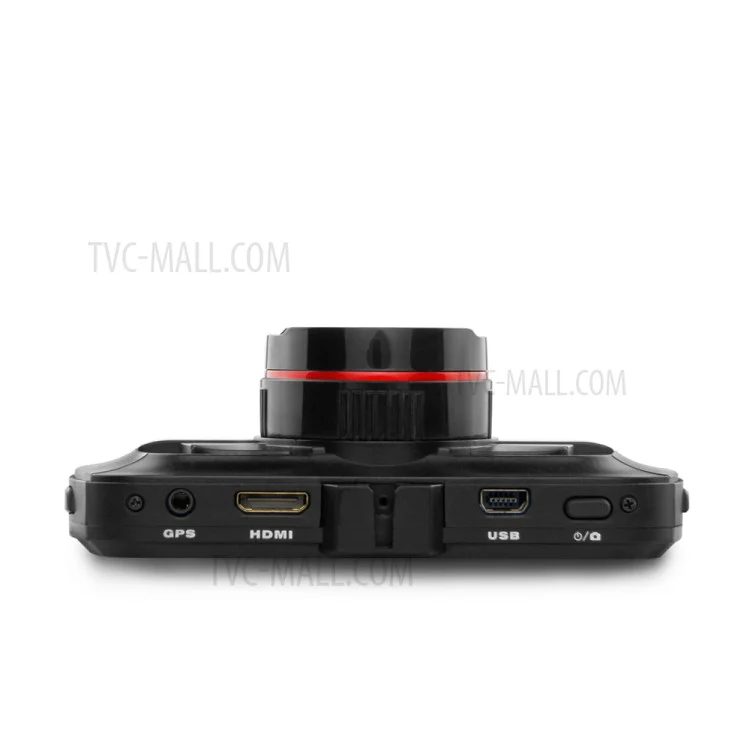

| AV interface | Mini HDMI |
| Data interface | Mini USB |
| Working voltage | DC 12~24V |
| Power interface | 5V 1.5A |
| Storage expansion | TF Card up to 512G(Not included) |
| Battery | Lithium battery 190mAh |
| Size | 10 x 5 x 3.6cm |
| Weight | 116g |
