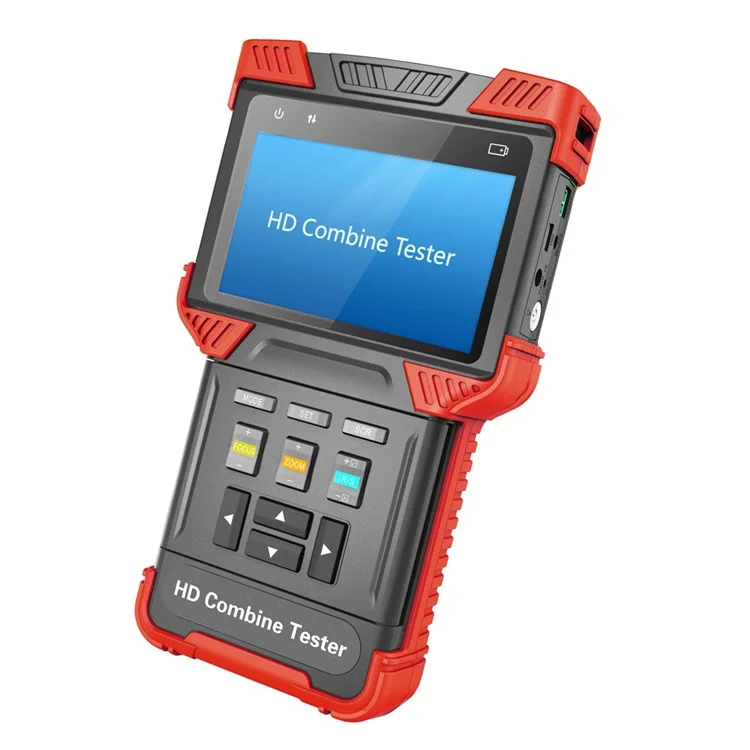

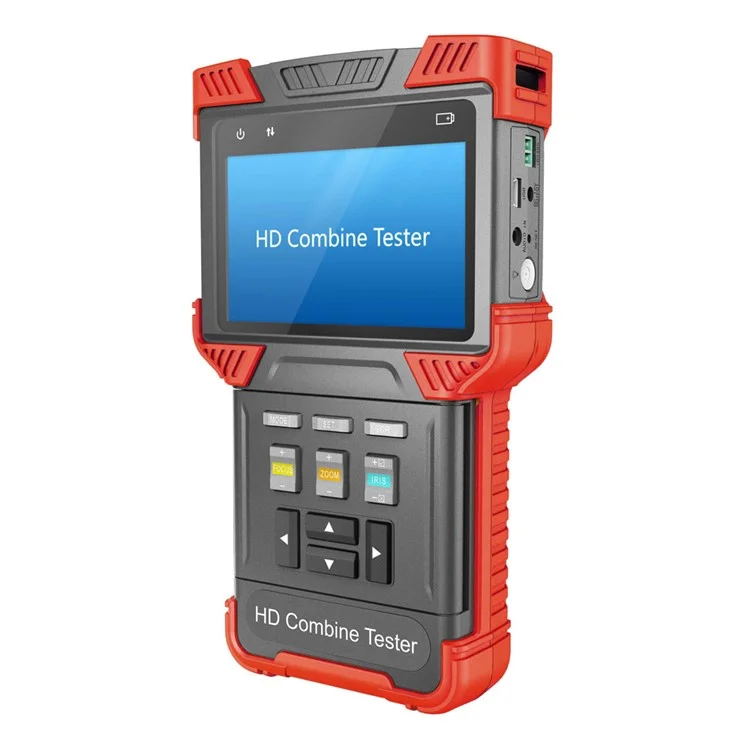

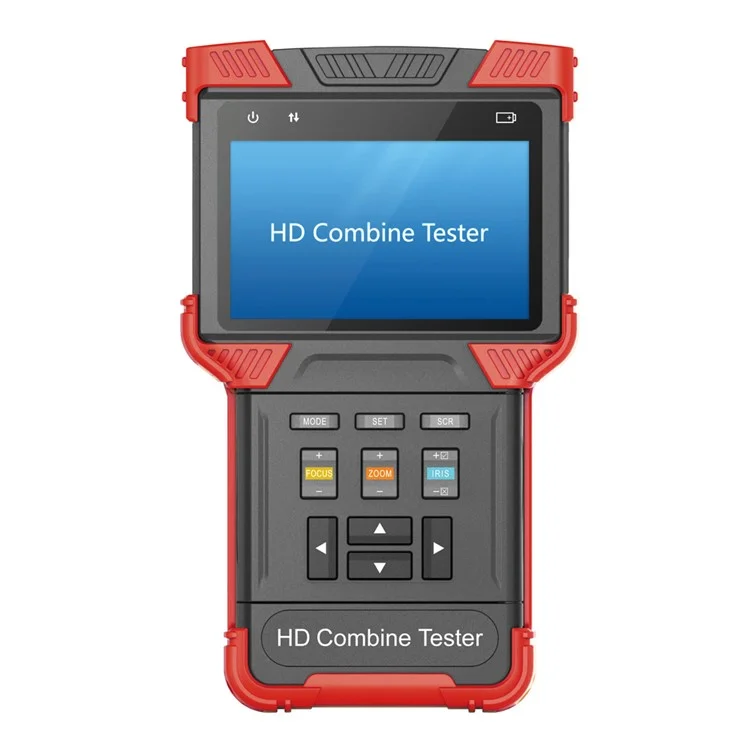

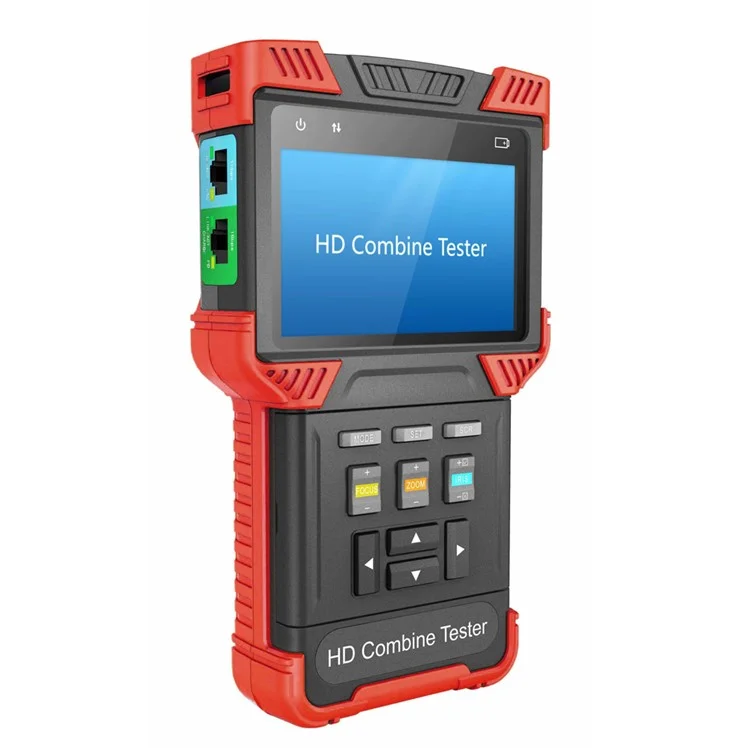

CCTV TVI + AHD + IPC + POE + TDR + Analog Camera 4.0-inch Handheld HD Combine Tester Support 1080P POE (T62-TVI+AHD) - EU Plug
High performance tester for both IP camera and Analog camera
Humanized design, one-handed performance
High definition 4.0 inch IPS display screen
Support analog high definition (HD-TVI) protocol
Unique POE function, one line connecting POE
Display IP camera image directly
Modify IP Address and other setting easily
Dual 1000M Ethernet port, advanced testing capability

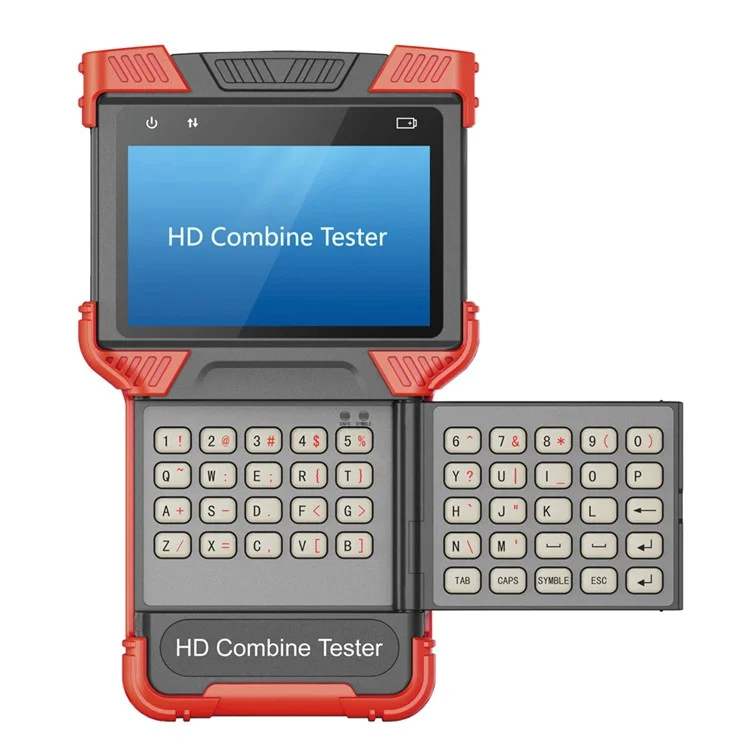

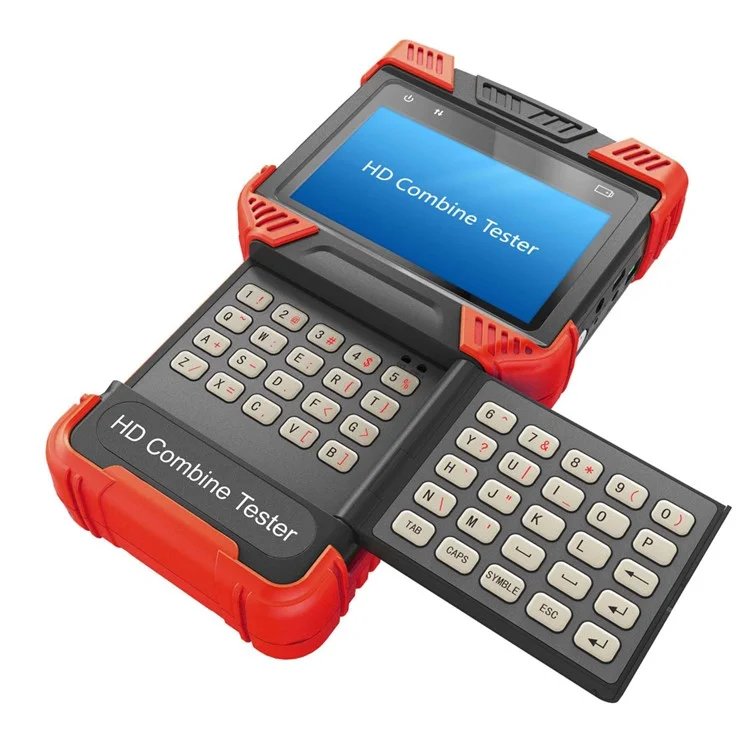

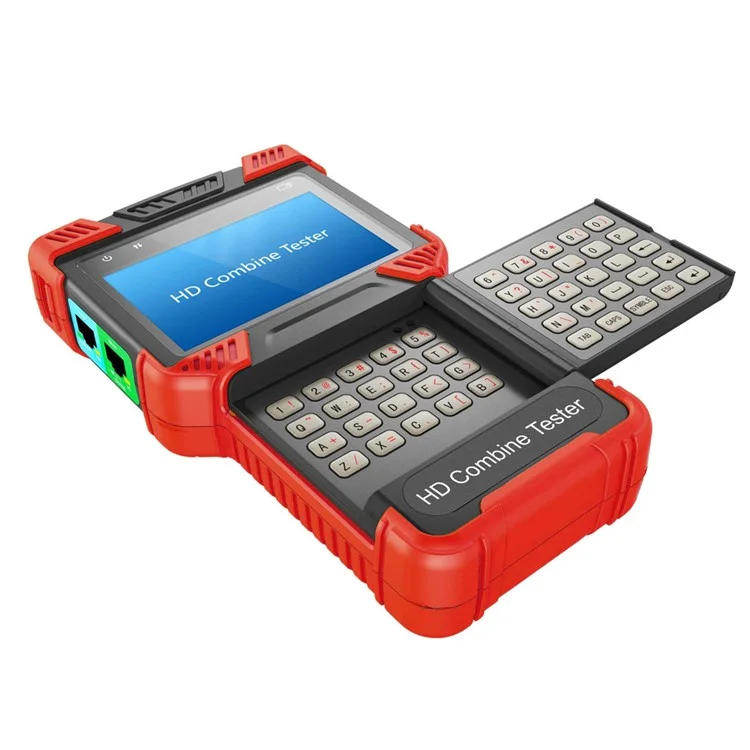

Flip keyboard design, gives you different operational orders
Soft protection design to protect from dropping and bumping
High precision of fault point location, accurate to 1 meter
POE connector: 48V output, to provide POE power for IP camera directly
PD electrical interface: measure POE supply voltage, meanwhile recharge for CCTV tester

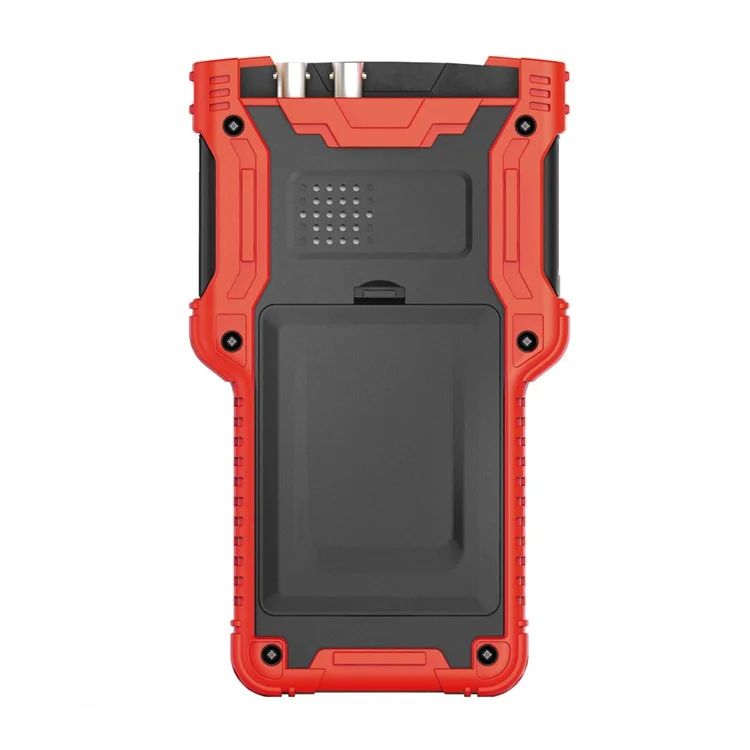

Replaceable lithium polymer battery
Dual LED lights, 12V 2A power supply
Specification:
Model | T62-AHD+TVI |
Physical Port | |

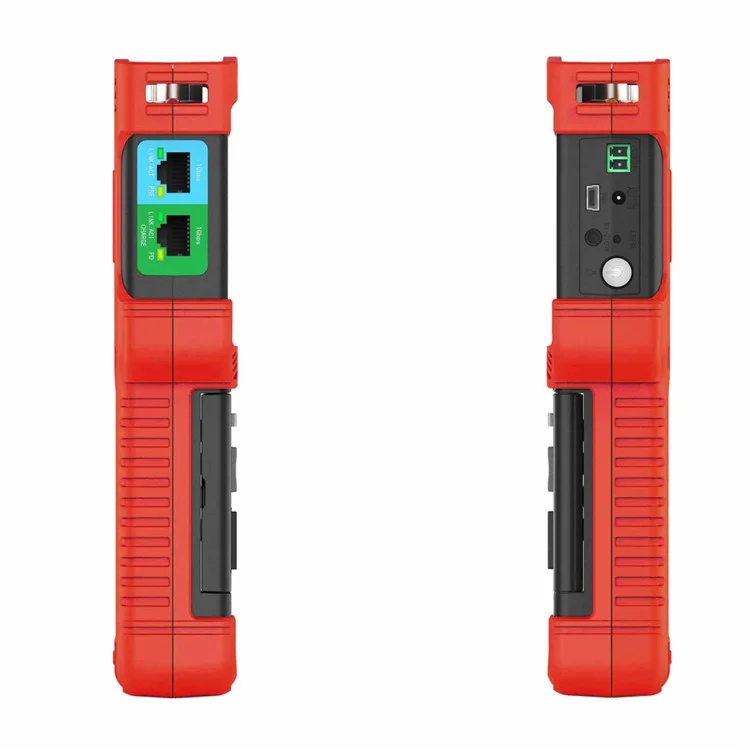

Network Port | 2 x 10/100/1000M RJ45 ports, support switch mode |

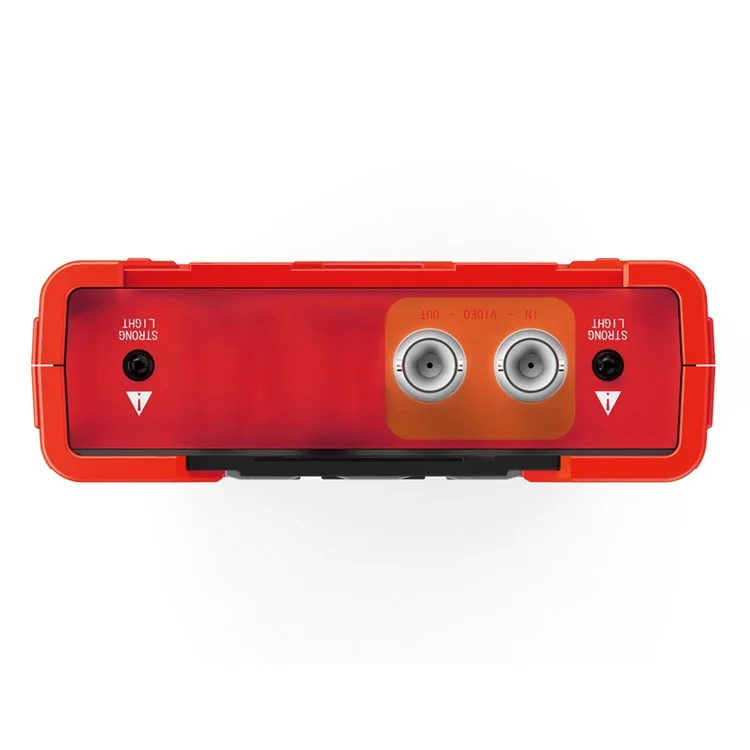

Function Port | 2 x BNC ports (Video IN and Video OUT), 1 x RS485, 1 x Audio In, 1 x USB, 1 x Reset |
IPC Test | |
Protocol | ONVIF 2.4.1, RTSP, RTP |
Ethernet Test | 10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test |
IP Configuration | static IP/ DHCP client/ DHCP server |
IPC Test | Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video (recording original data stream) |
HD AHD & TVI Analog Test | |
SD Signal Format | NTSC, PAL |
HD Video Signal | HD AHD & TVI |
Resolution | D1, 720P, 1080P |
Signal Level | 1Vpp |
Camera Test | Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video (H.264) |
HD AHD & TVI OSD | Camera configuration |
PTZ Control | |
Protocol | More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc. |
Baud Rate | 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps |
Detection | |
TDR Detection | 0~150m net cable detection, resolution 1m |
POE Test | PD test |
PSE test | |
Network Analyze | Sniff, list subnet, ping |
Analog Video Generator | Generate PAL/ NTSC video signal of various test pattern |
Record Playback | Support local playback |
System Specification | |
Screen | 4.0 inch IPS 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable |
Operation Method | Power key, 12 control keys, QWERTY flip keyboard with 45 keys |
Auto Power Off | Disable/ 5~60 minutes |
Keyboard Tone | Enable/ Disable |
Upgrade | Support online upgrade |
Power | |
Power Input | POE port by POE midspan |
POE Midspan | Input AC100~230V 50~60Hz, output 48V/15w |
Battery | Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh |
Power Output | POE (802.3af, 802.3at) |
DC12V 2A | |
Time | Charging time 3~4 hours, working time 10 hours |
Other | |
Internal Storage | 8GB flash |
LED Light | 2 x 35lm LED lights |
Working Temperature | -10°C~55°C |
Working Humidity | 30%~90% |
Dimensions | 190 x 113 x 37mm |
Weight | 1.6kg |
