• 2.4GHz ISM frequency band

• 660 feet transmission range without any holdback

• 8 groups of selectable channels

• Patented Wireless technology, avoiding the interference from other wireless device

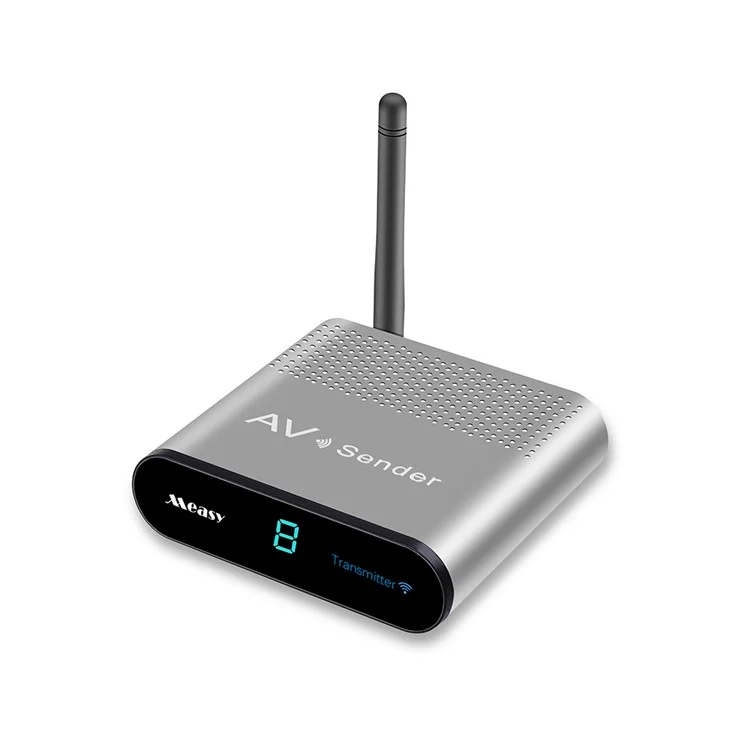

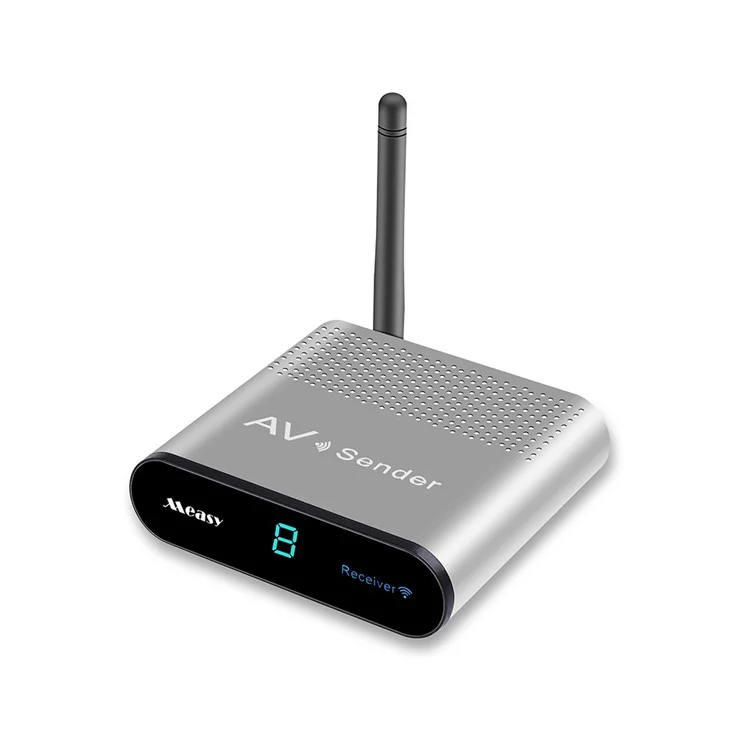

• A display screen indicate the selected channel

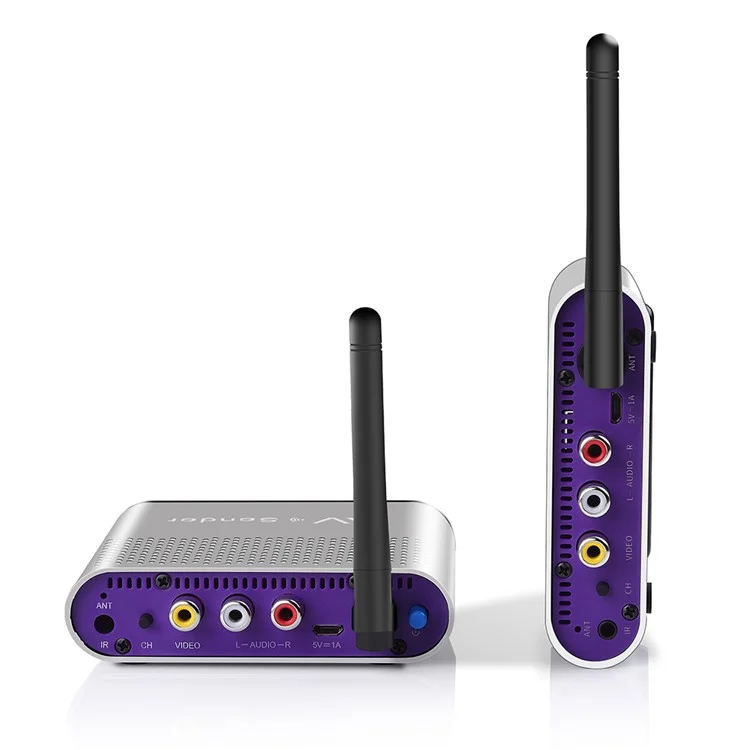

• Support 1 group of AV signal input/ output

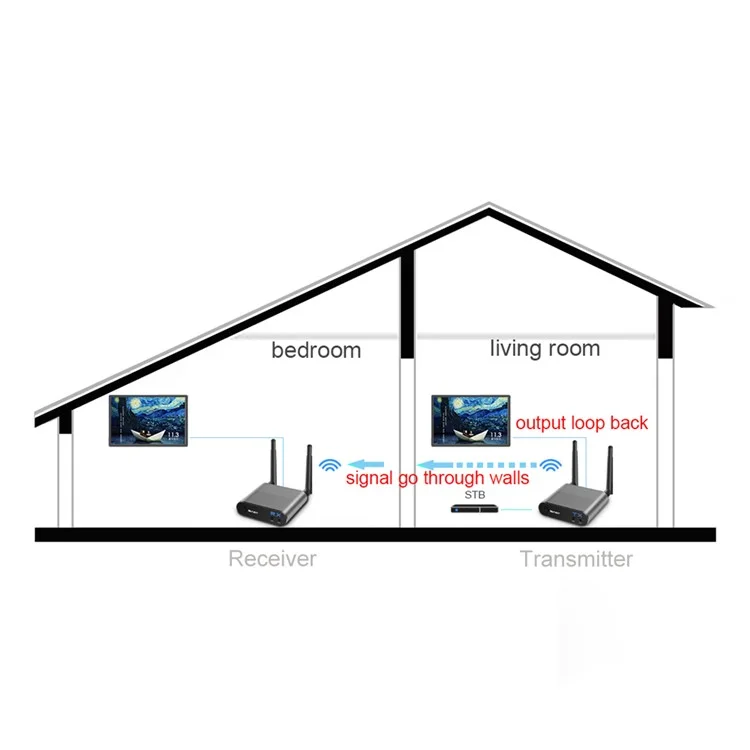

• Support 1 transmitter and more than one receivers at the same time, when keeping transmitter and receiver setting at the same channel

• Support any AV output devices, VCD, DVD, IPTV, DVR, Satellite receiver, CCTV Camera Digital STB etc

• Support superheterodyne 433MHz infrared remote signal transmission, while compatible for 38KHz infrared carrier control signal

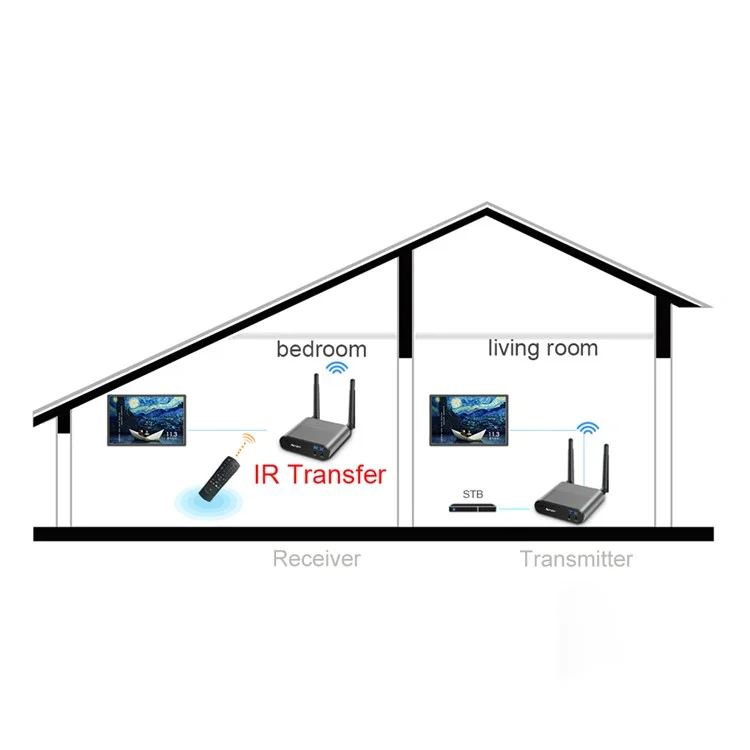

• Transmitter has built-in infrared signal emission or infrared transmission extension cable, so that you can remote control the signal from DVD, DVR, STB, IPTV, and other device.

• Support PAL/ NTSC system and stereo audio transmission

• Without installing any software, without any setting, plug and play

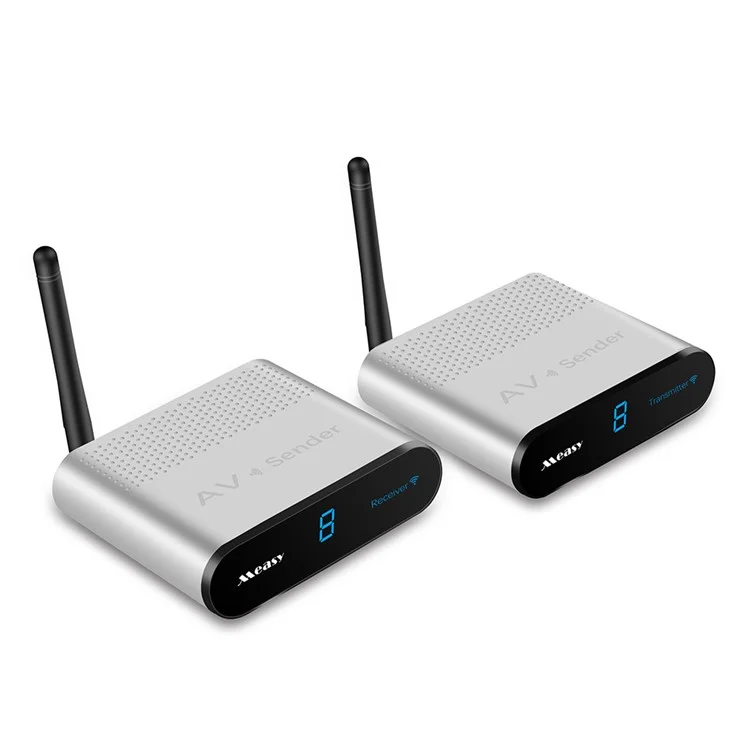

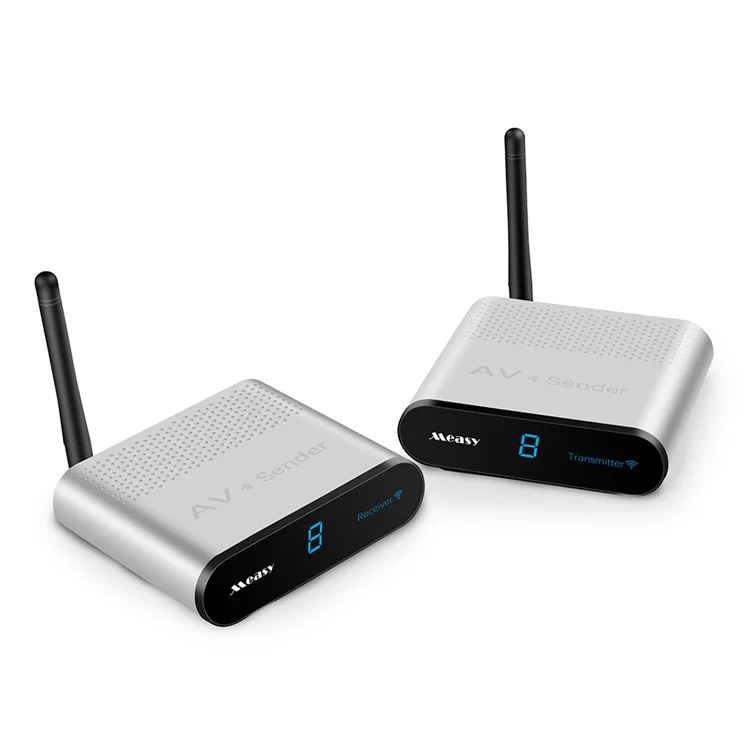

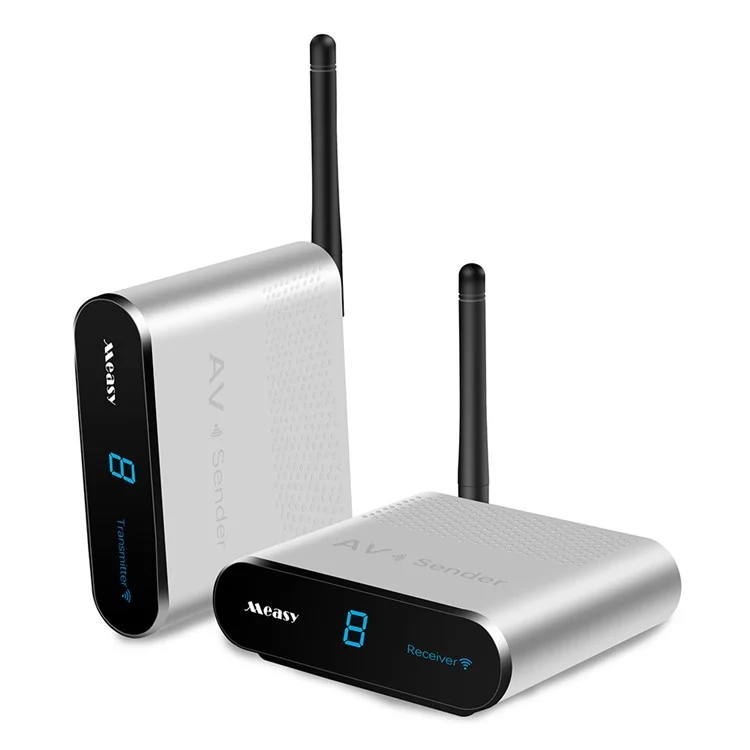

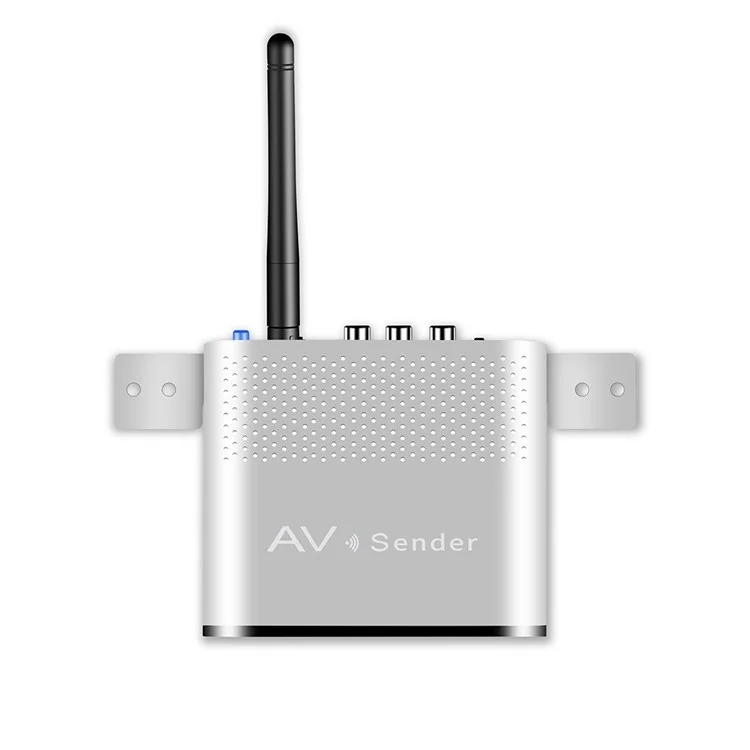

• Aluminum design, machine dimensions: 100x100x25mm

Specification:

• Frequency: 2.4GHz

• Sensitivity: -90dBm

• transmitted power: 50mW

• Channels: 8 groups

• Transmission range: 660 feet

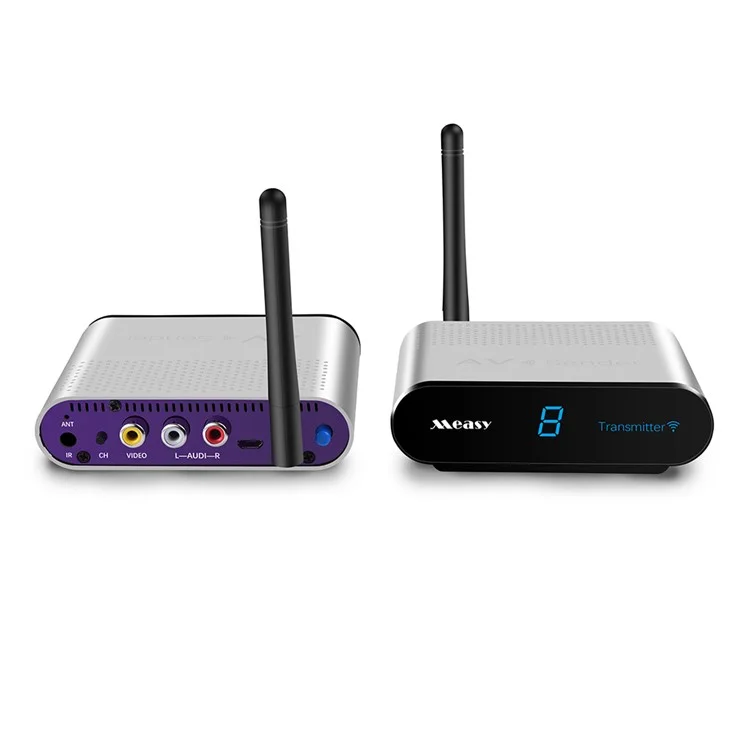

• AV input/output: RCA

• One video input/output: 1Vp-p（PAL/NTSC)

• One audio input/output: 1Vp-p（Stereo)

• Housing: Aluminum

• Power input: 5V/1000mA

• Machine size: 100x100x25mm

• Operating temperature: 32~104℉/0~40℃

• Storage temperature: -4~140℉/20~60℃

• Humidity: 20~90RH
