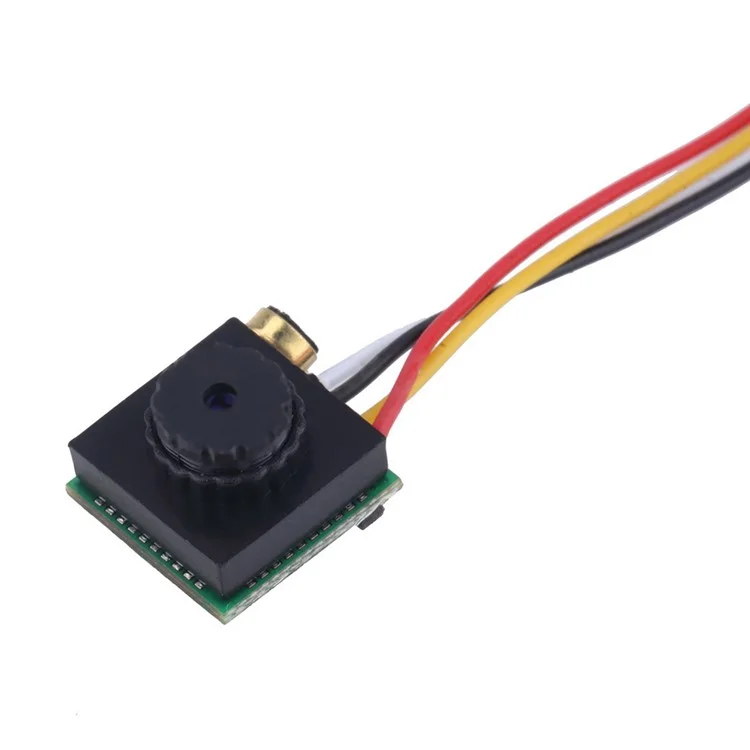

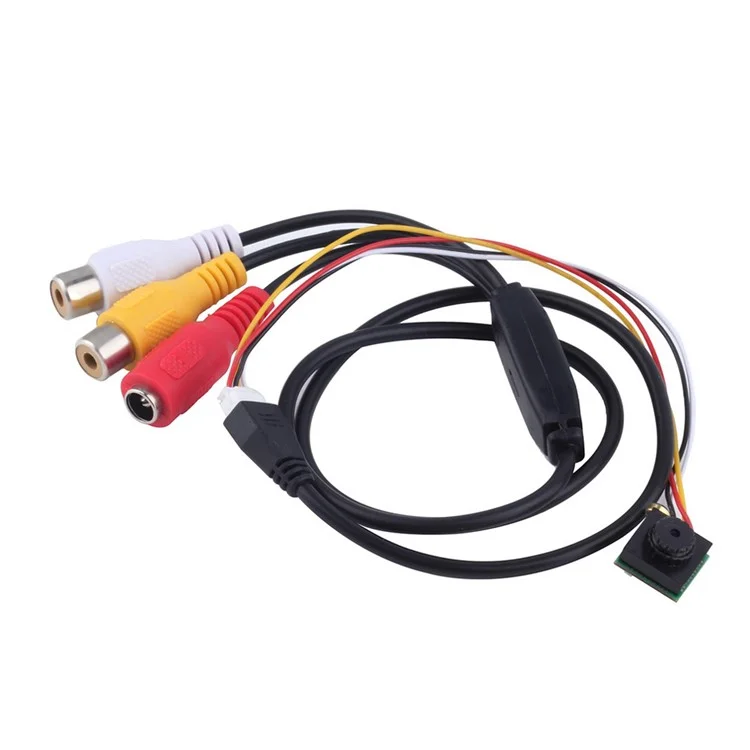

This surveillance pinhole video mini camera can be used as one component of surveillance systems in various needs.

• Support video and audio output

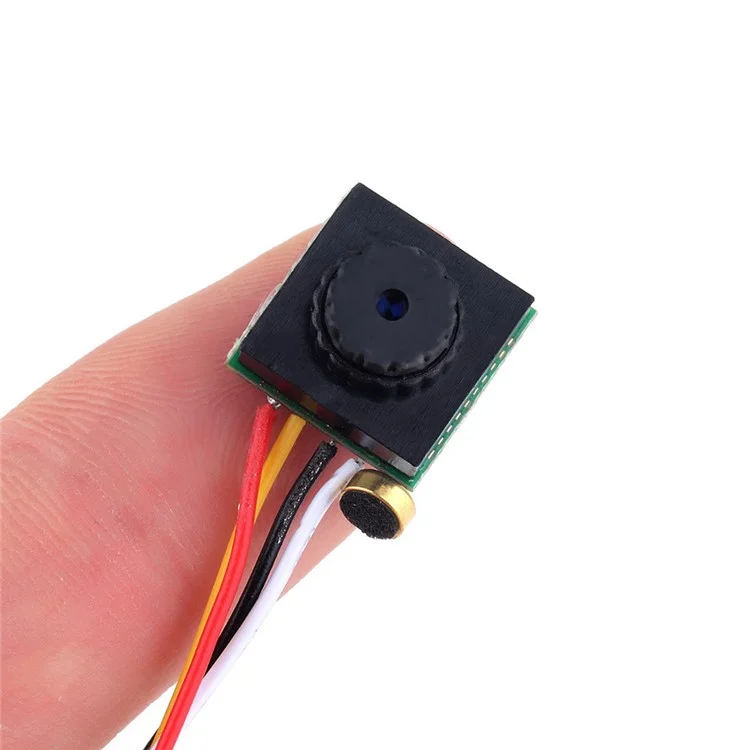

• Super compact design and small size

• Miniature covert shape, easy to hide and combine with other viewer

• DSP technique, high sensitive, steady and high clear image quality security system products

• Newest AGC circuitry processing technique, with electronic shutter, white balance, backlight compensation etc. functions

• Adopts high-quality pinhole lens, excellent image and performance

• Cut the wire and after DIY, it can easily turn to a super nice FPV camera

Specifications:

• Image Sensor: 1/4" CMOS

• Resolution: 1280 x 960

• Lens: 3.6mm

• Horizontal Resolution: 600TVL

• Minimum Illumination: 0.5 Lux

• S/N Ration: >48db

• Gama Characteristic: 0.45

• Refresh Rate: 60f/s

• Electronic Shutter: 1/60", 1/100,000s

• Operating Temperature: - 40 to 85 Centigrade

• Power Consumption: DC 5.5V-12V, 80mA + / - 10mA

• White Balance: Auto

• Audio Output: Single Track

• Video Output: 1vp-p 75 Ω; Negative

• Synchronizing System: Interior Synchronization

• Image Color: Color

• Item Dimensions: 12 x 12 x 8mm

• Weight: 41g
