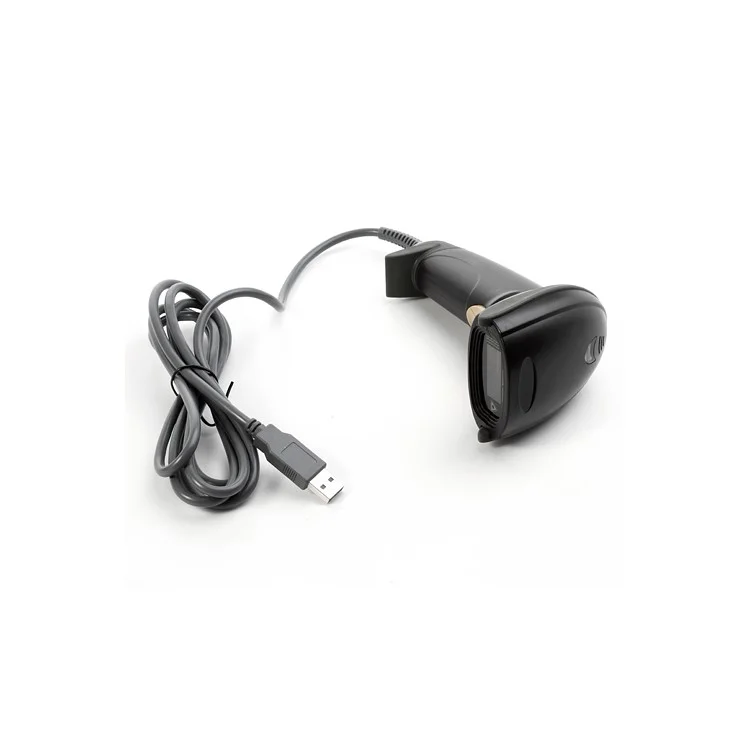

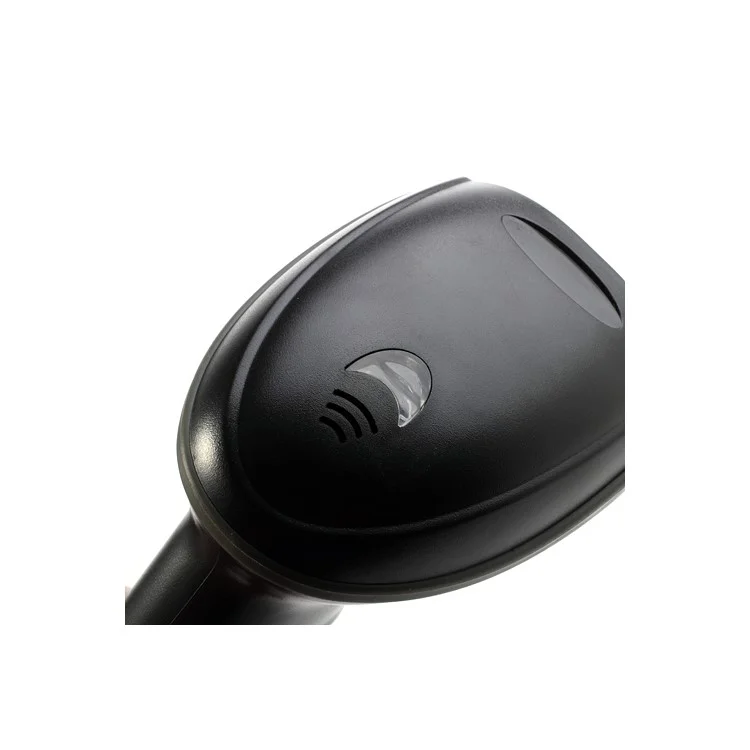

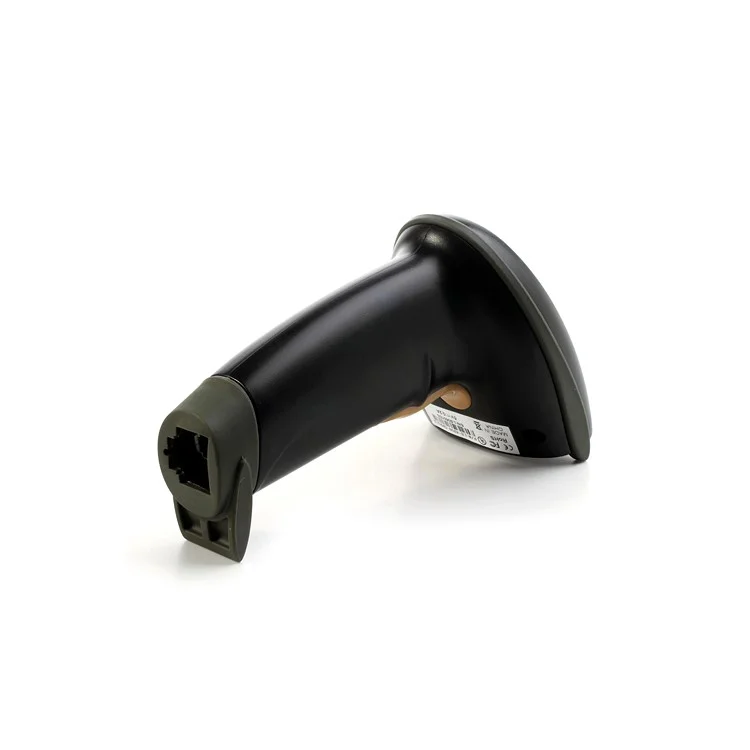

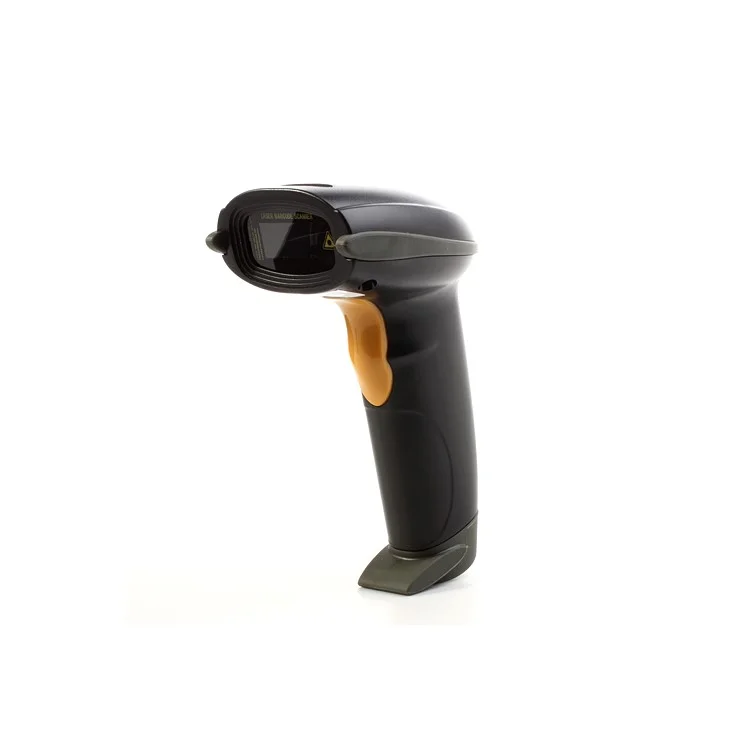

32-bit High Speed Handheld Automatic Laser Bar Code Scanner Reader MJ-4209
32-bit High Speed Handheld Automatic Laser Bar Code Scanner Reader MJ-4209
- High quality industrial-grade bar code scanner, up to IP-54 industrial level , waterproof, dustproof
- Apply the ARM 32-bit cortex CPU, high speed and reliable scranning
- Manual trigger / continuous scan / auto-sense(for choice), very comfortable operating
- Quick decoding capability with duzzy fuzzy information processing system
- Up to 10,000 hours laser life, press button with life of 50000 pressing times
- Durable rugged construction, anti-1.5M drop shock, long-term use to meet the 24 hours required
- High stable performance, enchacing the technoloy, with the best scanning light source, even can read some bad-qualified, damaged and dirty bar code
- Wide scanning range, can easily scan all UPC / EAN barcode as far as 300mm
- Plug-and-play, very convenient and simply to use, need hardly receive any training
- Supports multiple interfaces, supports RS232, USB, KBW, TTL, to ensure that your existing and future terminal equipment
- Ergonomic design offer comfortable operation and enhance the working efficiency
- Exquisite packing box gives the scanner fully protection and easier to display in the store or in the shop
- Electronical parameter: 5/3.3V±10%x100mA(idle:10mA)
- Scanner type: bi-directional
- CPU: ARM 32-bit cortex
- Light source: 650nm Visible laser diode
- Trigger Mode: handheld, Continuous , Auto sense
- Auto sense: time interval: 0.3S,
- Handheld/Auto sense switching time: 6S
- Promoting Mode: Buzzer & Indicator lamp
- Printing Contract : >25%
- Bit error rate :1/5millon ,1/20million
- Scanning width : 30cm
- Resolution:3.3mil;
- Scanning speed: 200scans/sec
- Scanning angle: rotor angel±30°, inclination! 45°, declination ± 60°
- Anti inference: industrial lighting or sun will not make any difference
- Decoding Capability: UPC/EAN, with complementary UPC/EAN, Code128, Code39, Code 39Full ASCII, Codabar, industrial /Interleaved 2 of 5, Code93, MSI, Codel 1, ISBN, ISSN, Chinapost, etc
- Button life : 50,000 times ; laser life: 10000 hours
- Drop test : 1.5m fall to concrete

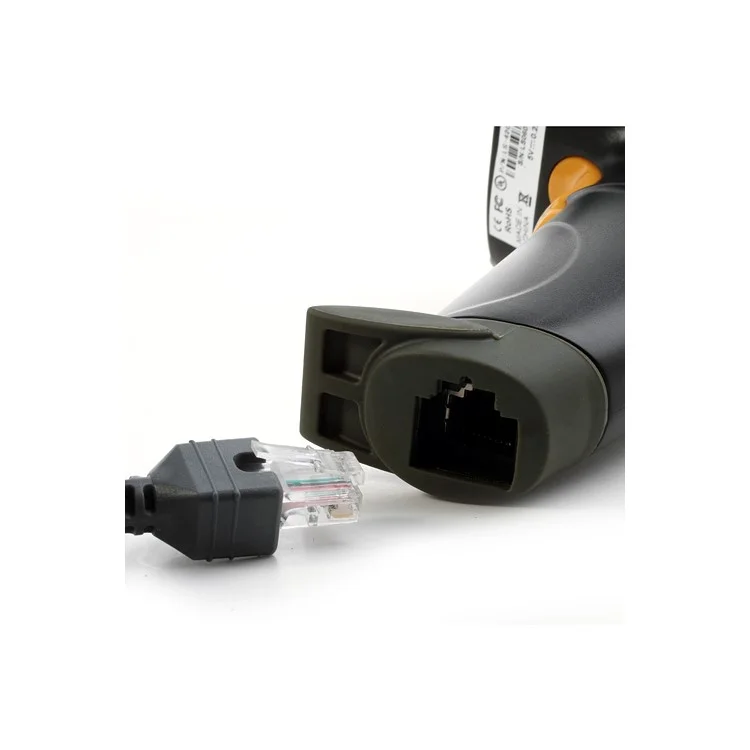

- Interface: TTL, RS232, KBW, USB(2m)
- Certificate : CE, FCC, RoHS, Class I
- 1 x 32-bit High Speed Handheld Automatic Laser Bar Code Scanner Reader MJ-4209
- 1 x USB Cable(approx. 200cm)
- 1 x User Manual
