Product Descriptions

Specifications

Reviews

Product Descriptions

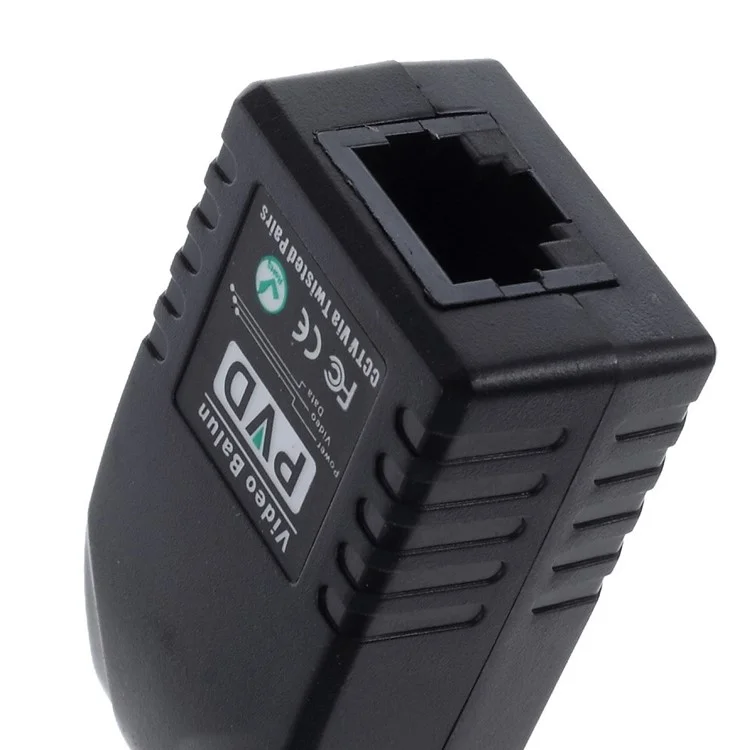

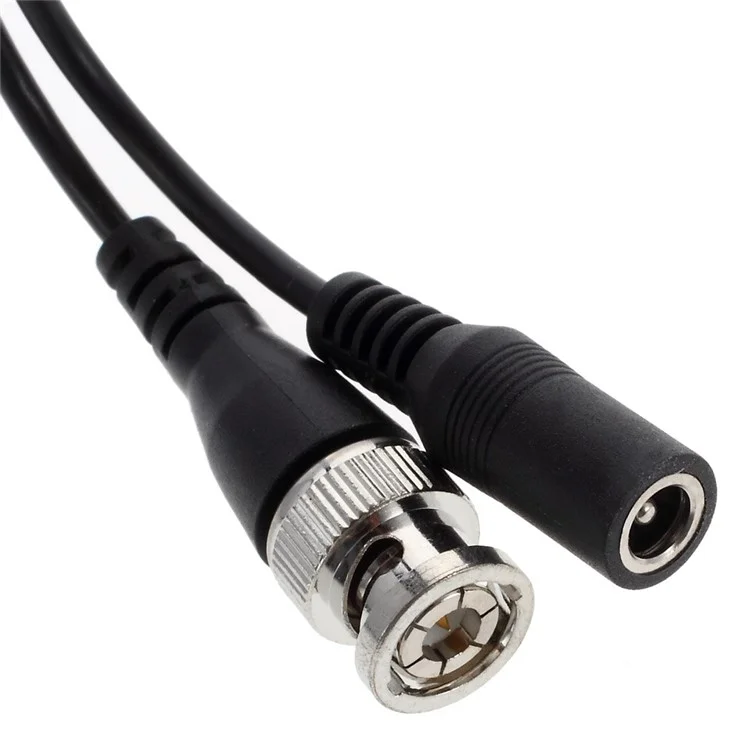

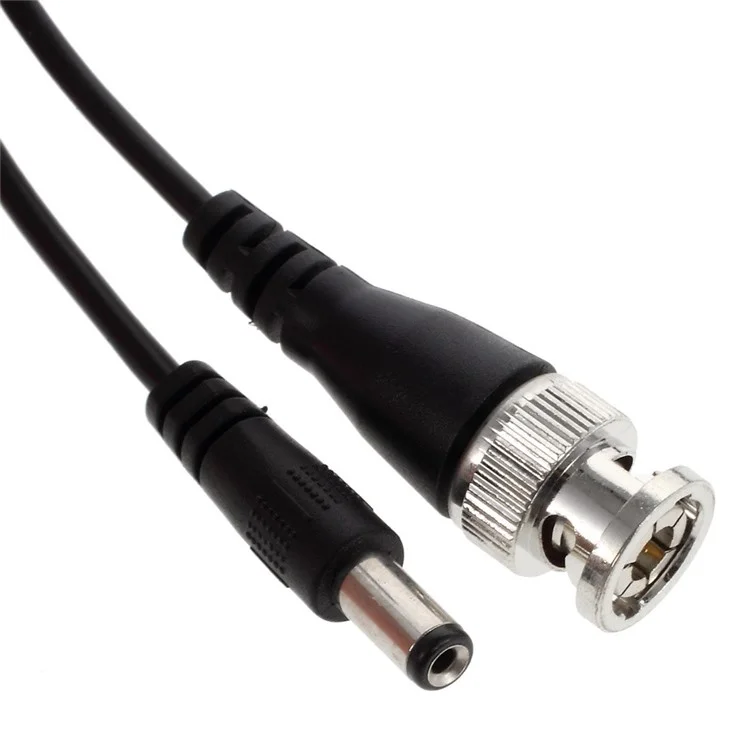

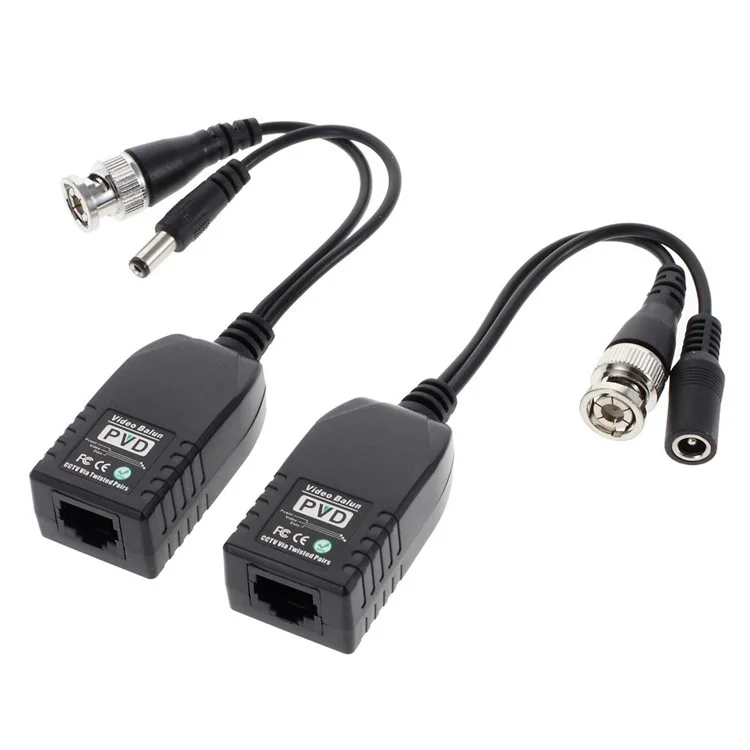

2PCS Enhanced 1CH Passive CCTV Video Balun for Power & Video RJ45 Interface with 10cm Cable PVD2001
  • Transmit full-motion CCTV video at distances up to 300m when used with any passive transceiver, up to 1000m with any active UPT video receiver

  • NTSC, PAL and SECAM video formats

  • 60 dB crosstalk and noise immunity

  • Compact size and easy for installation

  • Built-in transient suppression protection

  • Save cable cost 30% to 50%

  • With retail package

Specifications:

  • Frequency Response:DC 8MHz

  • Attenuation: 0.5 dB

  • CMRR: 60 dB

  • Impedance: BNC: 75 ohm; RJ45: 100 ohm

  • Working Temperature: -10℃ to +70℃

  • Storage Temperature: -30℃ to +70℃

  • Humidity: 0 to 95%

  • Dimension: 52mmx28mmx21mm (with 10cm cable)

  • Material: ABS Plastic

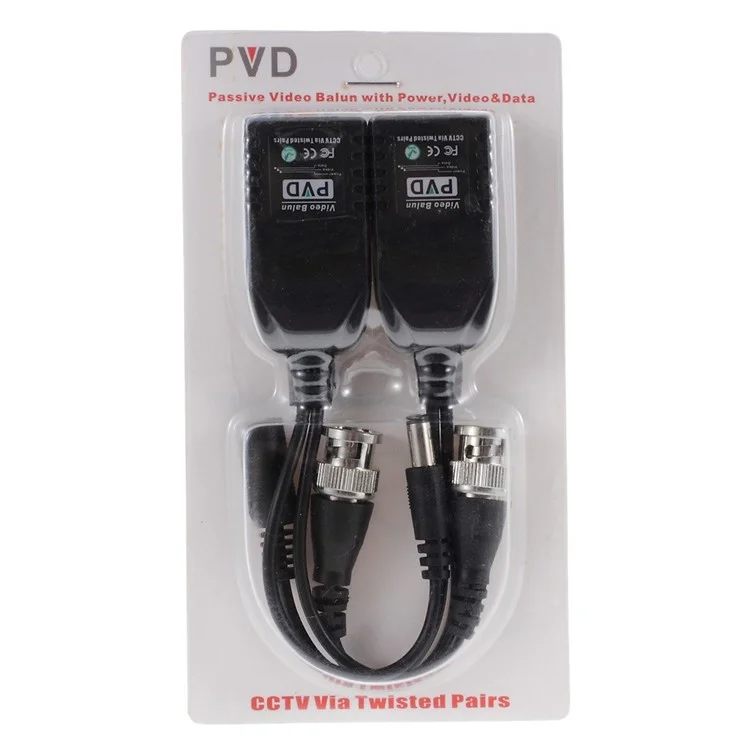

Package included:

  • 2 x Enhanced 1CH Passive CCTV Video Balun for Power & Video RJ45 Interface with 10cm Cable PVD2001
