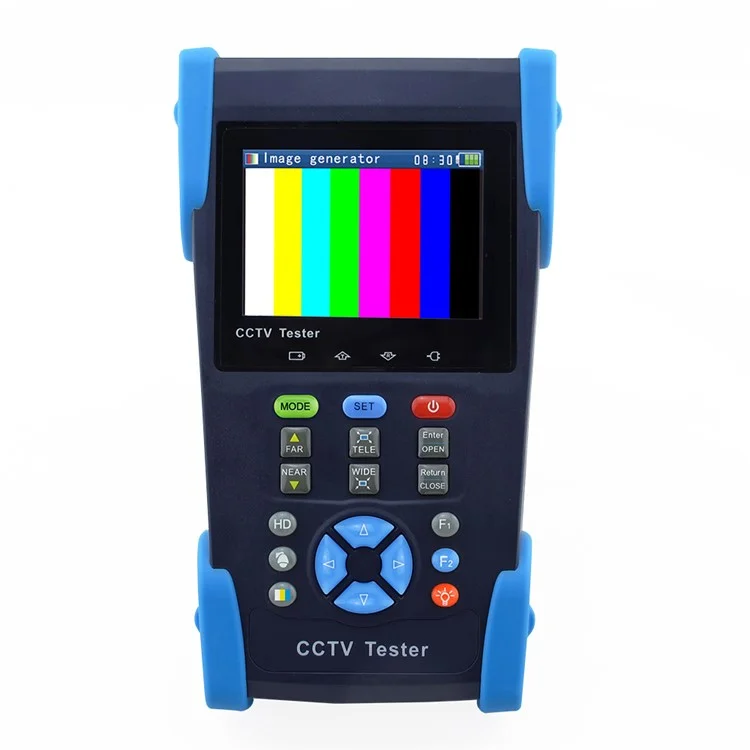

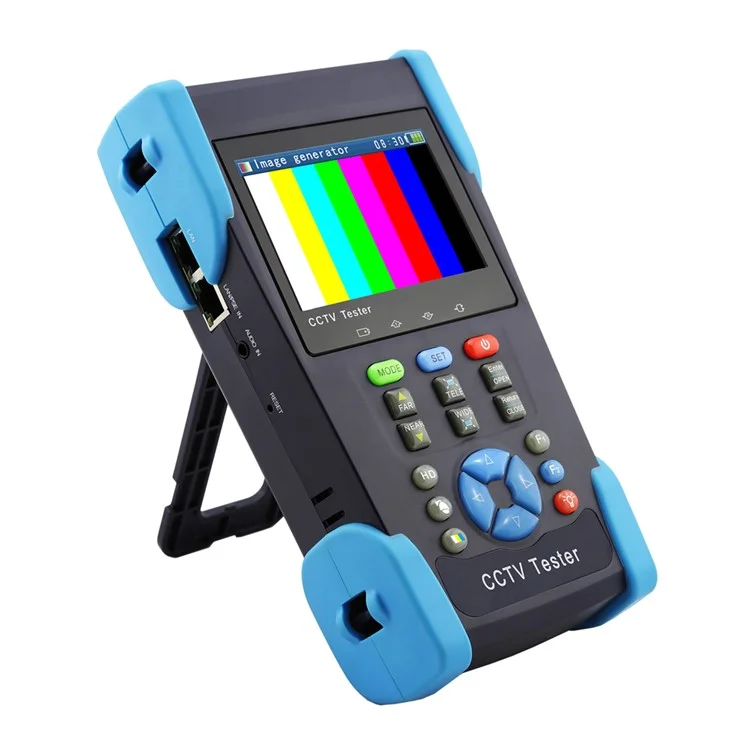

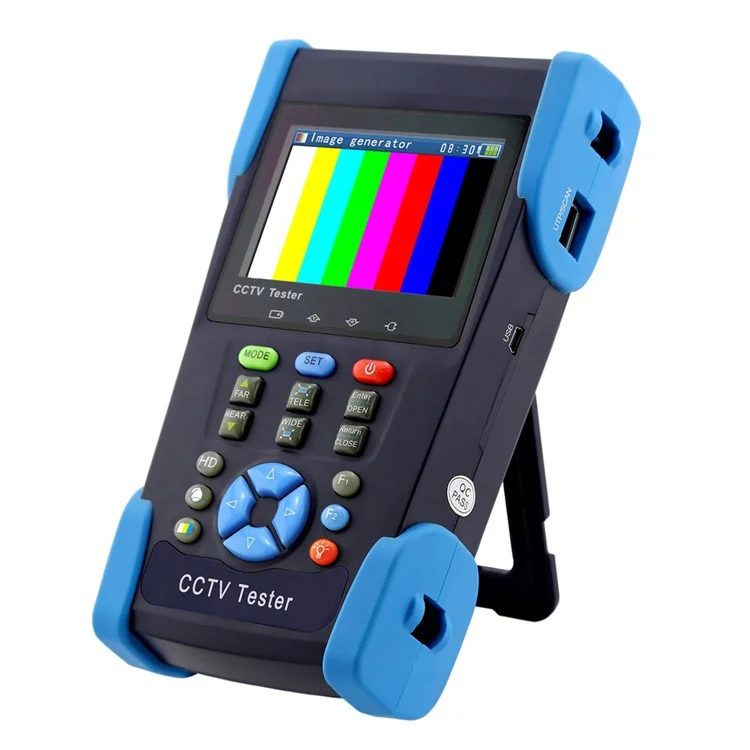

2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - EU Plug
2.8 inch digital TFT-LCD display, 480 (RGB) x 320 resolution
Support RS232 and RS485 communication
CVI/TVI/AHD coaxial camera image display, coaxial PTZ control and call up the camera OSD menu
Enhanced color bar generator, PAL/NTSC multi-system color bar video generator
PING testing: Test IP camera or Ethernet port of the other network equipment whether works normally, and check the IP address
PoE tester displays the power supply voltage and cable connection state
Built-in 3.7V 3000mAh lithium polymer battery
Low power consumption, working time lasts 11 hours
Handheld HD coaxial tester, easy to carry and operate
Specification:
Model | HD coaxial tester HD-2800 series |
Video Test | |
Signal mode | NTSC/PAL (Auto adapt) |
Display | 2.8 inch digital TFT-LCD, 480 (RGB) x 320 resolution |
LCD adjustment | Brightness, Contrast, Saturation adjustable |

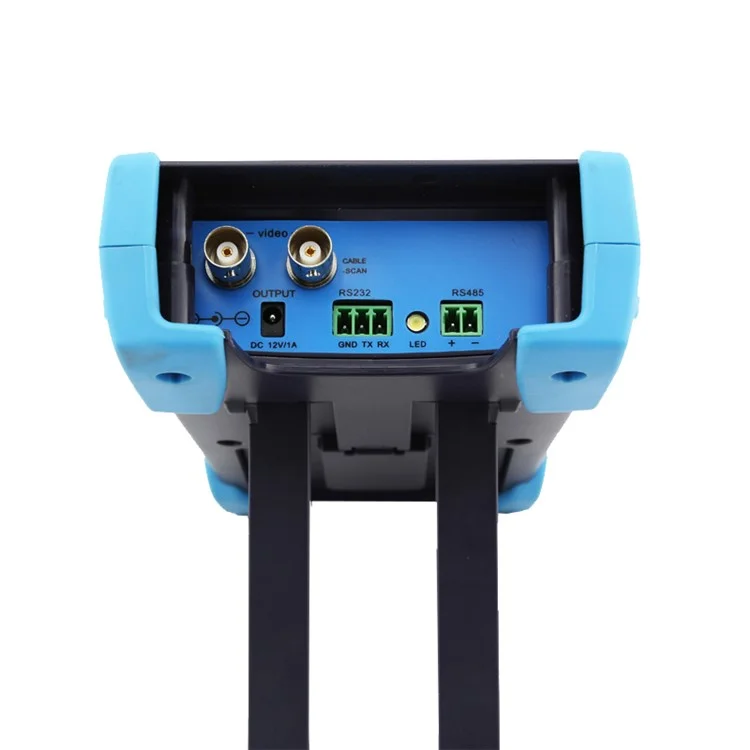

Video IN/OUT | 1 channel BNC Input & 1 channel Output |
Video Output Mode | 1.0 Vp-p |
Video Level test | |
Level test | Video signals measured in IRE or mV (not for TVI, CVI, AHD) |
PTZ controller | |
Communication | Support RS232 and RS485 |
PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
Baud Rate | 600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps |
Video signal generation | |
Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green ,blue, white and black color) |
UTP cable tester | |

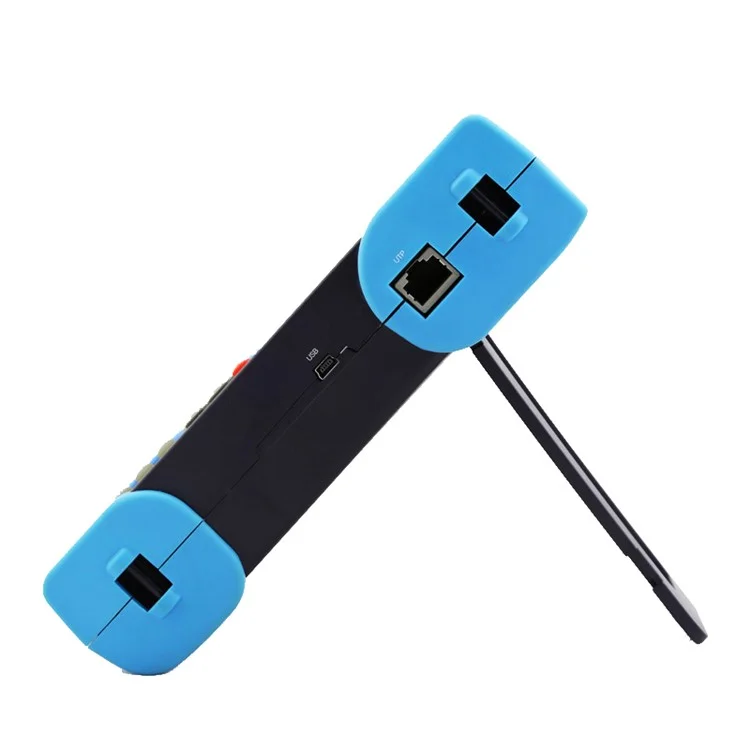

UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box |
DC12V 1A power output | |
DC12V power output | Output DC12V 1A power for camera |
Audio input test | |

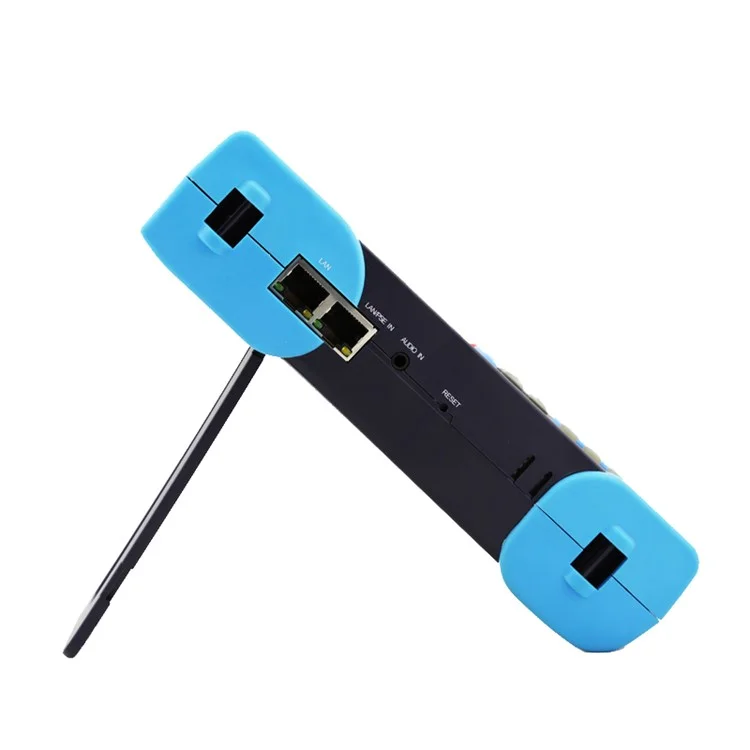

Audio input test | test the pickup and other audio equipment on the front-end |
RS485 data analysis | |
Data Monitor | Captures and analyzes the command data from controlling device |
CVI test | |
CVI video signal test | 1 channel CVI in (BNC interface) support 720p 25/30/50/60fps, 1080p 25/30fps, camera OSD menu control over coaxial cable |
TVI test | |
TVI video signal test | (BNC interface) support 720p 25/30/50/60fps, 1080p 25/30fps, camera OSD menu control over coaxial cable |
AHD test | |
AHD video signal test | 1 channel AHD in (BNC interface) support AHD 2.0 version, 720p 25/30fps,1080p 25/30fps, camera OSD menu control over coaxial cable |
Port flicker | |
Port flicker | Find the connected POE port quickly |
| IP scan, Link monitor, PING test | |
IP scan | Find out the connected IP camera or the other network equipment IP address quickly |
Link monitor | Check the IP address whether is occupied |
PING testing | Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address |
PoE tester | |
PoE tester | Display the power supply voltage and cable connection states |
POWER | |
Power Adapter | DC 5V (1.5A) |
Battery | Built-in 3.7V Lithium polymer battery, 3000mAh |
Rechargeable | After charging 3-4 hour, working time lasts 11 hours |
Low Consumption | Energy saving technology, the battery icon real-time display |
Parameter | |
Operation setting | English/Chinese and other languages OSD menu |
Auto off | 5-60 (mins) |
Keytone | On/Off |
General | |
Working Temperature | -10°C~+50°C |
Working Humidity | 30%~ 90% |
Dimension/Weight | 194mm x 112mm x 48mm / 540g |
