• Support AP and repeater mode

• Simple installation assistant provides fast and no fault installation

• Support SSID broadcast control

• Support WMM and wmm-apsd

• Wireless AP with an extended range of 300 meters

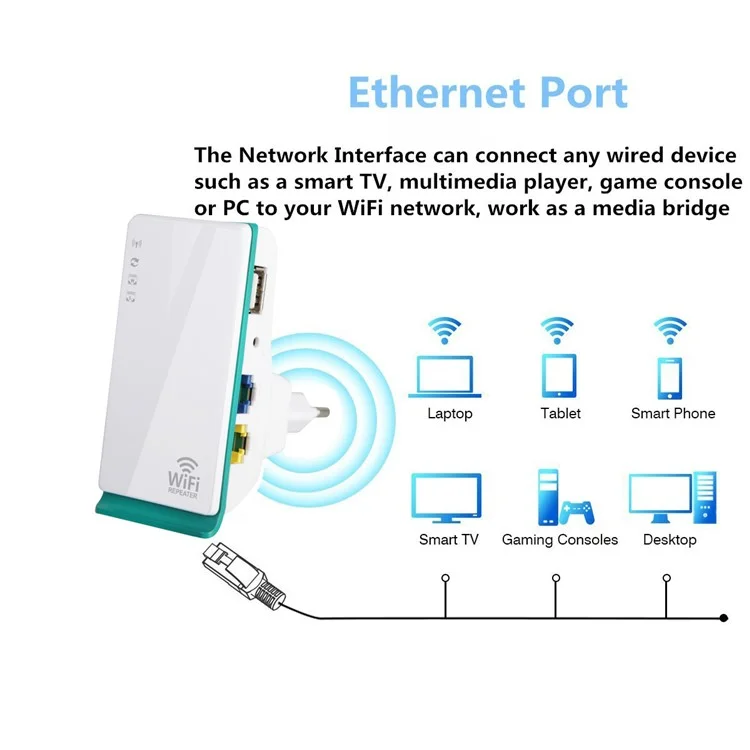

• Provide a LAN interface and an WAN interface

• Support long distance transmission, indoor 100 meters, outdoor 300 meters (depending on the surrounding environment)

• WLAN 802.11n Wireless high-speed access to up to 300Mbps, ideal video streaming, online games and network phone

• Support 64/128 / 152 bit WEP, WPA (TKIP conforms to 128 point / AES)

• Support MIC, vena dilation, shared key authentication, IEEE 802.1x

• The user interface supports free Web software updates, supports remote / local Web management and Web upgrades

• Support Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIXor Linux

Specifications:

• Plug type: EU Plug

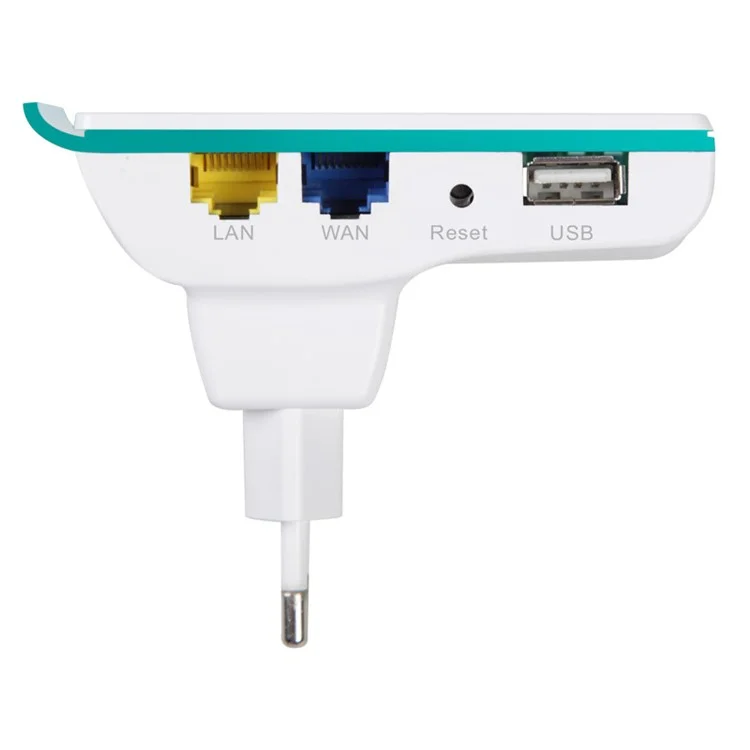

• Interface: 1 WAN 1 LAN (RJ45 port)

• Antenna type: 2 x 2dBi antenna

• Power input: AC100 ~ 240V

• Power output: DC5V  500mA

• Working temperature: 0°C~40°C (32°F~104°F)

• Storage temperature: - 40°C~70°C(-40°F~158°F)

• Relative humidity: 10% to 90%, non condensation

• Storage humidity: 5% to 95% non condensation

• Chipset: mt7628kn

• Standard: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Wireless signal rate: 11n: Up to 300Mbps (Dynamic); 11g: Up to 54Mbps (Dynamic); 11b: Up to 11Mbps (Dynamic)

• Frequency range: 2.4-2.4835GHz

• Radio transmit power: < 20dbm (EIRP)

• Modulation type: DBPSK, DQPSK, CCK, OFDM

• Receiver sensitivity: 135m:- 68dbm @ 10% PER; 54m:- 68dbm @ 10% PER; 11m:- 85dBm @ 8% PER

• Wireless security: 64/128 bit wepwpa / WPA2, WPA-PSK/WPA2-PSK (TKIP, AES)
