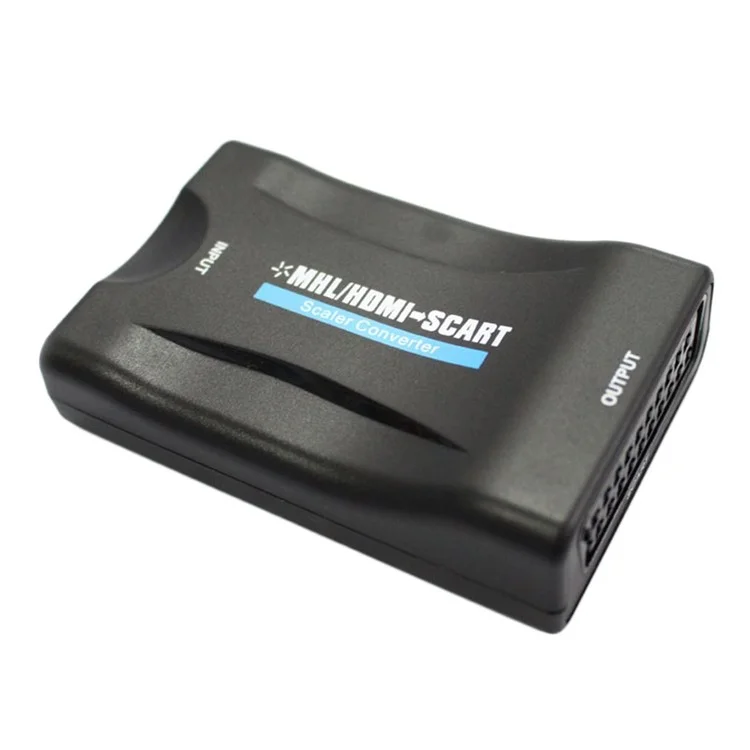

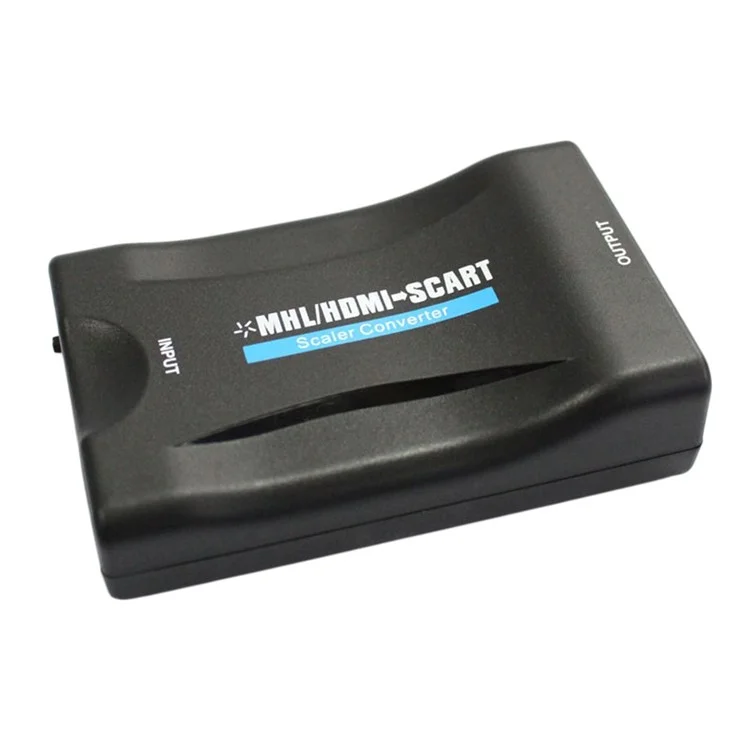

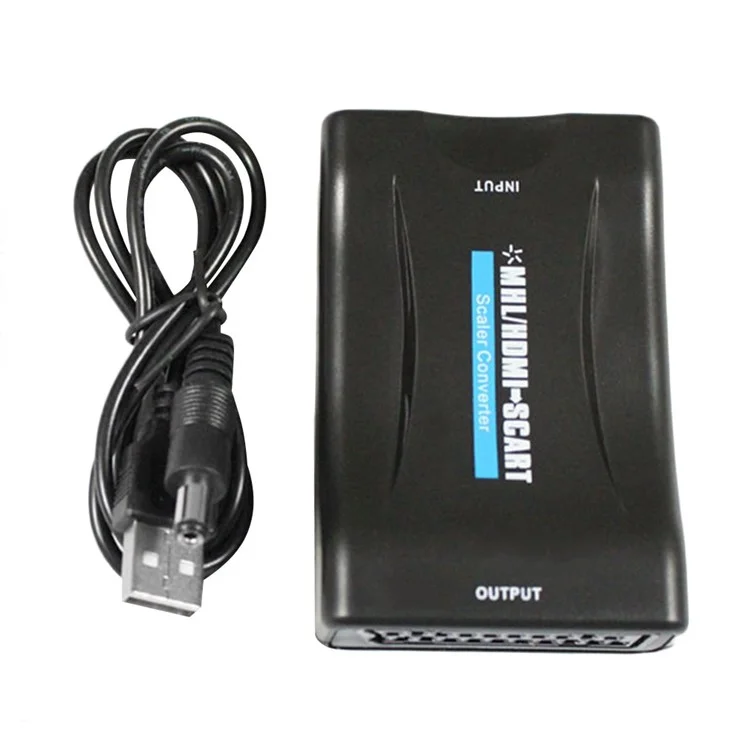

The HDMI to SCART converter which will convert digital HDMI video and audio signal to composite video signal and the FL / FR stereo audio signal, while support DVI system sideline signals. Help users convert the high quality of the HDMI signal to normal CVBS signal (standard-definition 480i, 576i,), so that can play on CRT TV, VHS VCR, DVD recorders, etc.

• The HDMI to SCART converter support NTSC and PAL TV formats output.

• No need to install drivers, portable, flexible, plug and play

• High quality scaling technology for input resolutions .

• Support NTSC and PAL two standard TV formats output

• Compatible with HDMI1.3

• Share your smart phone photos, music and movies on the TV

Specifications:

• Output voltage: 5V

• Power Consumption (Max):3W

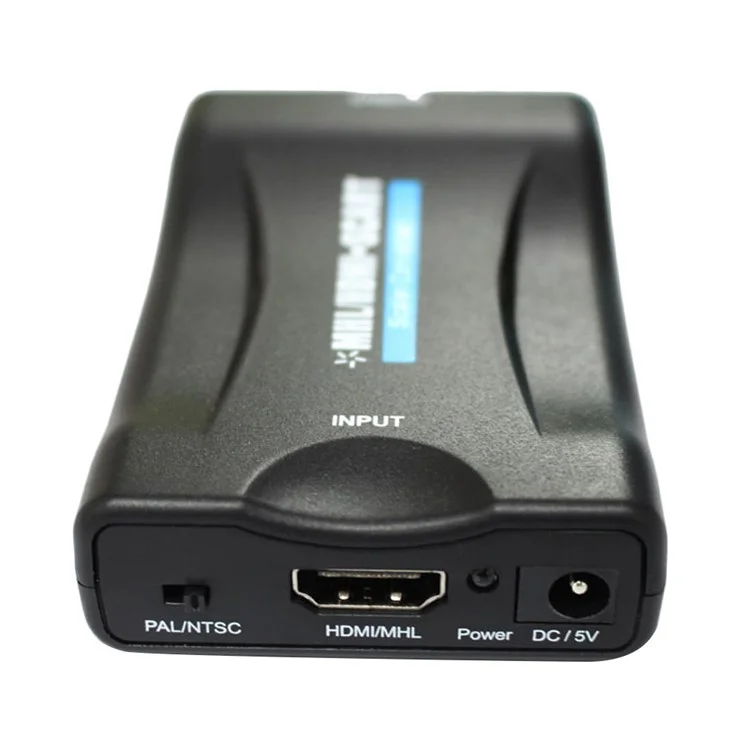

• Input ports: 1xHDMI.

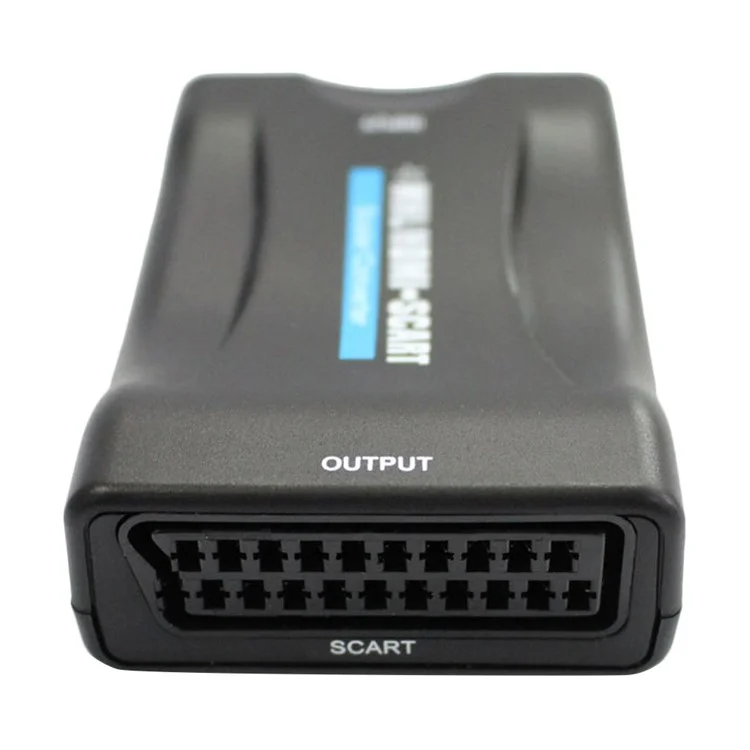

• Output ports: 1xSCART

• Input Resolution: 640x480@60Hz,800x600@60Hz,

• 1024x768@60Hz,1280x720@60Hz,

• 1280x1024@60Hz,1360x768@60Hz,

• 1600x1200@60Hz,1920x1080@60Hz,

• 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,

• 720p50/60Hz,1080i50/60Hz, 1080p23.97/24/25/50/59.94/60Hz.

• CVBS output: PAL,NTSC

• Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F

• Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F

• Relative Humidity: 20 ~ 90% RH (Non-condensing)

• Dimensions (mm): 90(D)x65(W)x24(H)
